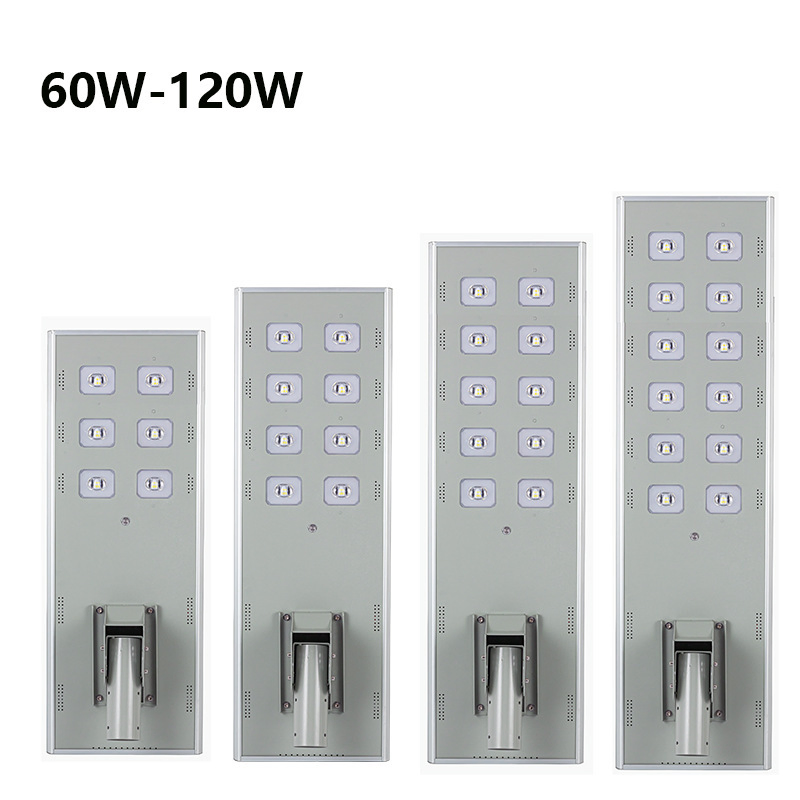

Solar street lights model M55 was made according to ISO 9001 standard, with 205Lm/W high luminous efficacy, especially for PUBLIC lighting use.

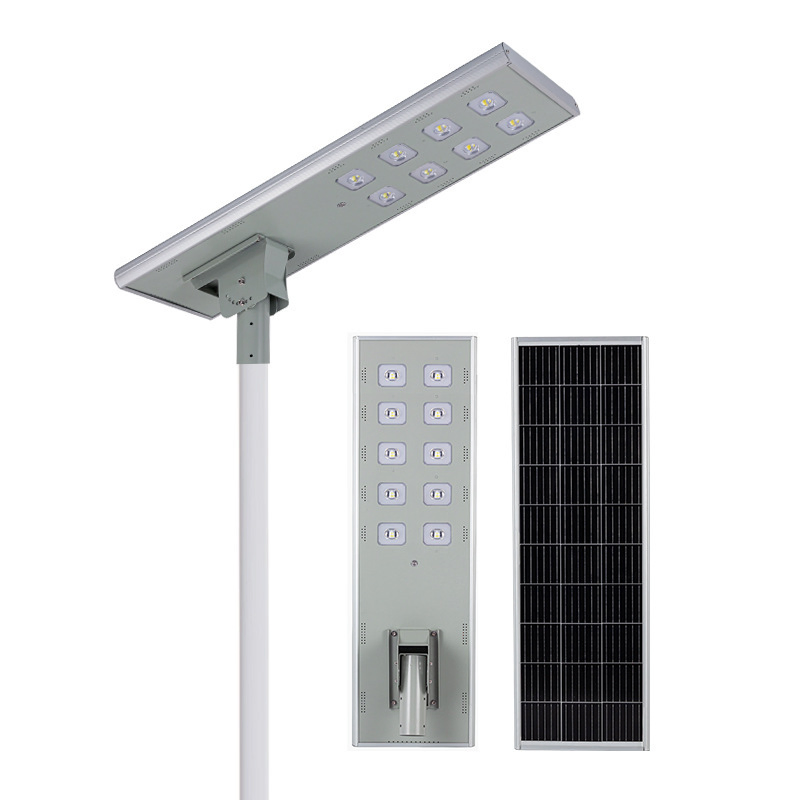

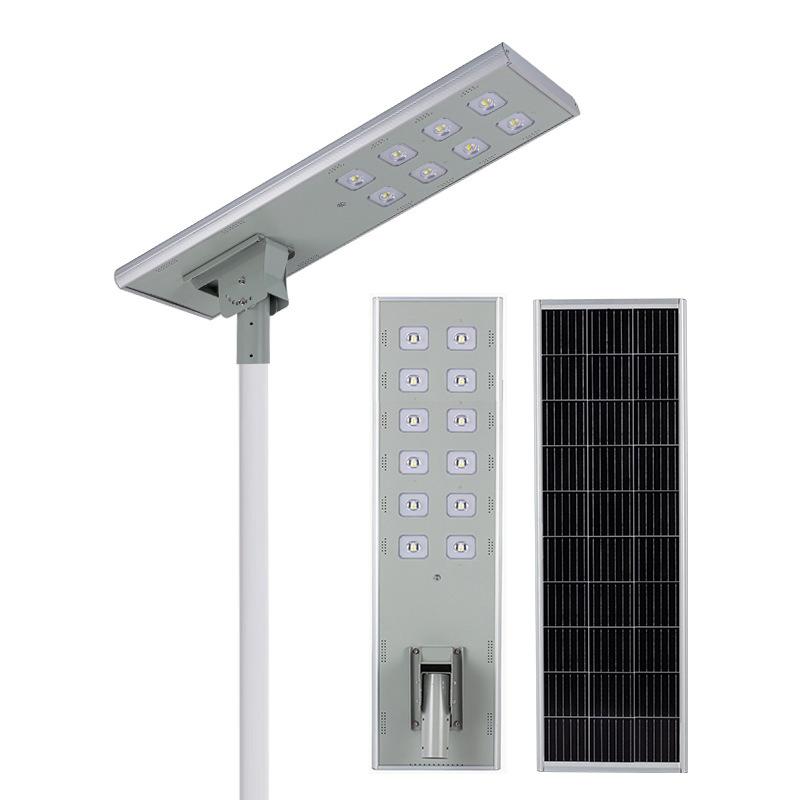

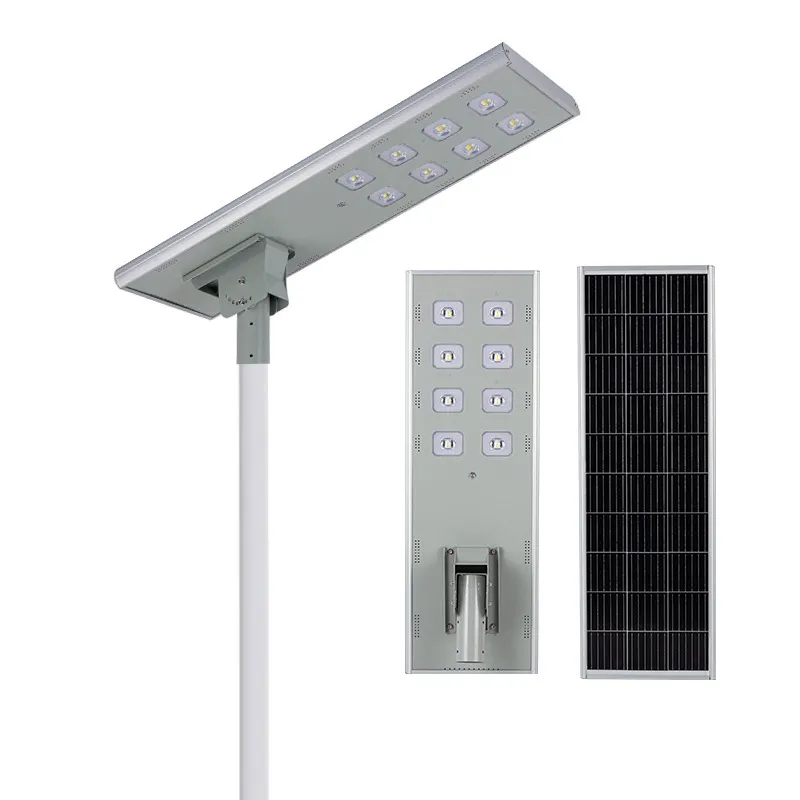

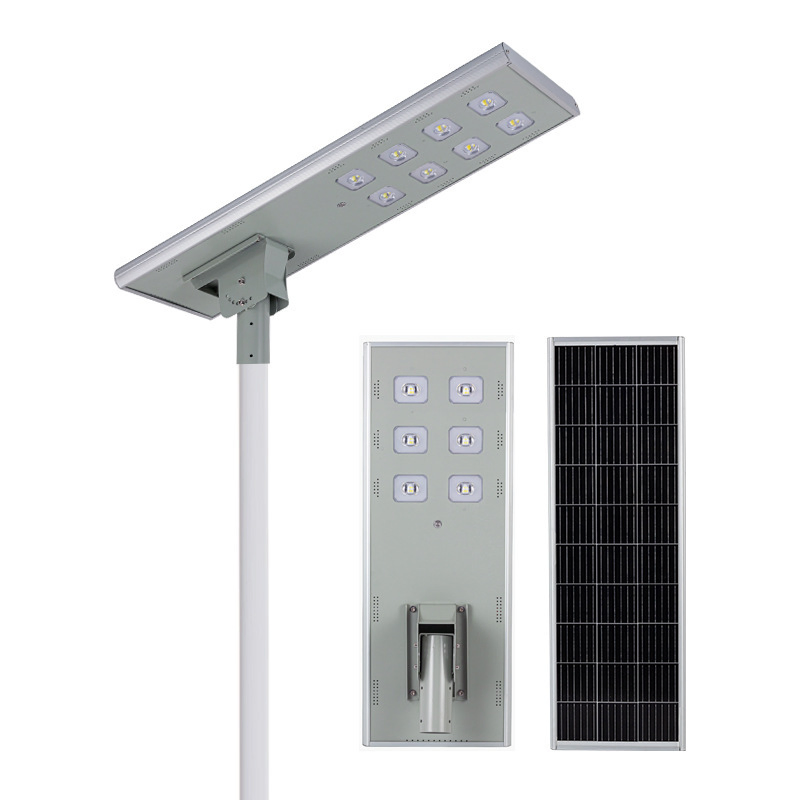

Designed by integrated fixture, with PV panel, Lithium battery, charge controller, LED components all together, which make the installation easily.
With 24% convert solar PV panel MONO type, and LiFePo4 battery, Constant current driver, MPPT charging agreement, which make the solar lights have excellent charge and discharge performance.

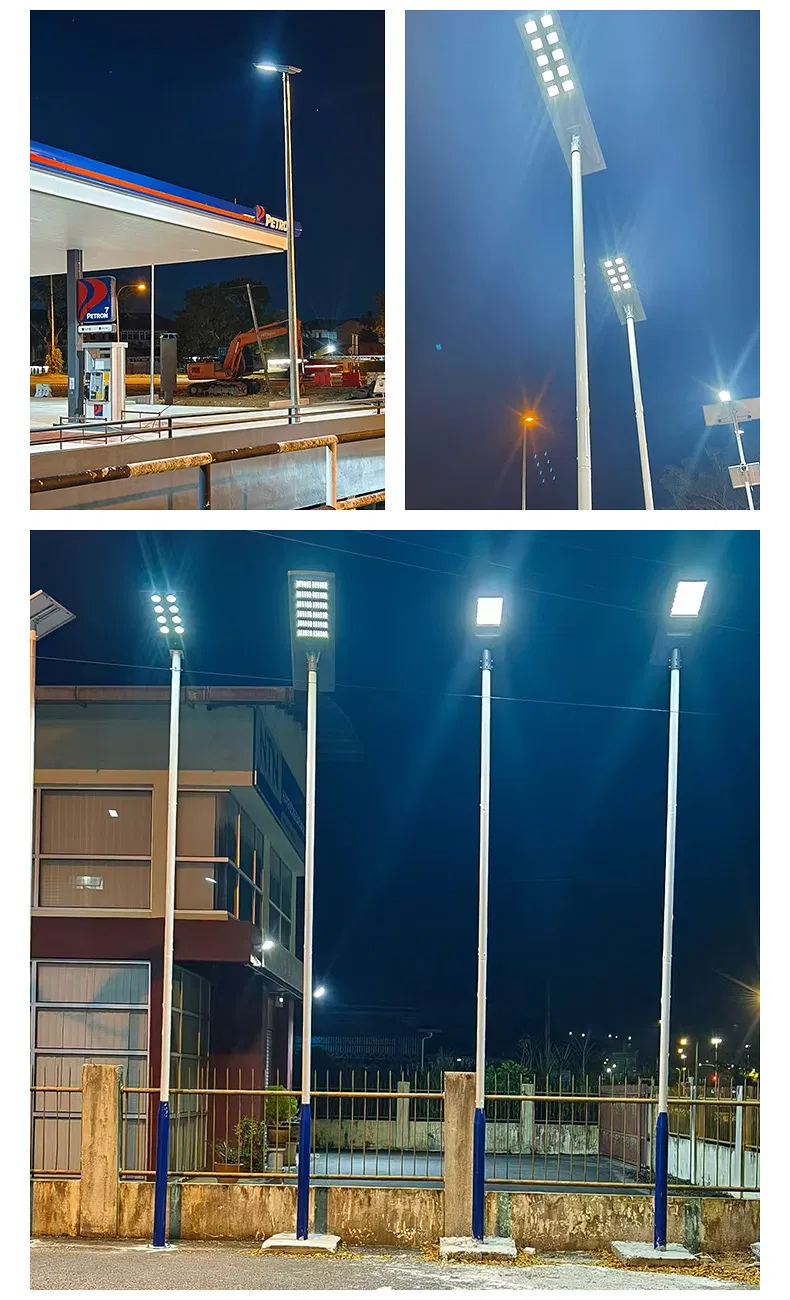

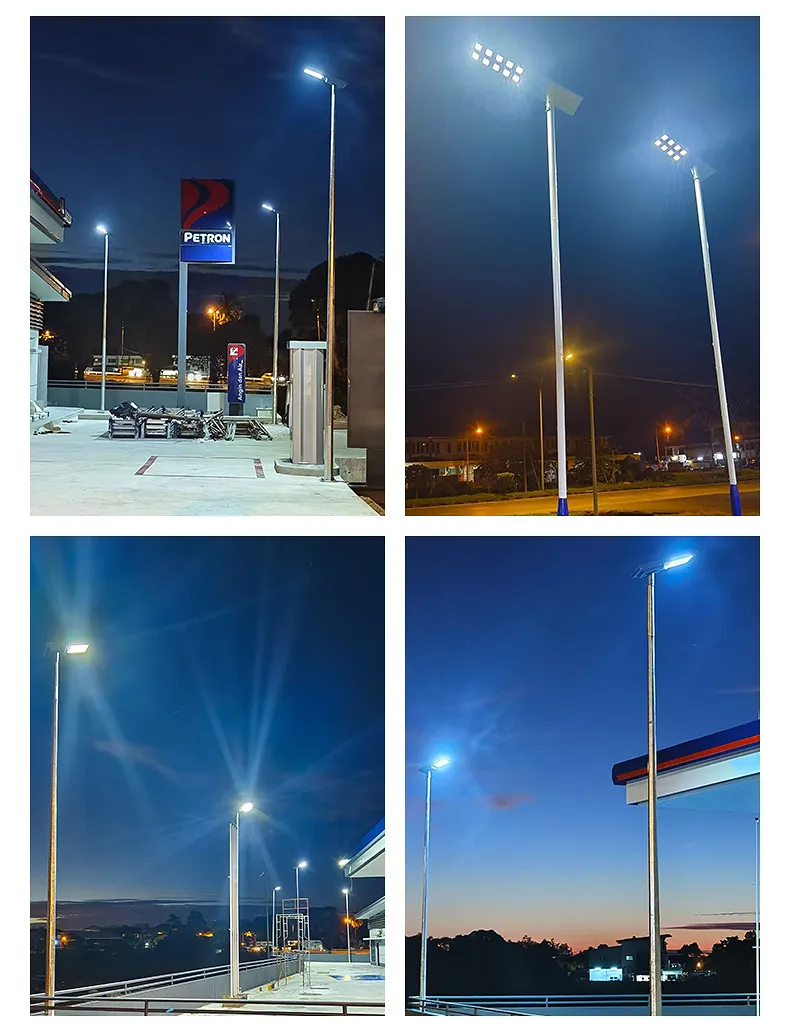

M55 model 120watts can be used for Max 12meter mounting height with luminous flux 52lx, which is strong lumens with advanced technology of LED improvement, with Type I Type II Type III Type IV Type V different optical lens which make the lights can be widely used for expressway, highway, Road, Area lighting.





| Parameter | M55-30W | M55-40W | M55-60W | M55-80W | M55-100W | M55-120W |
| Solar panel | 50Wp 18V | 60Wp 18V | 80Wp 18V | 110Wp 18V | 130Wp 18V | 150Wp 18V |
| Battery | 244Wh | 384Wh | 576Wh | 768Wh | 960Wh | 1152Wh |
| LED Chips | 3030 SMD (120pcs) | 3030 SMD (180pcs) | 3030 SMD (240pcs) | 3030 SMD (300pcs) | 3030 SMD (360pcs) | 3030 SMD (420pcs) |
| Luminous flux | 6150lm | 8200lm | 12300lm | 16400lm | 20500lm | 24600lm |
| Efficacy | 205Lm/W | |||||
| CCT | 2700k to 6500k | |||||
| Mounting Height | 5-6 meter | 6-8meter | 8-10meter | 10-12meter | 12-14meter | 14-16meter |
This model M55 solar street lights was fully certified for projects tender use. It meets the following standards:

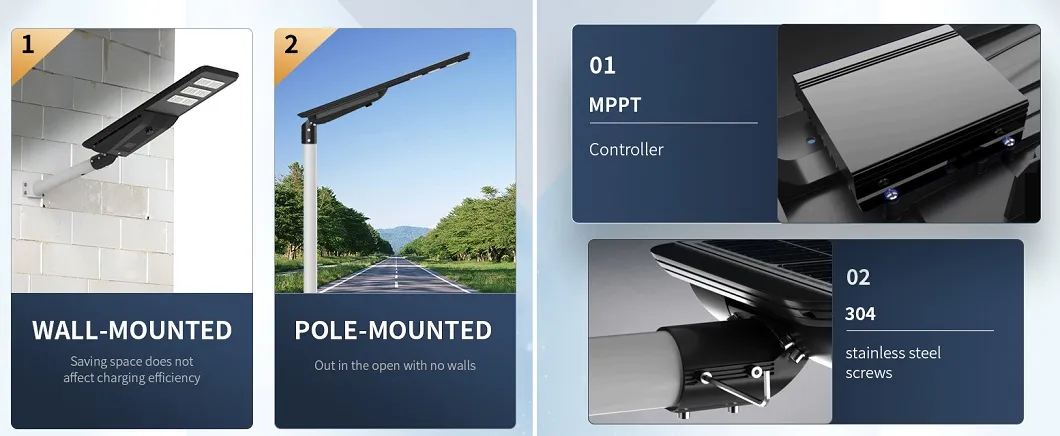

This model provide mounting tilt way, can do horizontal to vertical installation. Ideal to replace the traditional HID street lights by keeping the existing poles.
