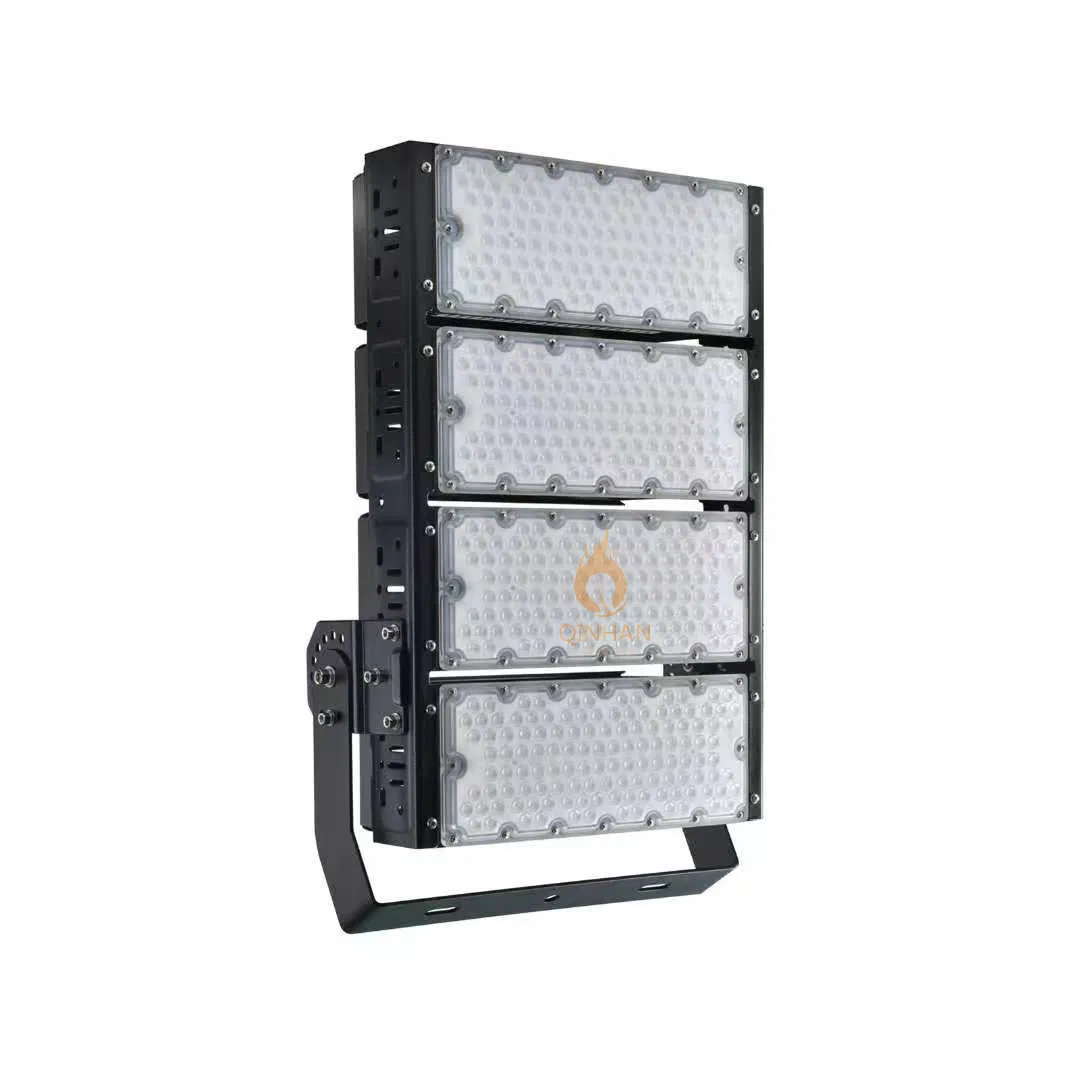

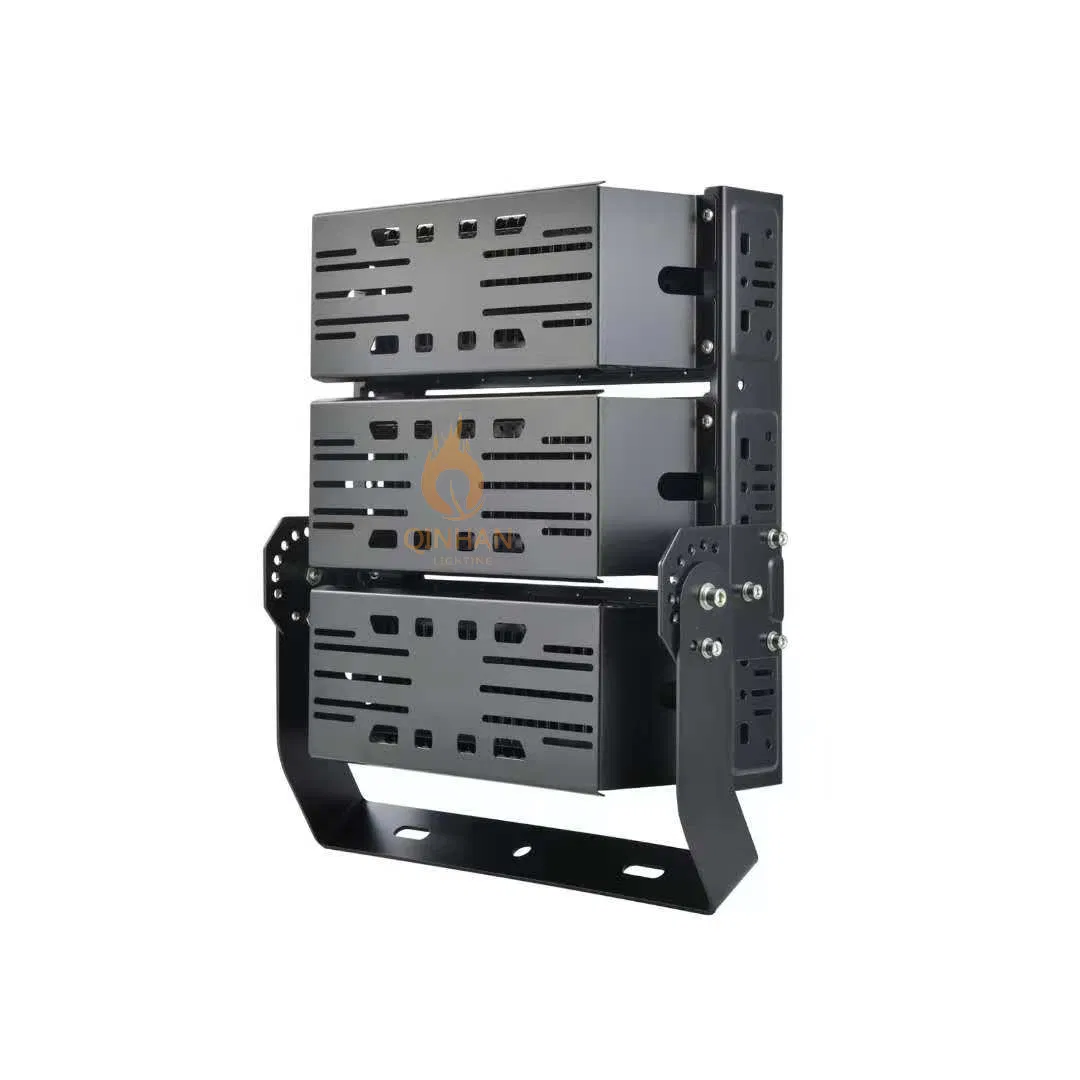

Outdoor 300W SMD LED Flood Stadium Tennis Sport Court High Mast Lighting

1 / 5

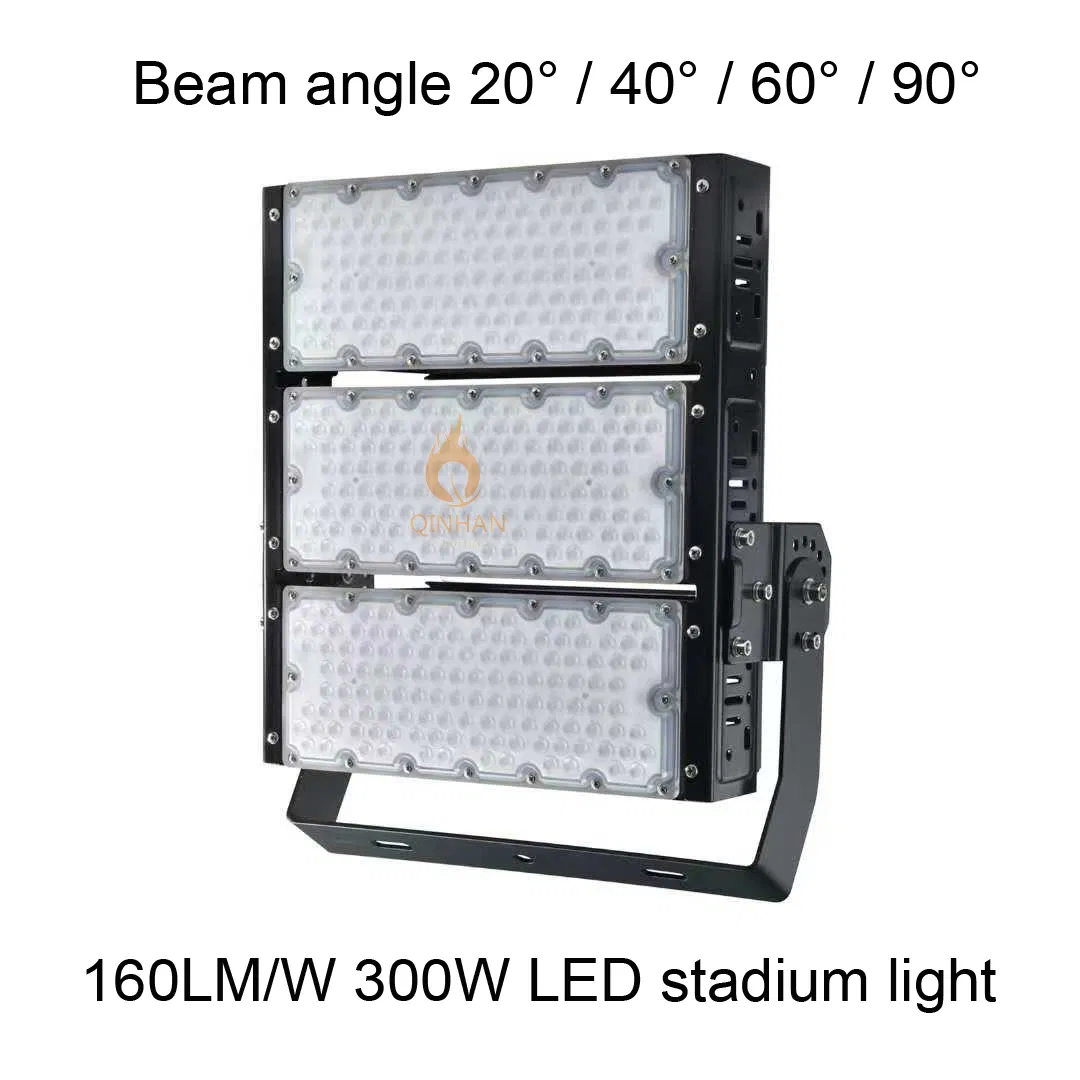

Outdoor 300W SMD LED Flood Stadium Tennis Sport Court High Mast Lighting

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.:QH-FLHN-300W

Power:300W

LED Chips:CREE

Luminous Flux:48,000lm (160lm/W)

IP Rating:IP66 Waterproof

Certification:CE, EMC, FCC, LVD, RoHS, VDE

Input Voltage:90-305V AC / 347V AC

Driver:Meanwell or Inventronics

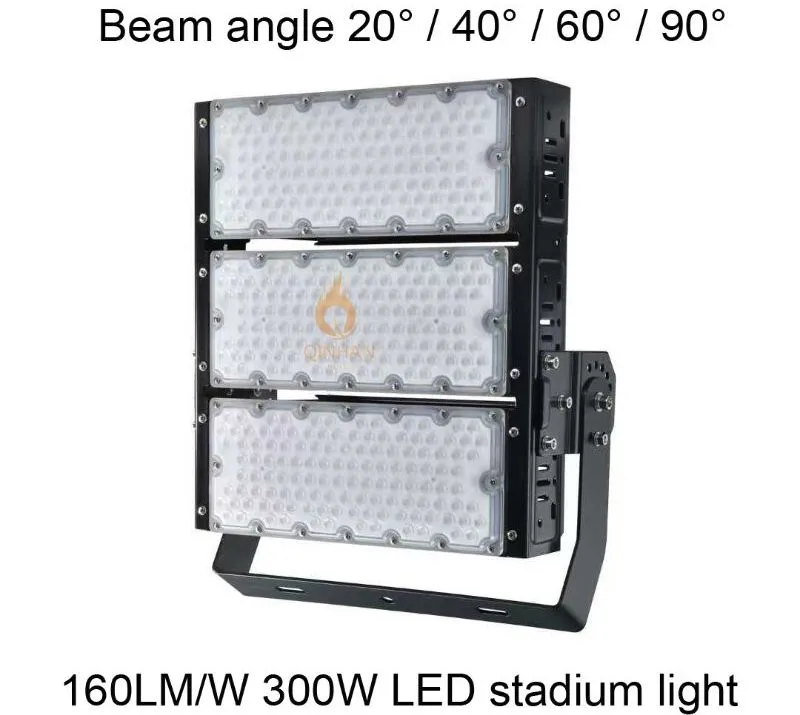

Beam Angle:20°/40°/60°/90°/140x100°/120°

Warranty:5 Years

Material:Aviation Aluminum Housing

Working Temp:-40℃ ~ +90℃

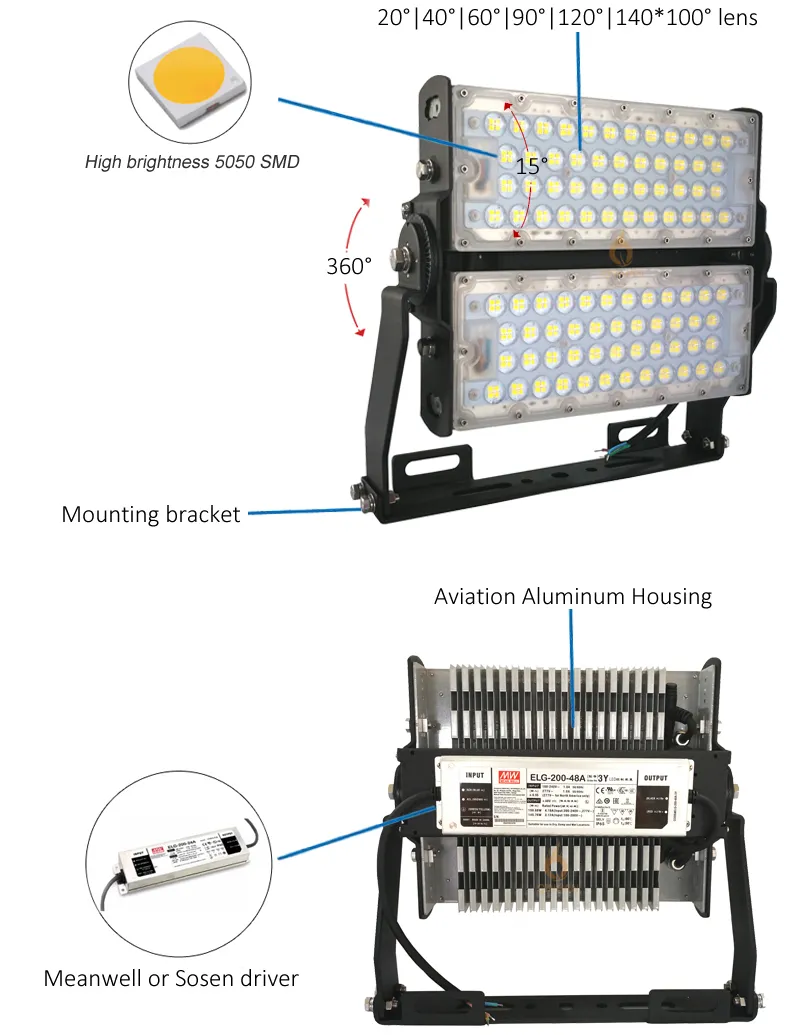

Key Features of High Power LED Stadium Light

IP66 Waterproof Rating: Superior protection for outdoor environments.

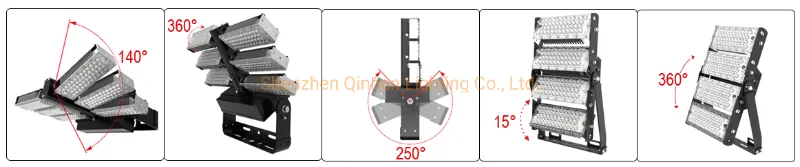

Rotatable Modules: Offers maximum customization for precise lighting angles.
High Efficiency: Industry-leading 160Lm/W efficiency utilizing 5050 SMD LEDs.
Multiple Optics: Choice of various beam angles for specific lighting requirements.
Instant Start: Flicker-free cold start and high power factor (PF > 0.97).
Long Lifespan: 50,000-hour operating life with unique heat extraction design.
Flexible Installation: Heavy duty stirrup mounting bracket; can be used as floodlight or high bay.

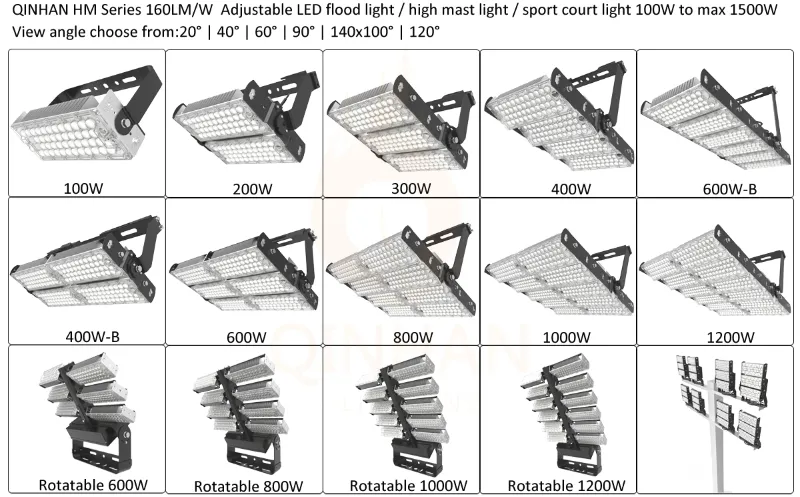

Full Series Datasheet (100W-400W)

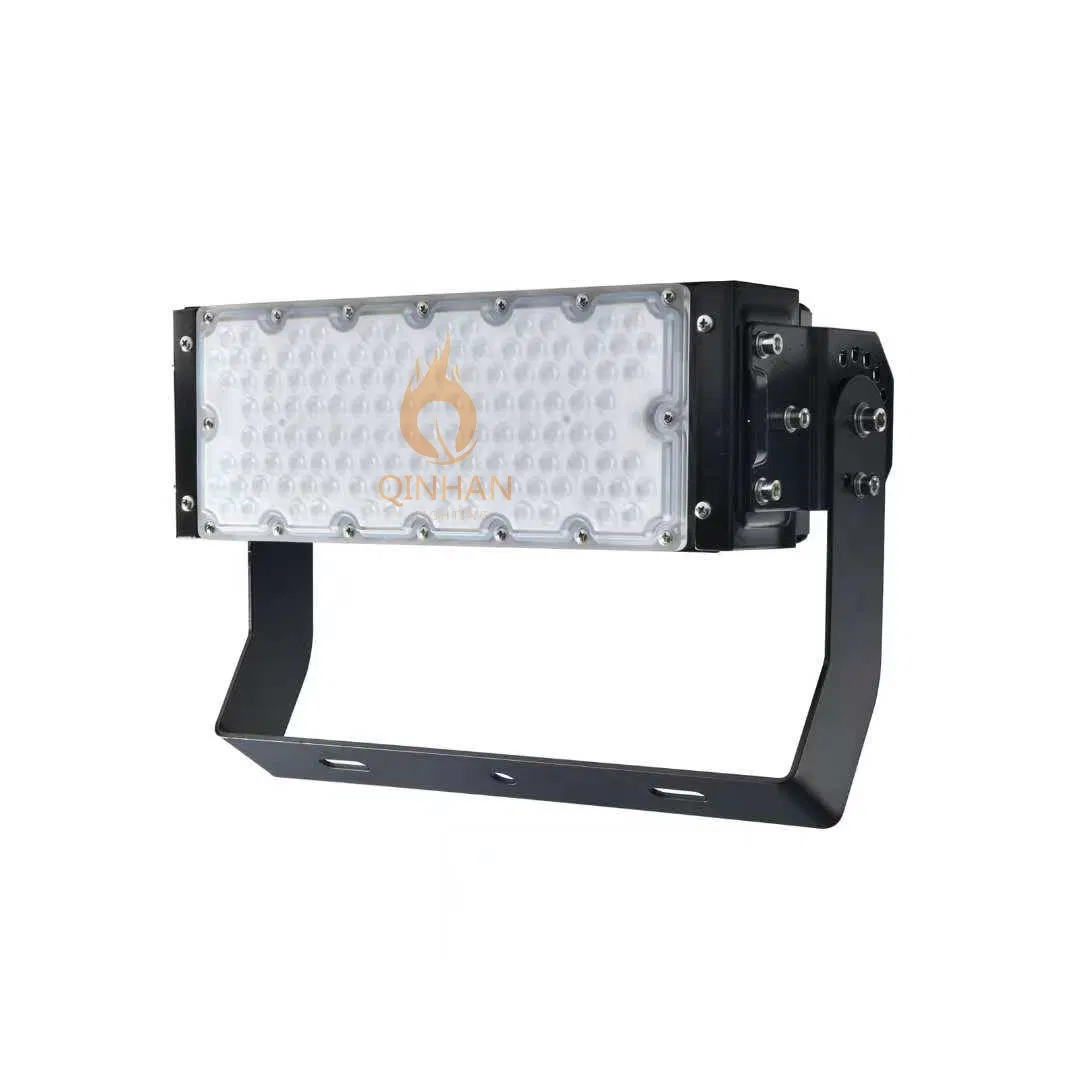

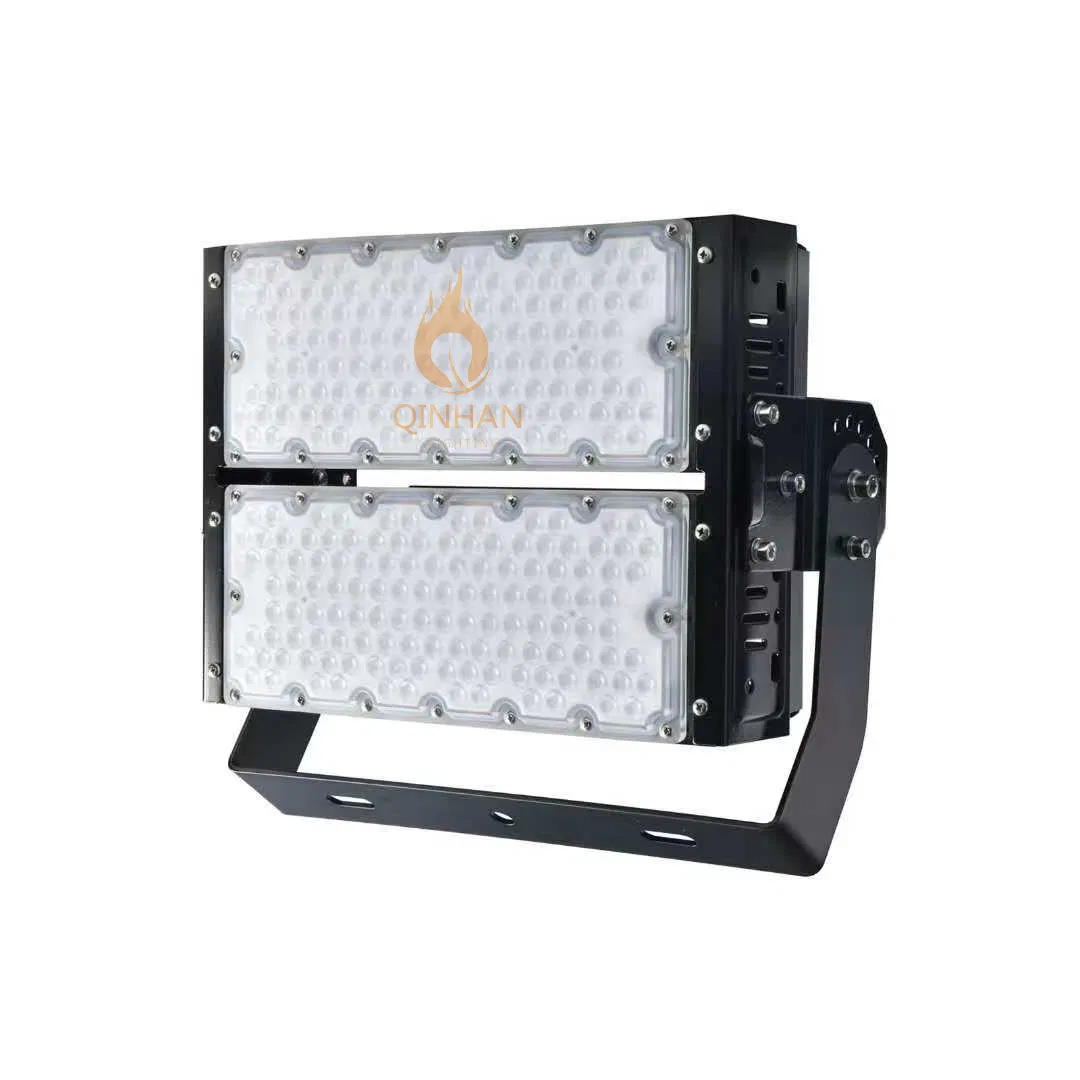

Adjustable Angle 100W-400W LED High Mast Light
Model	QH-FLHM-100W	QH-FLHM-200W	QH-FLHM-300W	QH-FLHM-400W
Power	100W	200W	300W	400W
Flux	150-160LM/Watt
LED Source	5050 SMD
LED Qty	184pcs	368pcs	552pcs	736pcs
Input Voltage	90-305V AC 50/60Hz
CCT	3000K, 4000K, 5000K, 6500K
Weight	3.1Kg	6.5Kg	7.5Kg	9.5Kg

High Power Series Datasheet (600W-1200W)

Adjustable Angle 600W-1200W LED High Mast Light
Model	QH-FLHM-600W	QH-FLHM-800W	QH-FLHM-1000W	QH-FLHM-1200W
Power	600W	800W	1000W	1200W
LED Qty	1104pcs	1472pcs	1840pcs	2208pcs
Weight	15.5Kg	21.5Kg	24Kg	31.5Kg
Lifespan	>50,000 Hours
Material	Aviation Aluminum Housing
CRI	CRI > 80

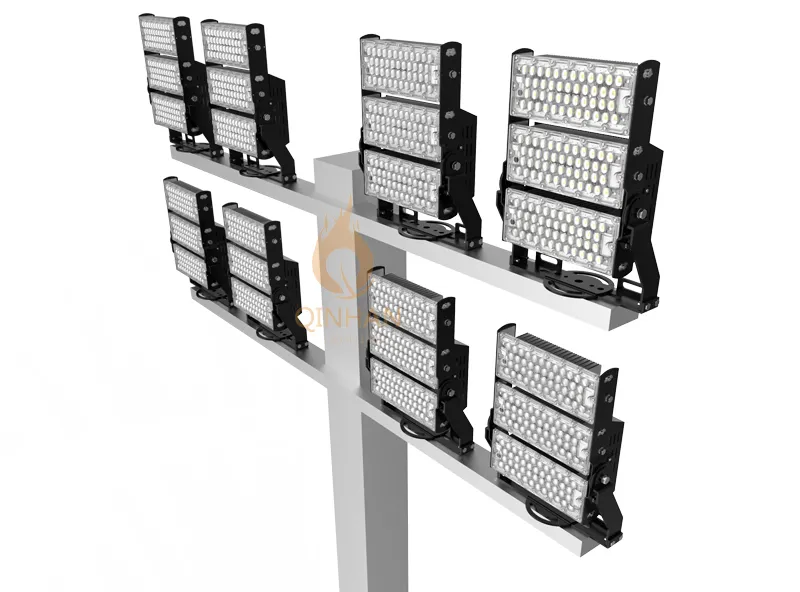

Wide Applications

This professional flood lighting solution is perfect for: Squares, Parks, Ports, Airports, Shipyards, Container Wharfs, Golf Courses, and Football Fields.

Frequently Asked Questions

Q1: Can we customize our brand logo on the product and packaging? A: Yes, we provide full OEM services. We can print or emboss your logo on the product and design custom branded boxes for your orders.

Q2: What is the warranty period for these LED flood lights? A: We provide a standard 5-year warranty on our professional LED high mast lighting series.

Q3: How is the quality control managed at your facility? A: Quality is our priority. We maintain strict quality control from the beginning to the end of production. Our products have gained CE, DLC, ROHS, FCC, and ISO9001 certifications.

Q4: What happens if I receive a defective light? A: We stand by our products. If any lights fail to work upon receipt, we will provide the same quantity of working lights as compensation in your next order.

Q5: Which components do you use to ensure high quality? A: We use only top-tier components, including CREE LED chips and Meanwell or Sosen drivers, to ensure industry-leading 160Lm/W efficiency and long-term reliability.

Q6: What are the accepted payment terms? A: We accept T/T (Telegraphic Transfer), L/C at sight, and Western Union.
