Basic Information
Model NO.
LCD-FA-600-LNXX-OS
Projection Distance
1000m - 5000m
Application
Park, Square, Factory, Garden, Fishing Boat, Crane, Marine, Offshore Rig
LED Chips Brand
Osram / Cree / Bridgelux
Marine Grade
Anti-Salt Water Coating, 10 Years Warranty
Input Voltage
85-265V / 24V DC
💡

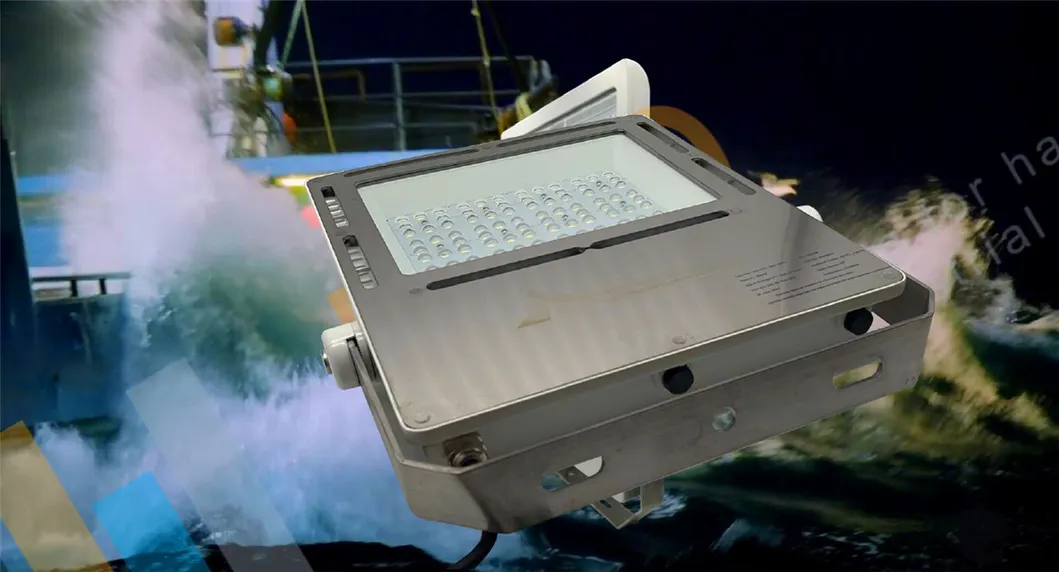

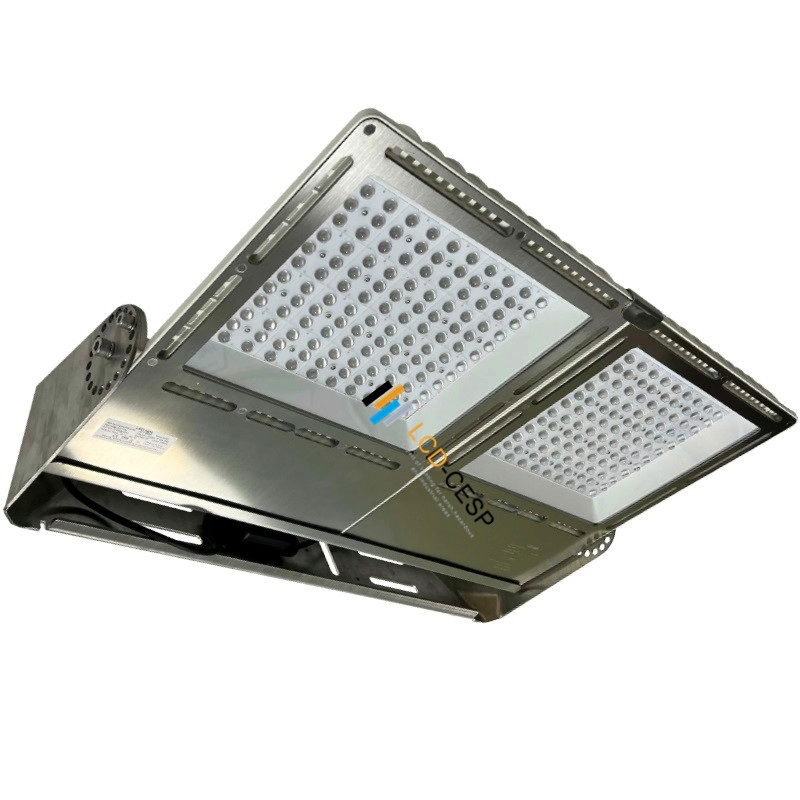

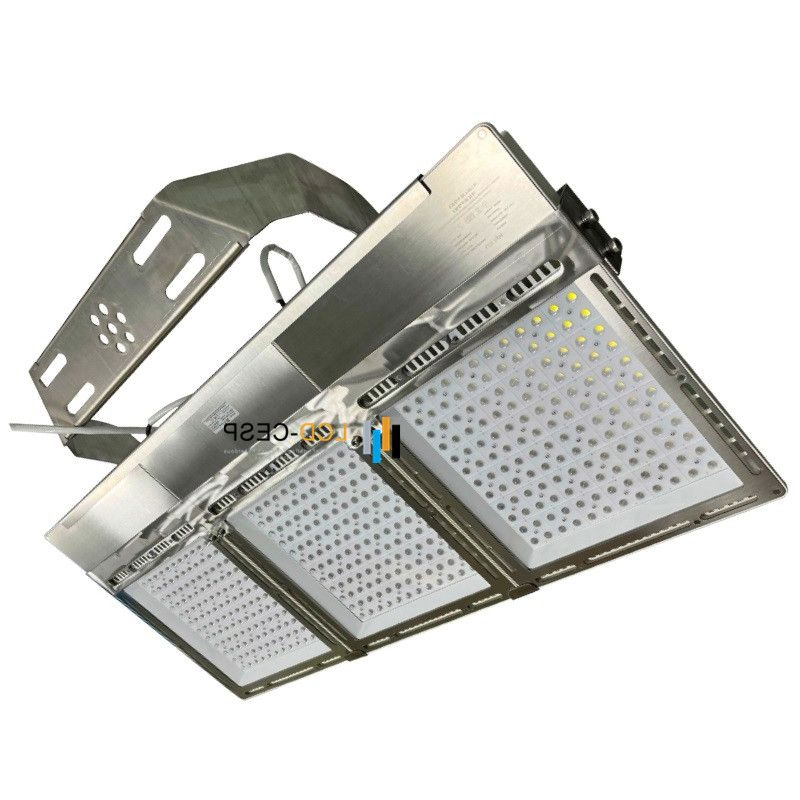

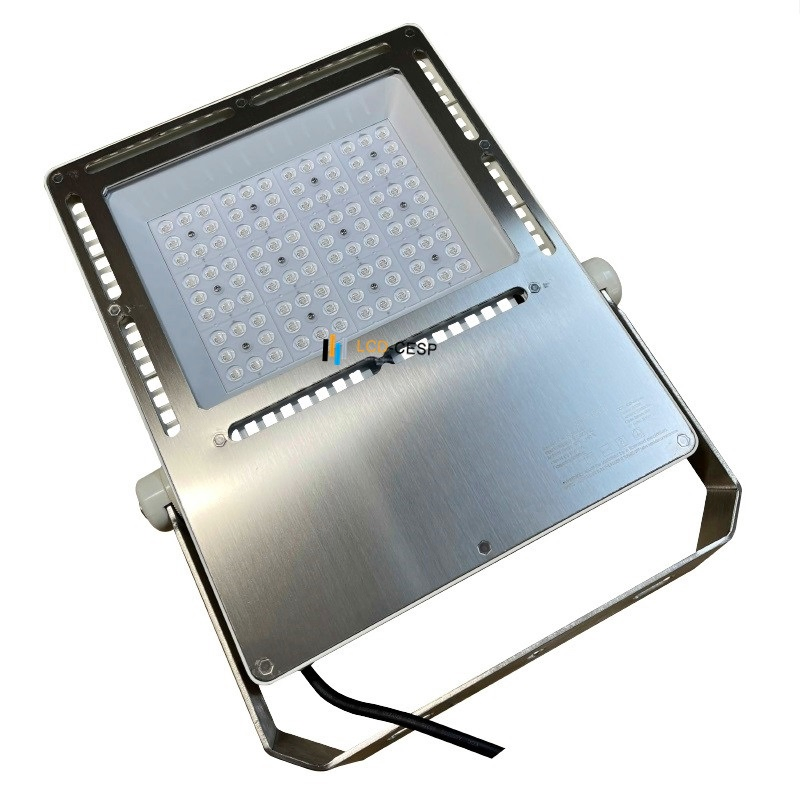

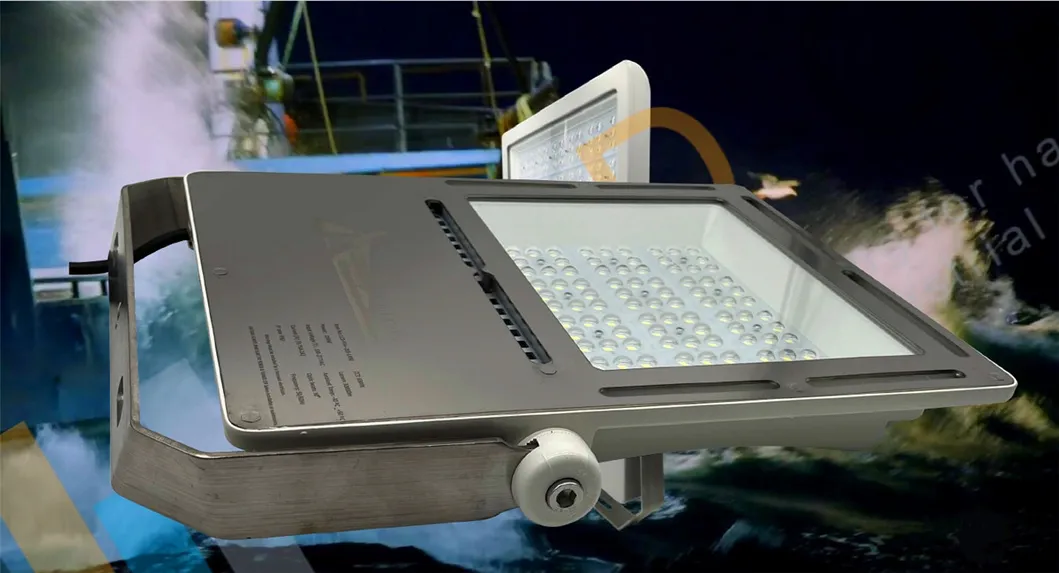

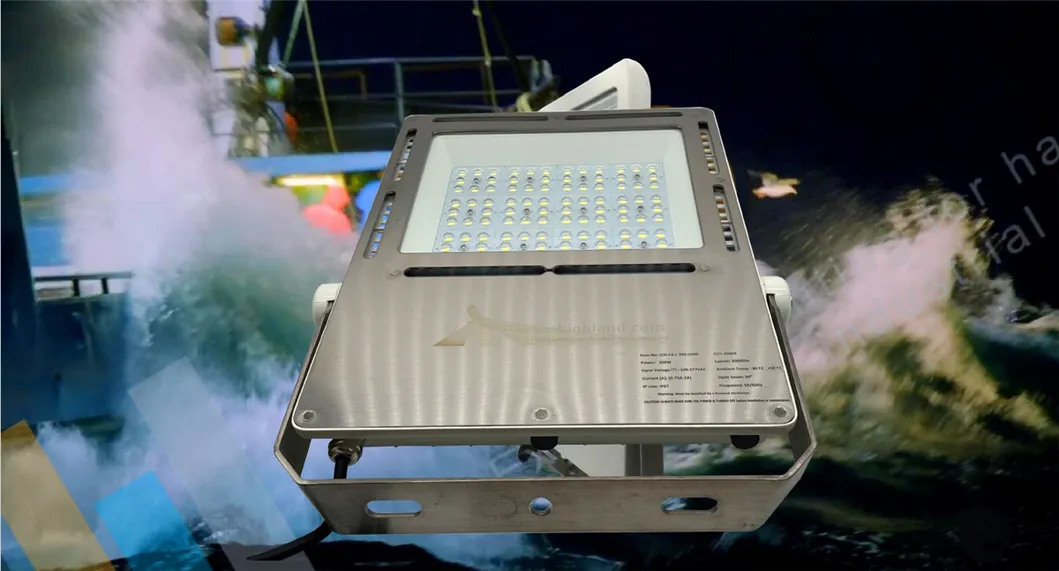

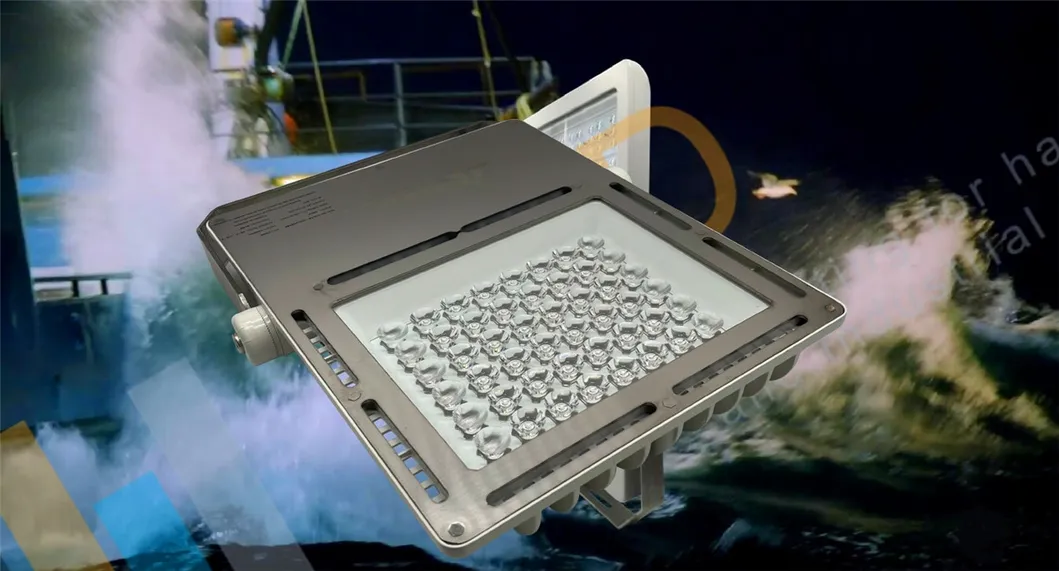

FA Series LED Floodlights
High-Performance Industrial & Marine Lighting Solutions designed for extreme durability and powerful illumination.
Key Features
- Wide Power Range: From 50W to 1200W, suitable for small spaces to large industrial facilities.

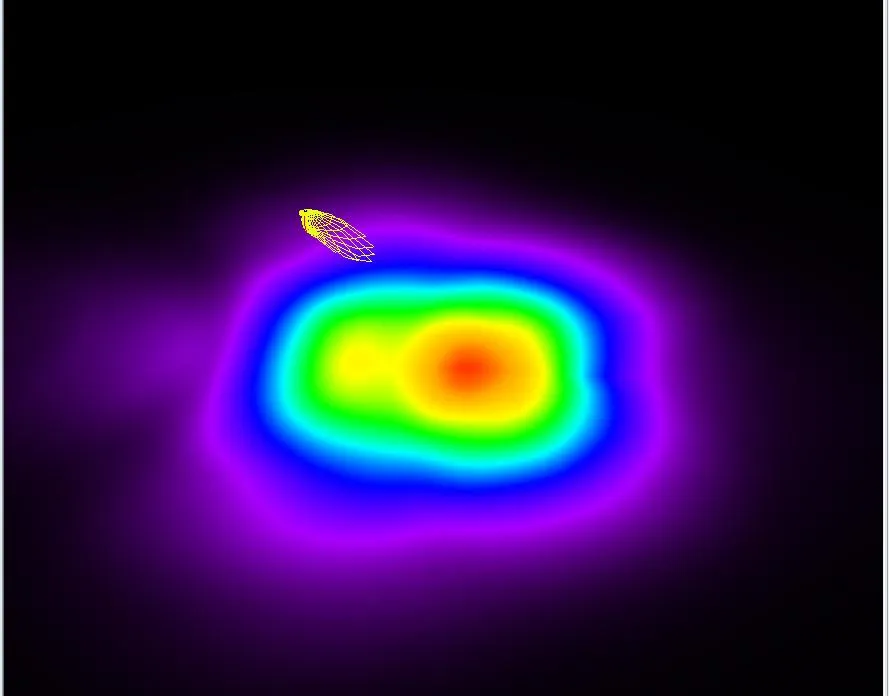

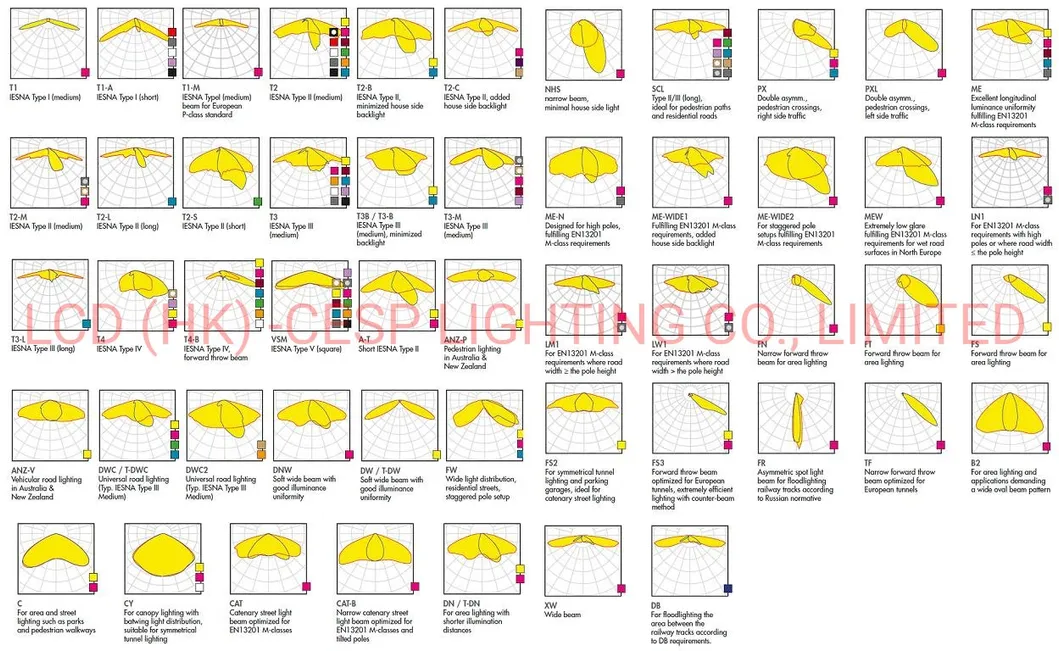

- Versatile Optics: Over 30 beam angle options (4°, 8°, 15°, 30°, 60°, 90°, 120°, etc.) for precise distribution.

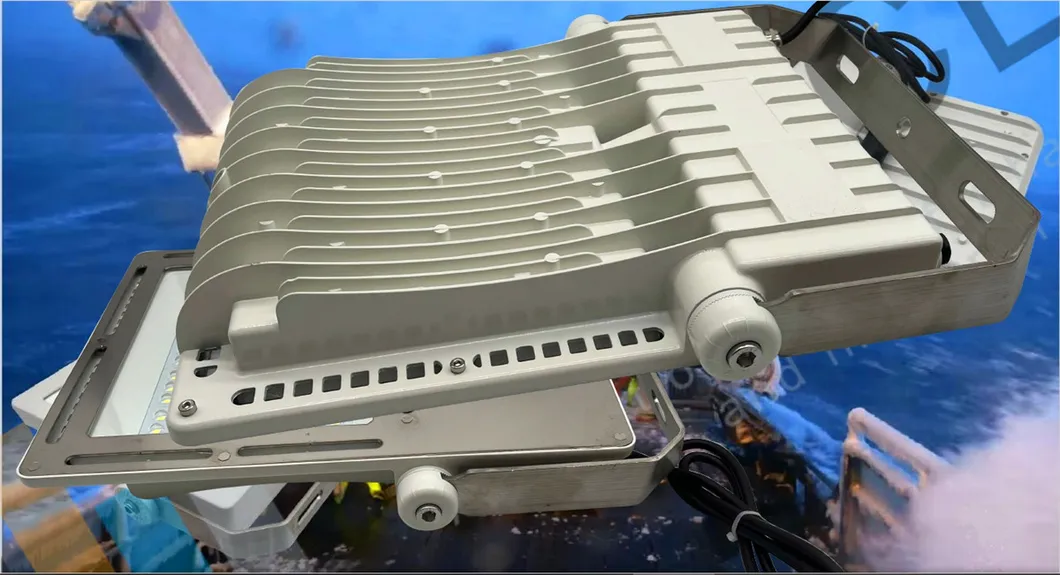

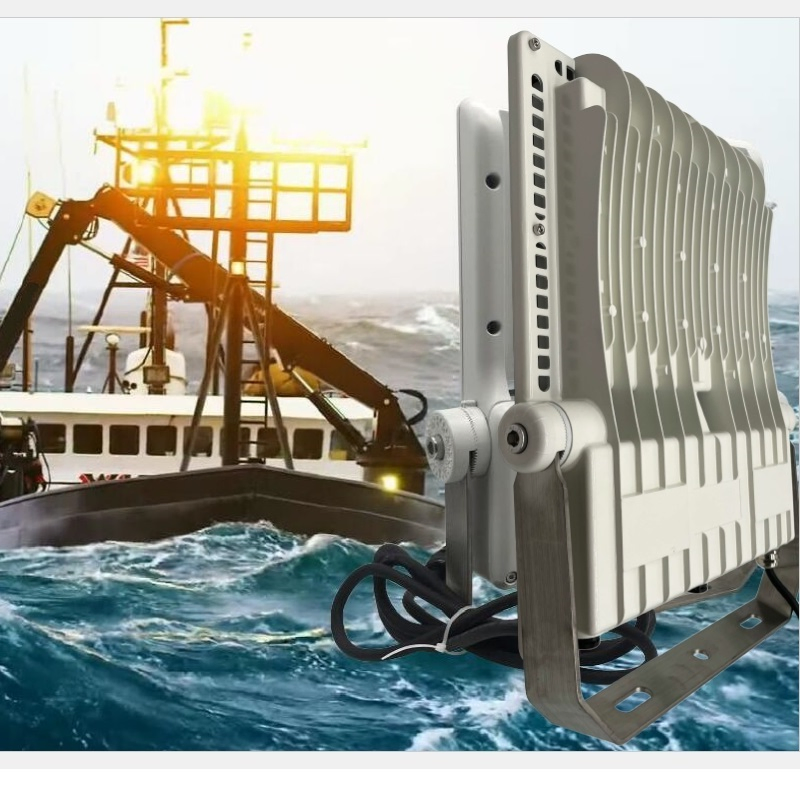

- Corrosion-Resistant: Die-cast aluminum housing with marine-grade powder coating.

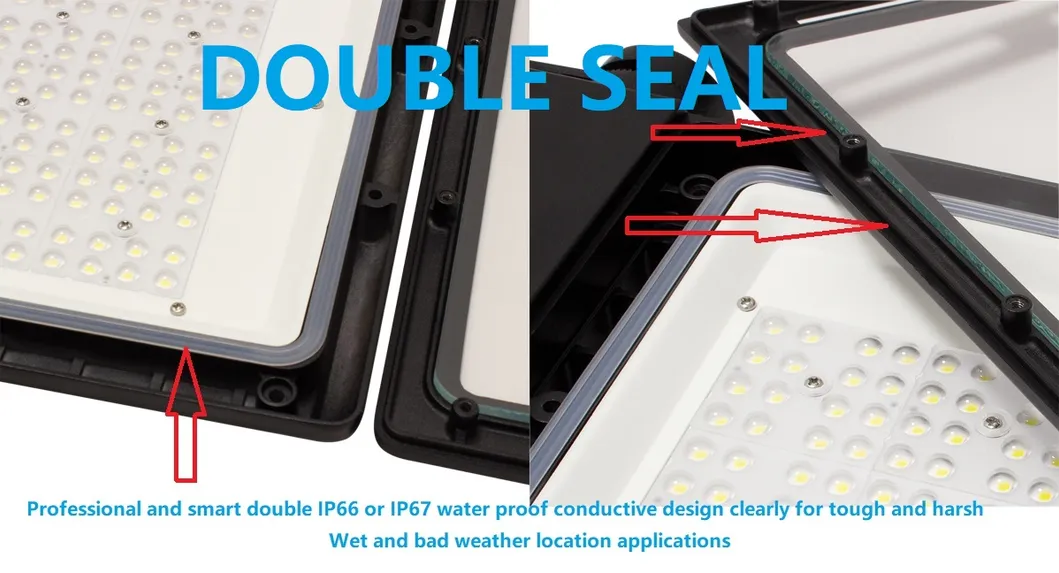

- High Protection: IP66/IP67/IP68 waterproof design for harsh environments.
- Premium LED Technology: Equipped with Cree, Luxeon, or Bridgelux SMD3030/5050 LEDs for long lifespan.
- Flexible Installation: Adjustable brackets (+/-160°) and pole adapters available.
Applications

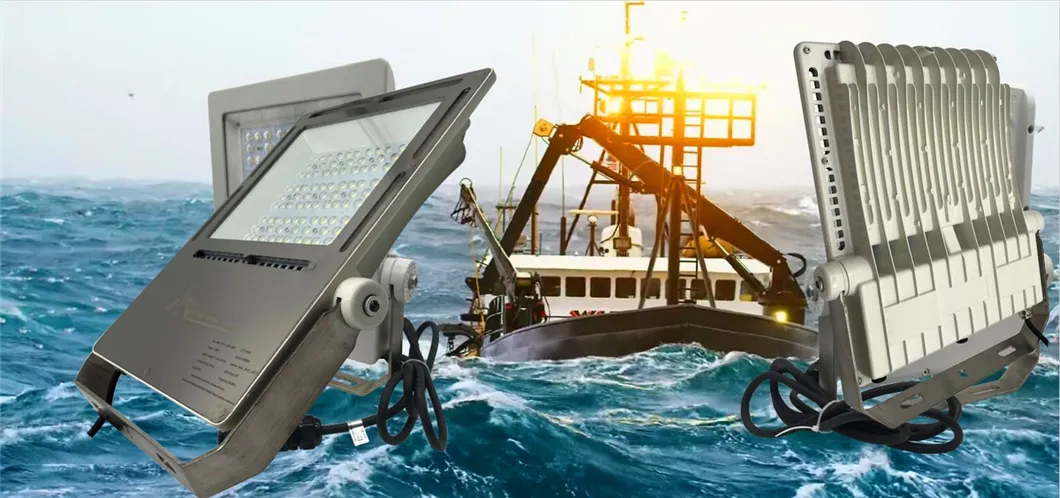

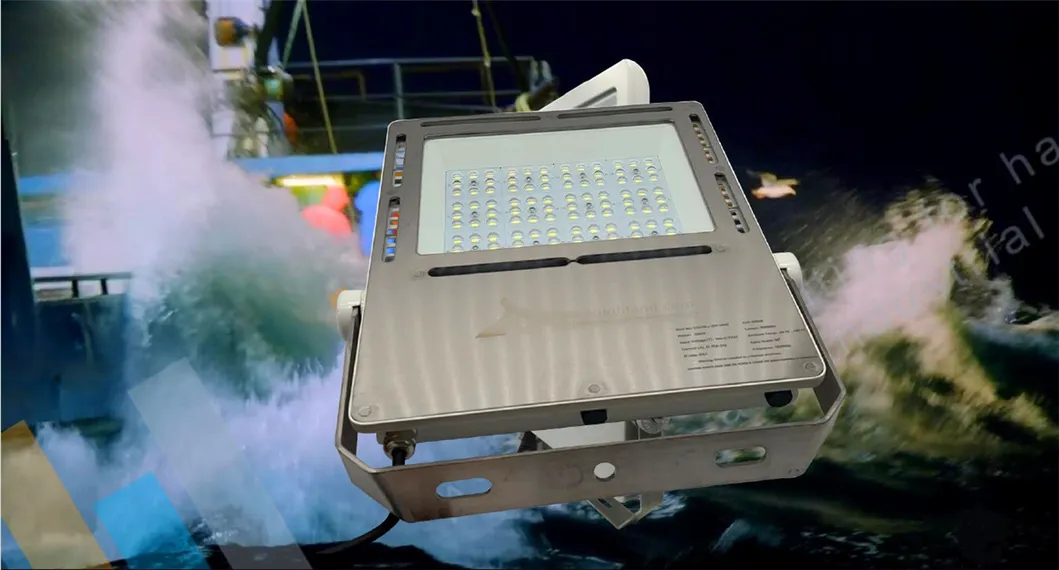

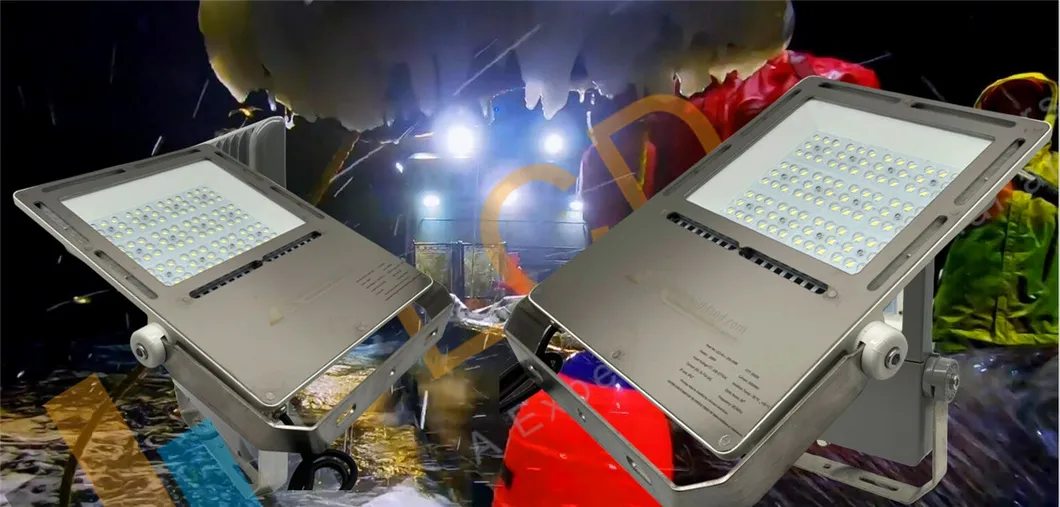

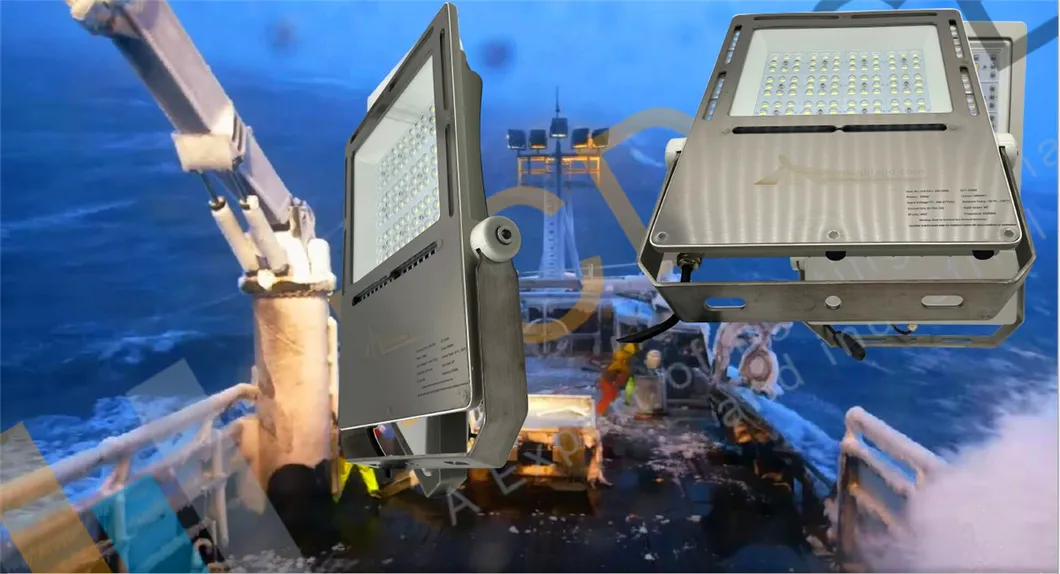

- Marine deck and fishing boat lighting (Crabbing, Trawler boats)
- Port terminals, shipyards, and dockside illumination
- Industrial facilities, warehouses, and logistics hubs
- Sports stadiums, parking lots, and municipal projects
- Explosion-proof environments (Oil & Gas, Chemical plants)
Technical Specifications (100W Sample)
| Parameter |
Specification |
Parameter |
Specification |
| Brightness |
15000lm |
Halogen Equivalent |
600W-800W |
| Color Temp |
2700K-6500K |
Beam Angle |
15°, 30°, 60°, 90°, 120° |
| Input Voltage |
100-305V AC |
Power Factor |
> 0.95 |
| Material |
Tempered Glass, Aluminum |
Warranty |
5-7 Years |
Dimensions & Weight
| Item Name |
Dimensions (AxBxC MM) |
Weight (KG) |
| FA-085/105/153 Series |
389.2x296.7x57 |
3.4 |
| FA-205 Series |
436.6x345.7x57 |
4.8 |
| FA-255 Series |
436.6x345.7x57 |
7.2 |
| FA-305/353 Series |
582x385x60 |
7.5 |
Professional Solutions
Frequently Asked Questions
Are you a trading company or a factory?

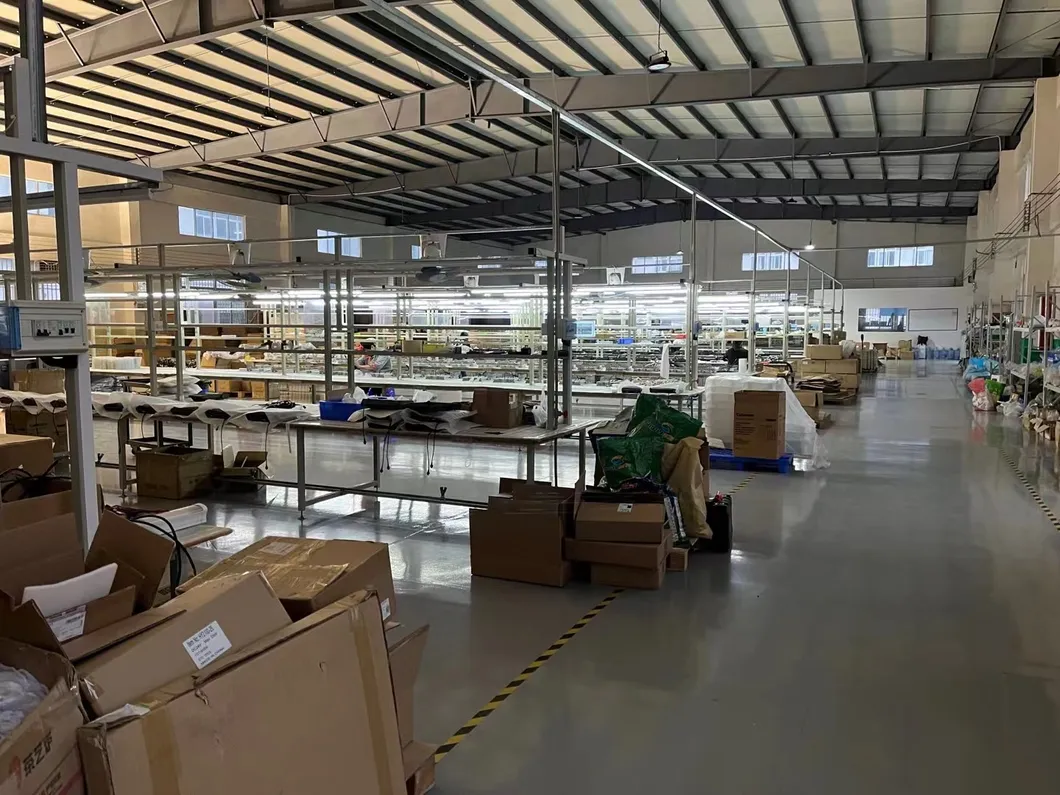

We are a specialized manufacturing facility established in 2010, operating under ISO9001 quality standards and audited by TUV.
What is the typical lead time for orders?
Sample orders generally take 3-5 days, while bulk industrial orders are typically fulfilled within 7-15 days.
How do you ensure the quality of your LED floodlights?

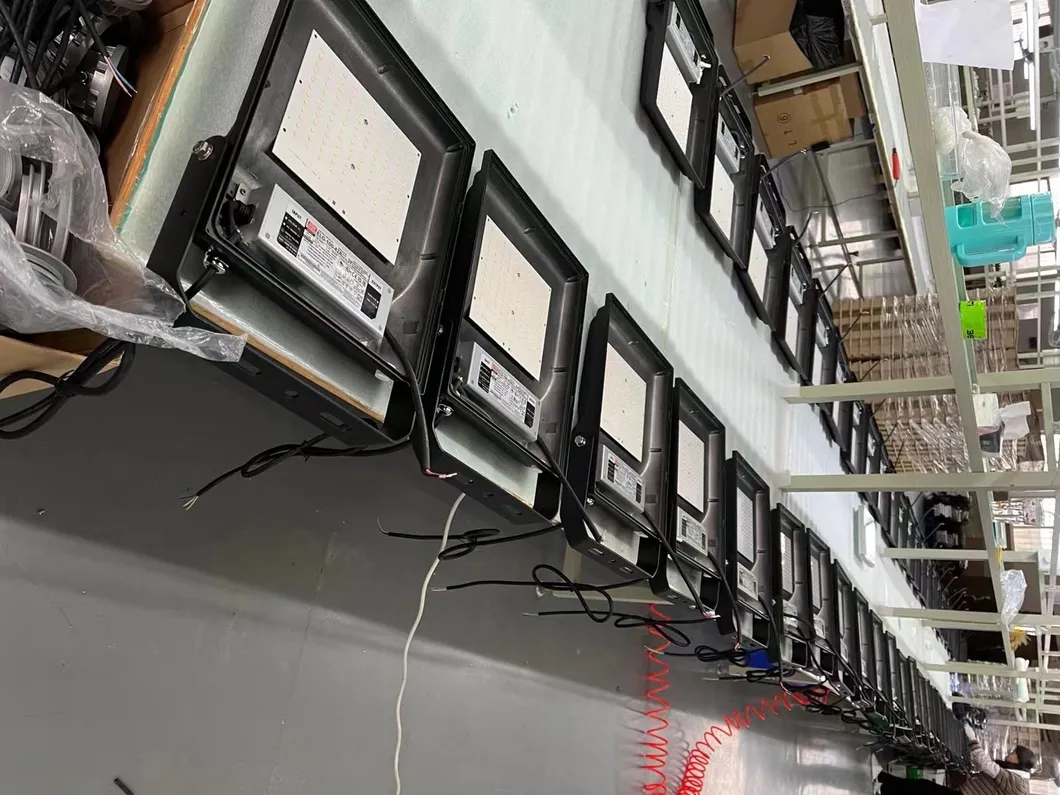

Every unit undergoes rigorous testing, including raw material inspection, waterproof tests, functional tests, and a comprehensive burn-in process before shipping.
Do you offer dimming or sensor options?
Yes, our floodlights are compatible with 0-10V, DALI, and PLC dimming systems. Motion sensors and photocell "Dusk to Dawn" sensors are available upon request.
What kind of warranty is provided for marine grade lights?
Our FA Series features anti-salt water coating and is backed by a reliable 5 to 7-year warranty, with a housing lifespan of up to 10 years.
Can these lights handle extreme weather and voltages?
Absolutely. They support wide voltage inputs (80-600VAC or 100-800VDC) and feature IP67/IP68 ratings with surge protection for the harshest environments.
