Product Description

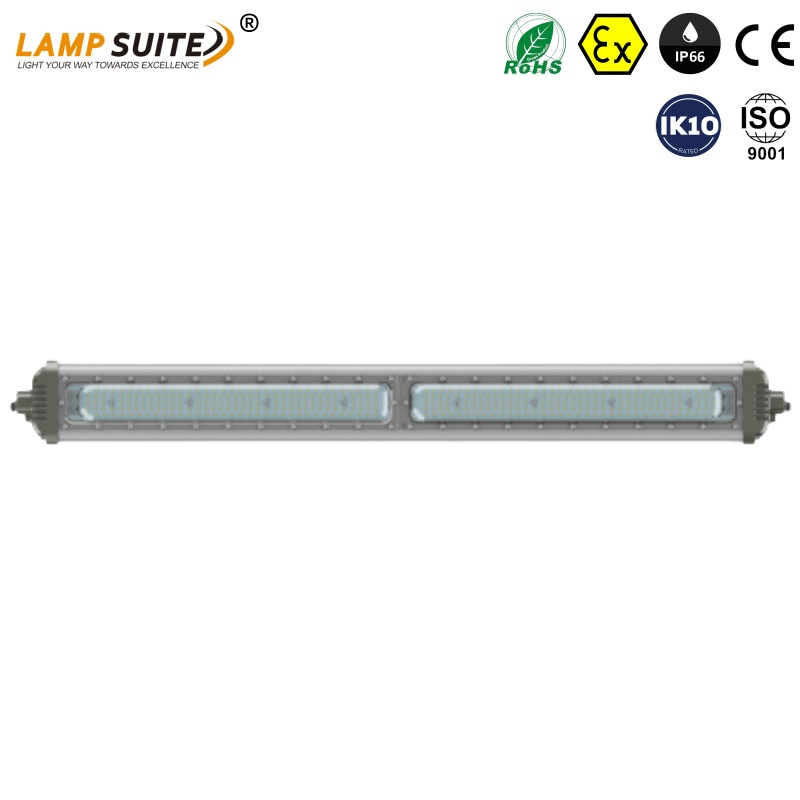

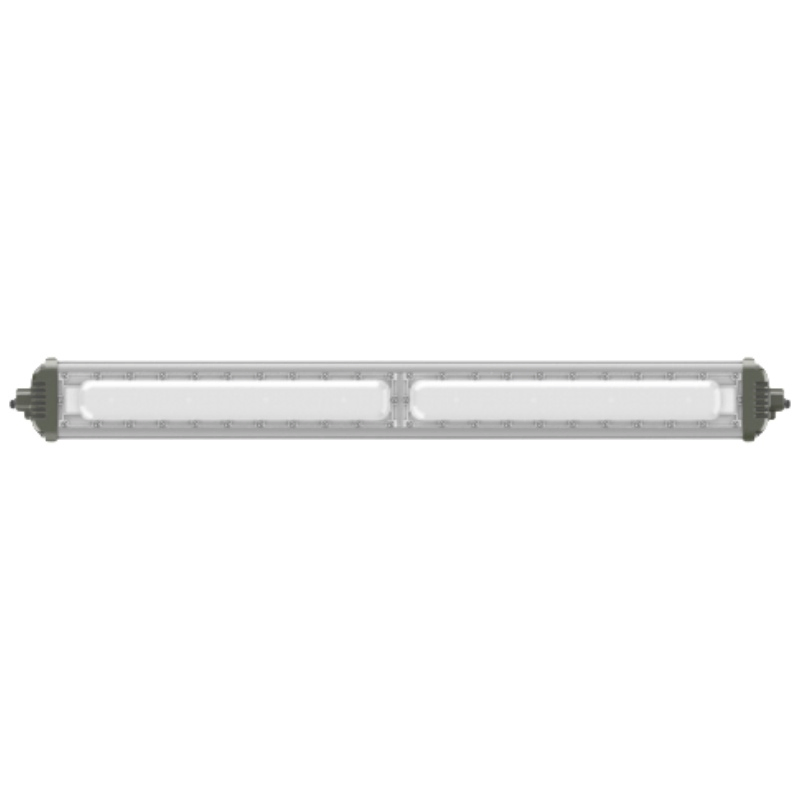

ATEX Heavy-Duty Emergency LED Explosion Proof Batten Light

LED Explosion Proof Batten Light
Basic Information
Model NO.:MXEL-8192
Irradiated Area:≥30m²
Input Voltage:220v
Power:20-120W
Color Temp:3000K-6500K
LED Chips:CREE
Certification:CCC, CE, RoHS, ATEX, ISO9001
Protection Grade:Exnriict6GB / IP66
Life Hour:≥ 100,000 hours
Warranty:5 Years
Product Parameters
MODEL RATED POWER LED QTY SIZE WEIGHT
MXEL-8192-300 20-30W 70pcs 335 x 125 x 77mm 1.7Kg
MXEL-8192-600 40-60W 120pcs 635 x 125 x 77mm 3.2Kg
MXEL-8192-1200 70-120W 240pcs 1143 x 125 x 77mm 6.2Kg
Core Features

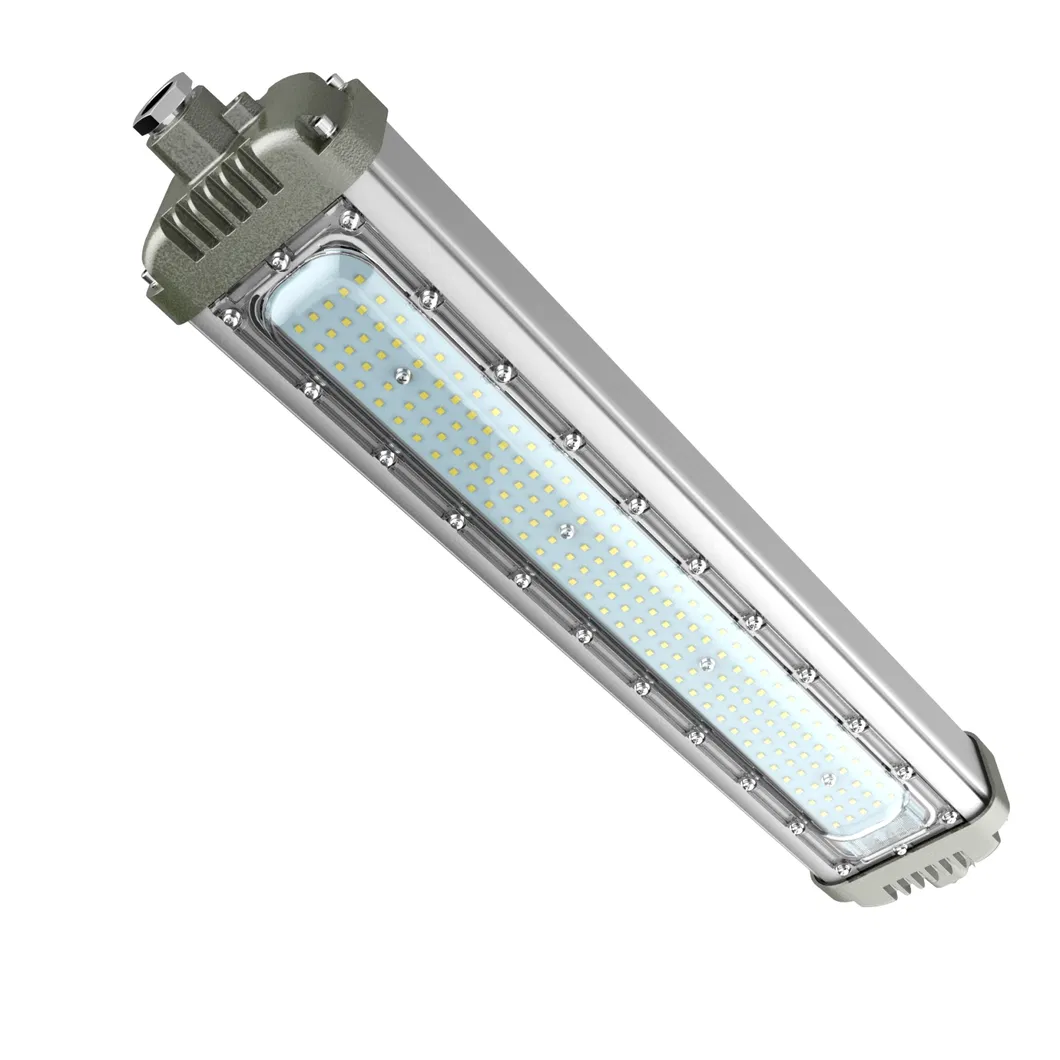

  • High-Quality Optical Cover: Made of high-strength, optical-grade PC with 95%-98% light transmittance. Provides uniform, soft, and anti-glare illumination.
  • Superior Heat Dissipation: One-piece extruded aluminum radiator ensures tight structure and superior thermal conductivity.
  • Explosion-proof Structure: Complies with national standards, offering reliable explosion-proof performance for hazardous environments.

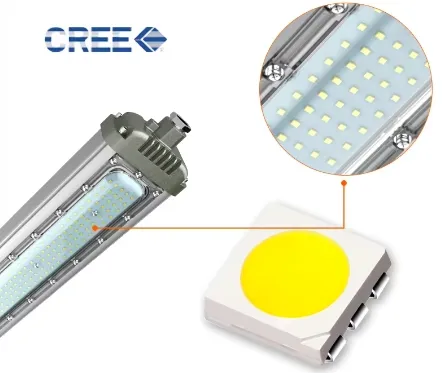

  • Premium Electrical Components: Uses top-tier CREE LED chips for high efficiency and constant current output with protection against short-circuits.
  • Robust Protection: Anodized radiator and electrostatic-sprayed housing offer high corrosion, water, and dust resistance (IP66/WF2).

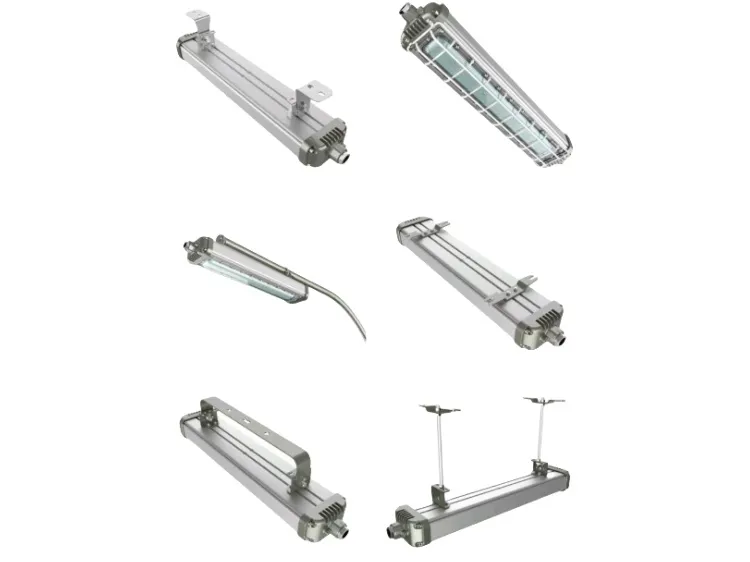

Mounting & Applications

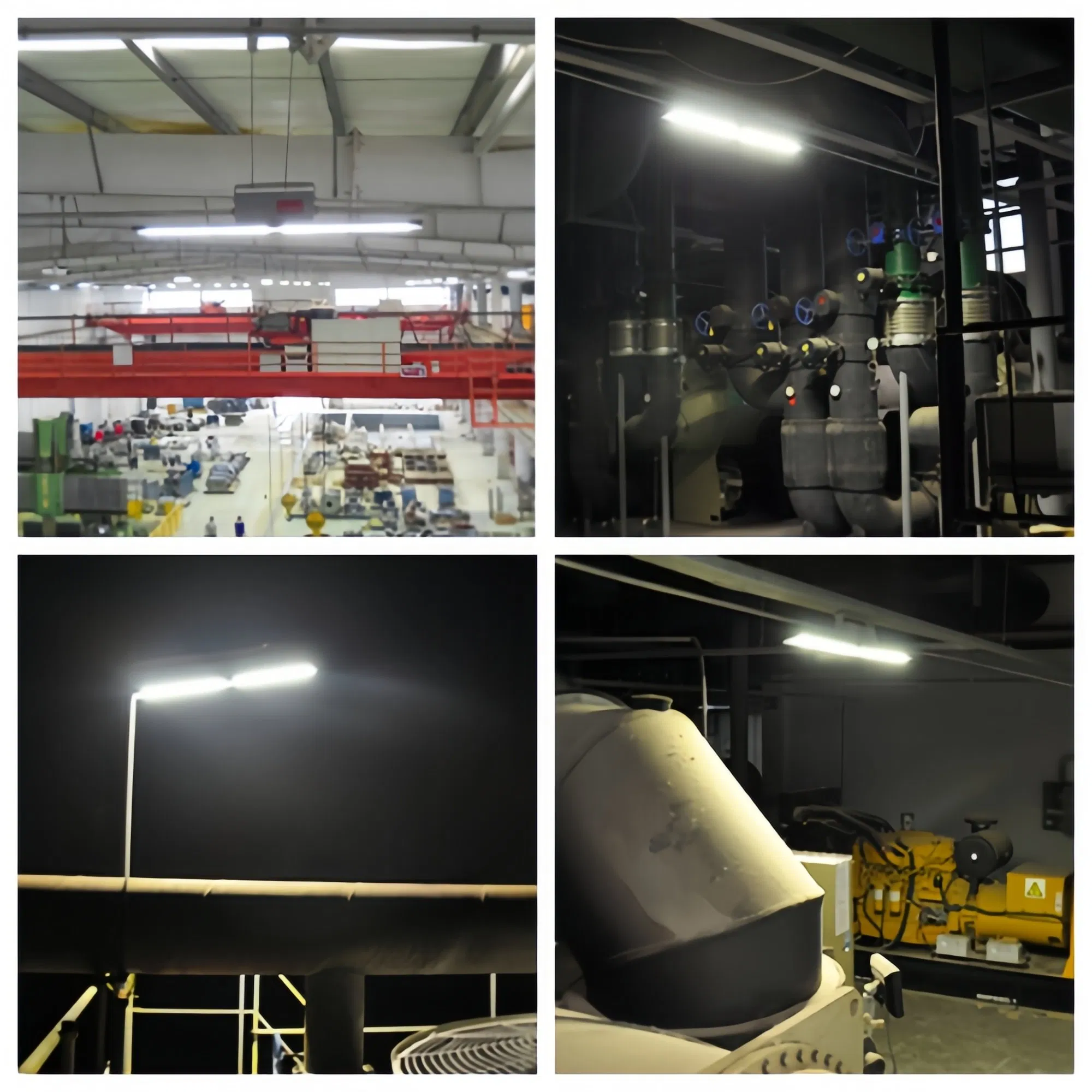

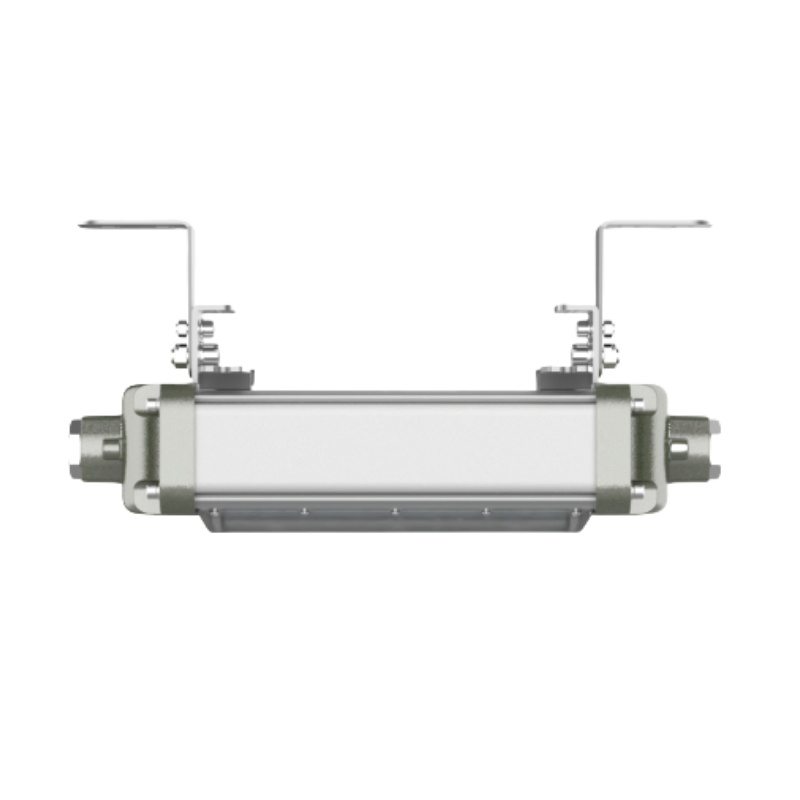

Multiple installation methods are available to suit different industrial environments: L-type bracket, flange bracket, ceiling mount, pendant mount, and U-bracket. These lights are ideal for gas stations, chemical plants, oil platforms, and explosive workshops.

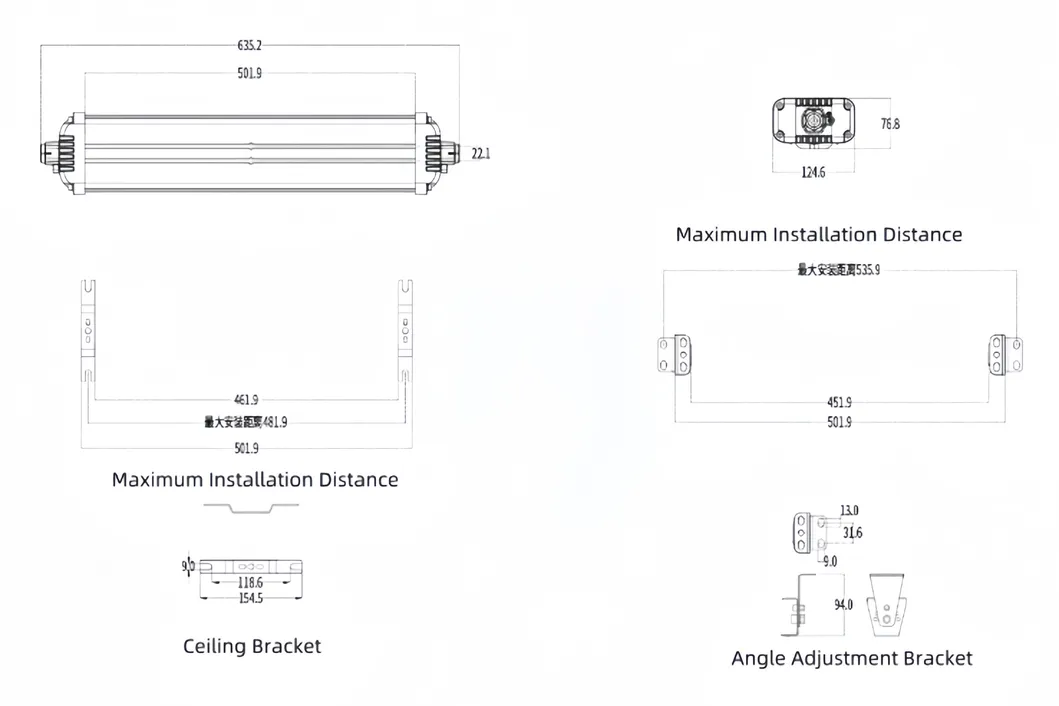

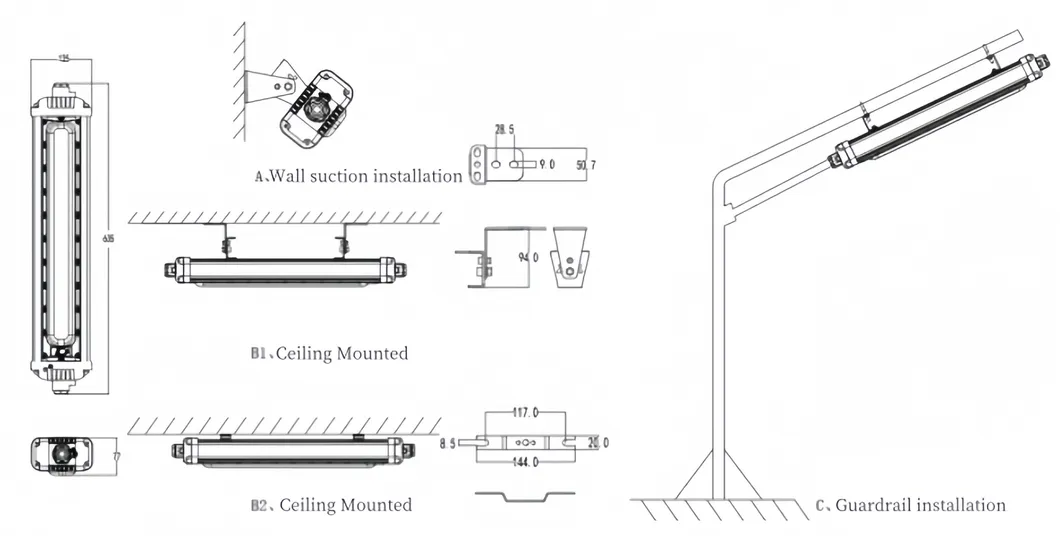

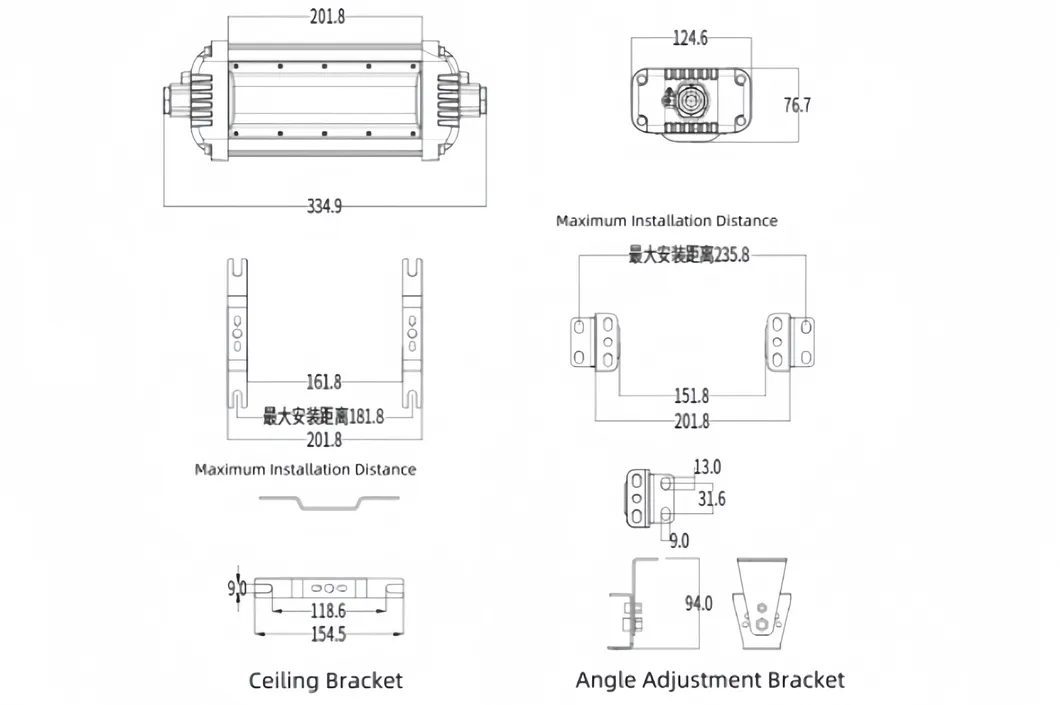

Dimension & Installation
About Our Factory

Established in 2016, our national high-tech enterprise specializes in R&D production, sales, and service within the explosion-proof lighting industry. With more than 200 dedicated workers and 28 production lines, our monthly output reaches 10,000 units.

We cooperate with international brands such as Philips and Cree to introduce advanced technology and production testing equipment. We are committed to providing professional industrial lighting fixtures tailored to the needs of oil, chemical, natural gas, marine, and mining industries.

Packaging & Shipping

Package Size: 39.00cm * 43.20cm * 29.20cm

Gross Weight: 14.800kg

Transport Package: Standard Carton

Frequently Asked Questions
Q1. Can I have a sample order for LED light? A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What is your delivery time? A: Samples need 5-7 days, while mass production time typically requires 7-12 days.
Q3. What is your MOQ for these lights? A: We offer a low MOQ of 1pc for sample checking.
Q4. How do you ship the goods and how long does it take? A: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 4-7 days to arrive at your location.
Q5. Do you offer a guarantee for the products? A: Yes, we offer a comprehensive 2-5 years warranty for our products depending on the model.
Q6. How do you handle faulty products? A: Our products are produced under a strict quality control system with a defective rate of less than 0.2%. During the guarantee period, we will replace or repair any defective batch products.
