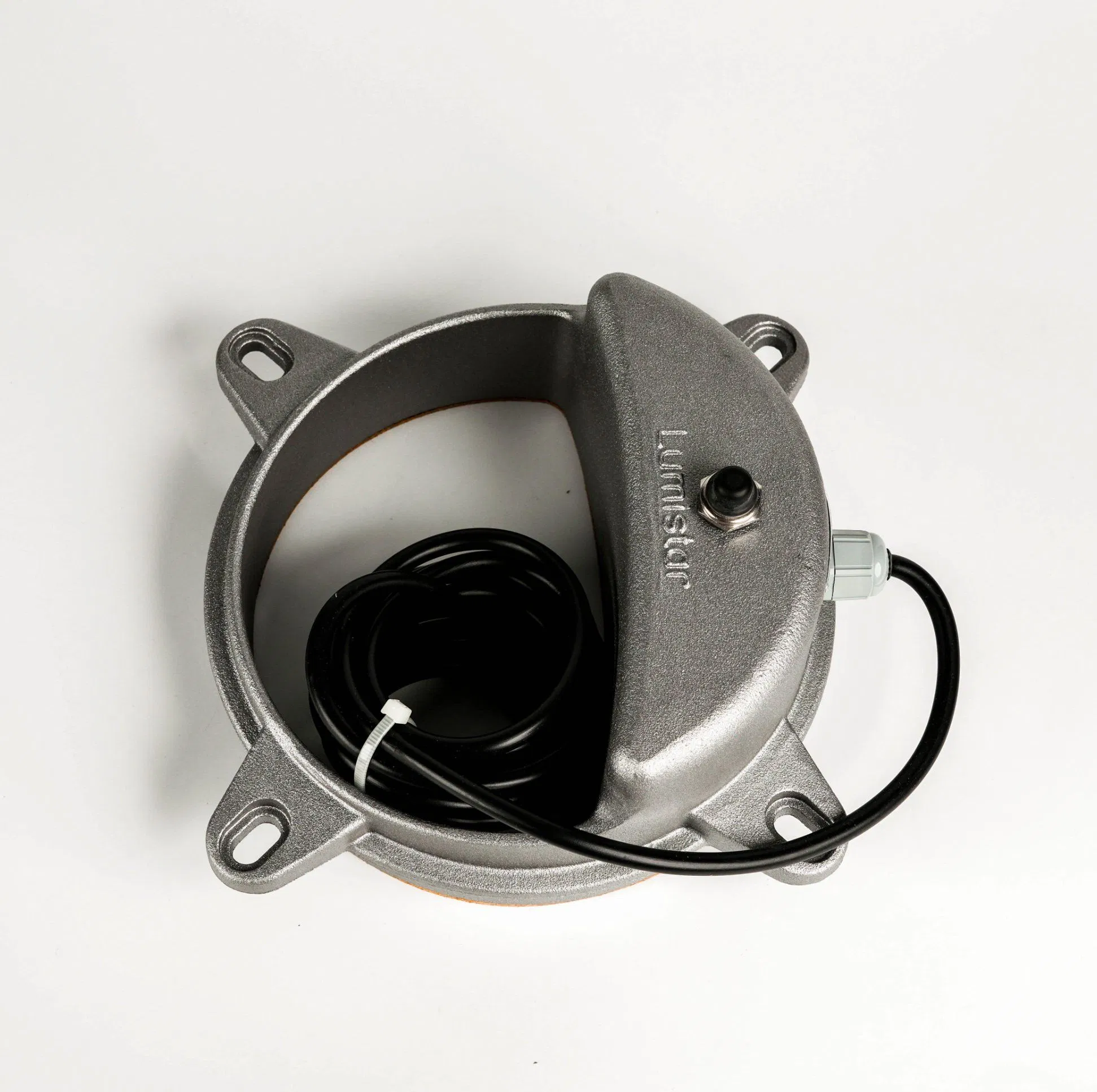

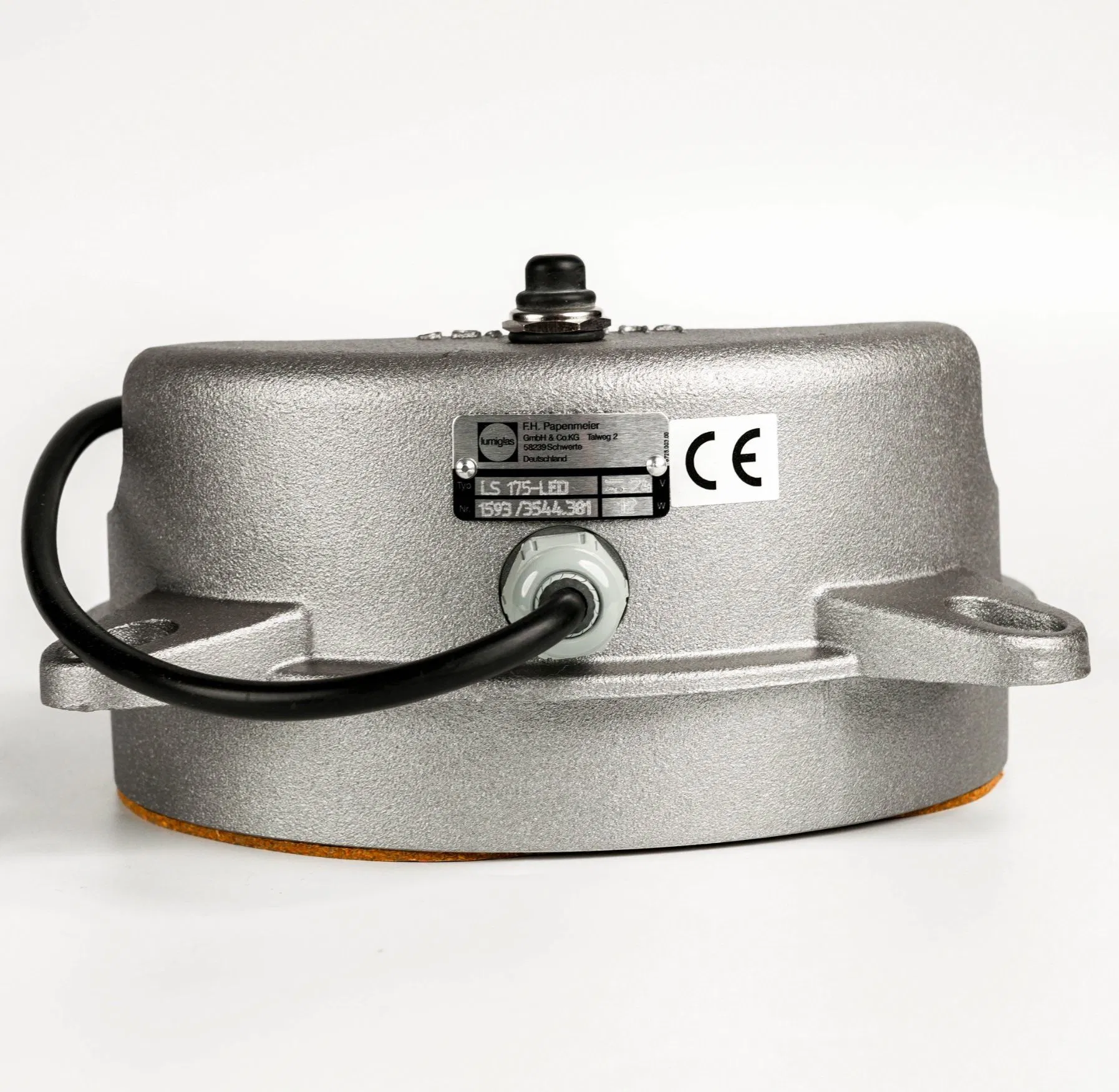

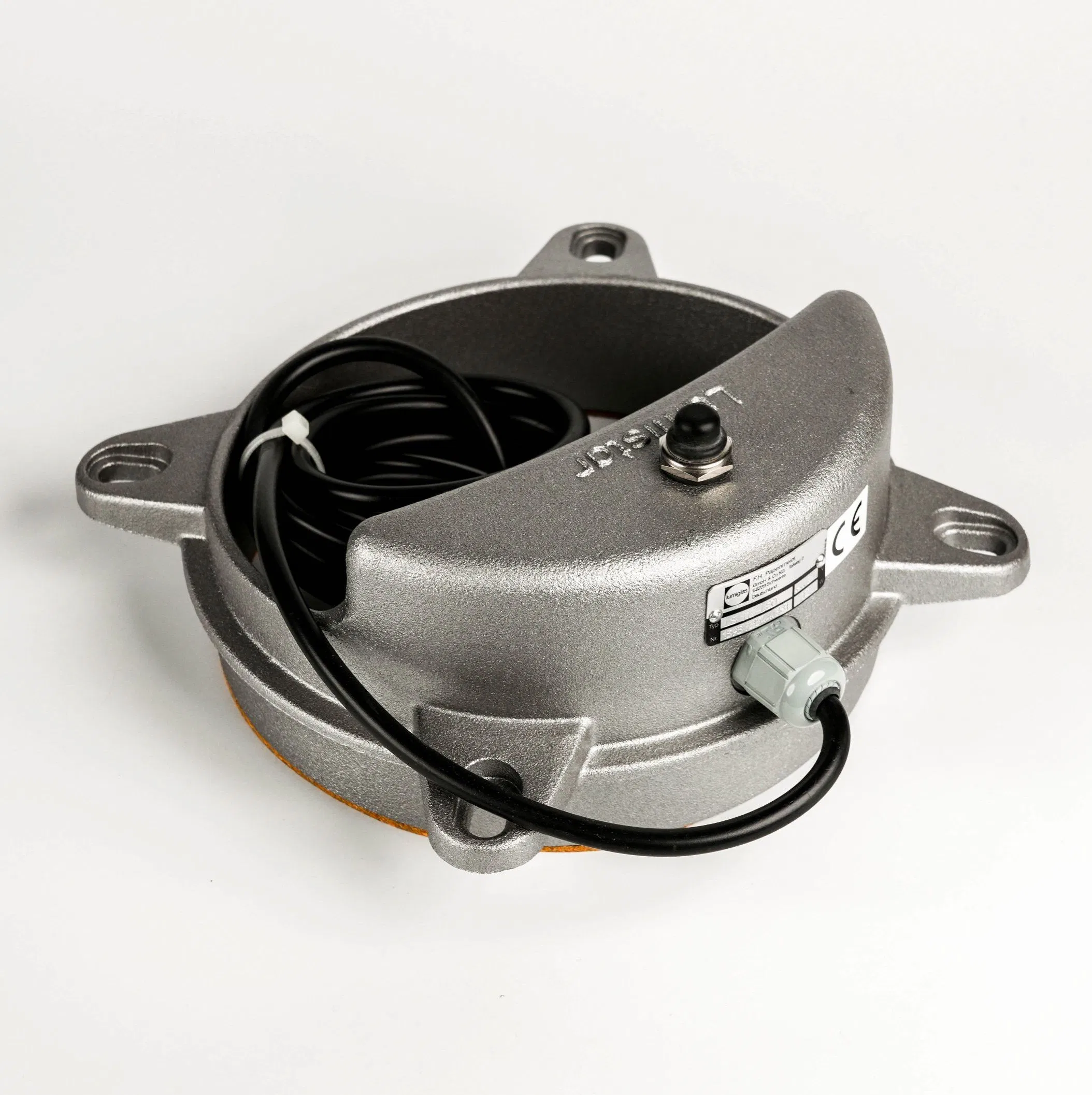

Easily Assembled Explosion Proof Wide Voltage Range Lumistar-LED80, 100, 125, 150, 175, 225 for Industrial
Easily Assembled Explosion Proof Wide Voltage Range Lumistar-LED80, 100, 125, 150, 175, 225 for Industrial
Easily Assembled Explosion Proof Wide Voltage Range Lumistar-LED80, 100, 125, 150, 175, 225 for Industrial
Easily Assembled Explosion Proof Wide Voltage Range Lumistar-LED80, 100, 125, 150, 175, 225 for Industrial
Easily Assembled Explosion Proof Wide Voltage Range Lumistar-LED80, 100, 125, 150, 175, 225 for Industrial
1 / 5
Easily Assembled Explosion Proof Wide Voltage Range Lumistar-LED80, 100, 125, 150, 175, 225 for Industrial
Easily Assembled Explosion Proof Wide Voltage Range Lumistar-LED80, 100, 125, 150, 175, 225 for Industrial
Easily Assembled Explosion Proof Wide Voltage Range Lumistar-LED80, 100, 125, 150, 175, 225 for Industrial
Easily Assembled Explosion Proof Wide Voltage Range Lumistar-LED80, 100, 125, 150, 175, 225 for Industrial
Easily Assembled Explosion Proof Wide Voltage Range Lumistar-LED80, 100, 125, 150, 175, 225 for Industrial

Easily Assembled Explosion Proof Wide Voltage Range Lumistar-LED80, 100, 125, 150, 175, 225 for Industrial

Customization: Available
Lamp Body Material: Other
IP Rating: IP65
Send Inquiry

Product Description

i

Basic Specifications

Model NO.Lumistar-LED80, 100, 125, 150, 175, 225
Input Voltage24V
Power5 W to 15 W LED
Color Temp6500K
Emitting ColorWhite
CertificationCCC
Ambient TempMax 45°C
Power Supply24 V AC/DC, 120-230 V AC
Explosion Proof Lumistar-LED

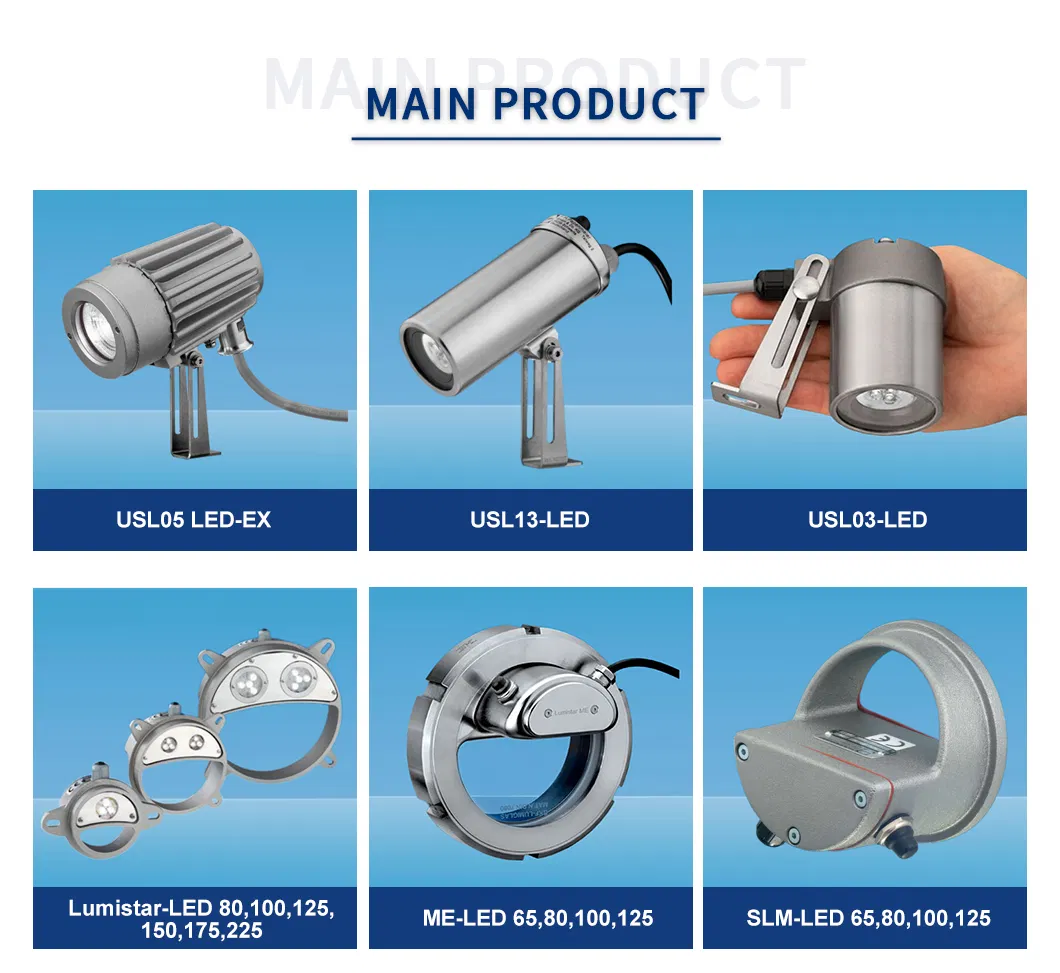

Industrial Lighting Detail
L

Product Overview

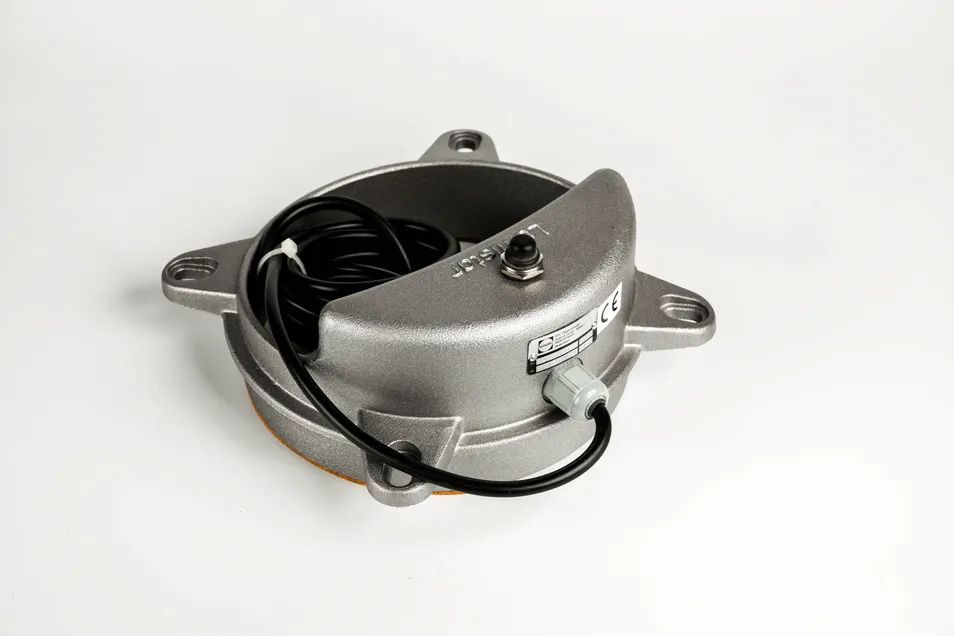

LED Electrical Data
  • Electrical data: Power supply: 24 V AC/DC, 120-230 V AC
  • Power Output: 5 W to 15 W LED depending on model type
  • Optical: High-efficiency white light, 6500K color temperature
Application Scope Suitable for circular sight glass fittings to DIN 28120 or similar, DN 50 to DN 200. Illumination of internals of pressure vessels, tanks, bunkers, silos, and stirred vessels.
Protection Rating Dust and water jet tight to IP65 and EN 60529/DIN VDE 0470 part 1 when correctly fitted.

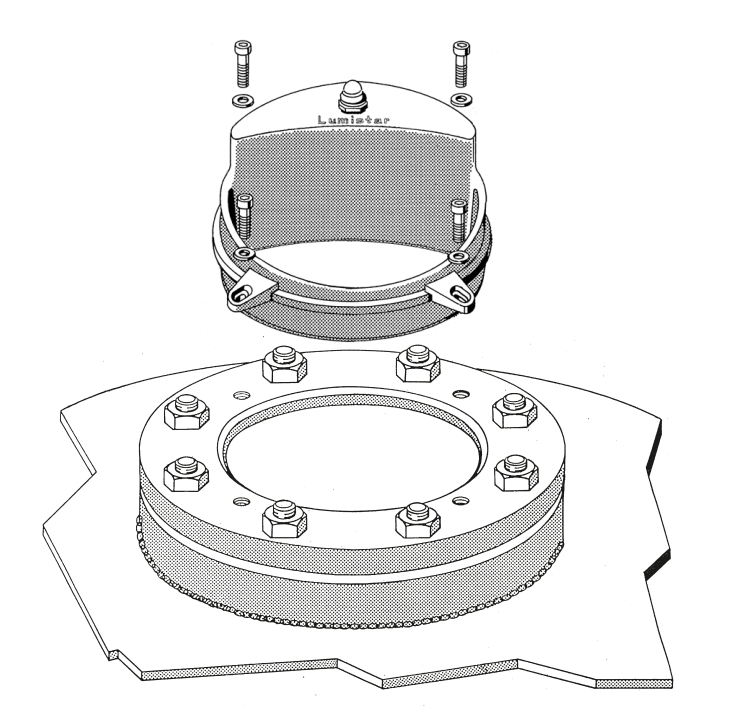

Mechanical Installation Attached to mating flange by two or four bolts. Ring gasket with bridge provides seal between luminaire and sight glass disc. Fixing bolts are stainless steel A2.
Electrical Connection Sizes 80 to 225 supplied with 3m factory-installed cable. Designed for continuous operation; push button options available.

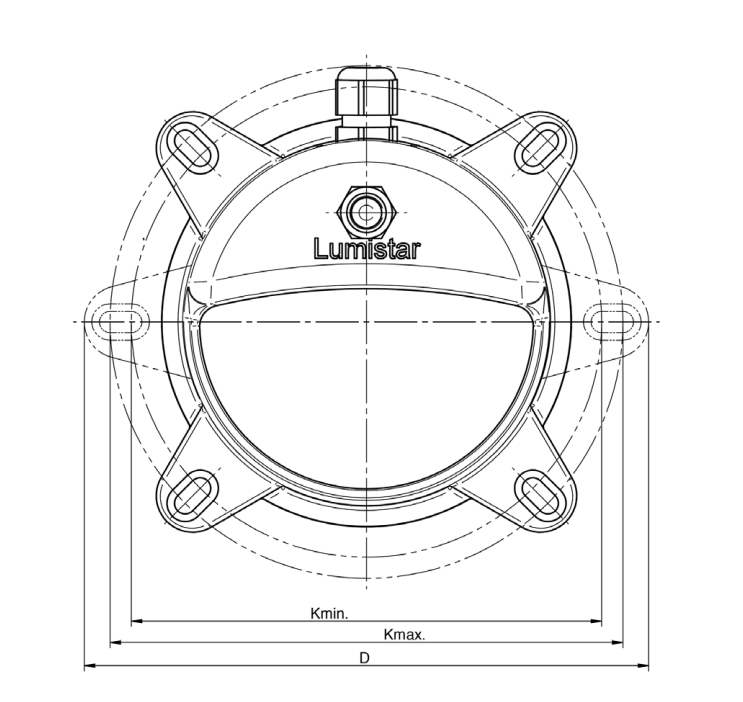

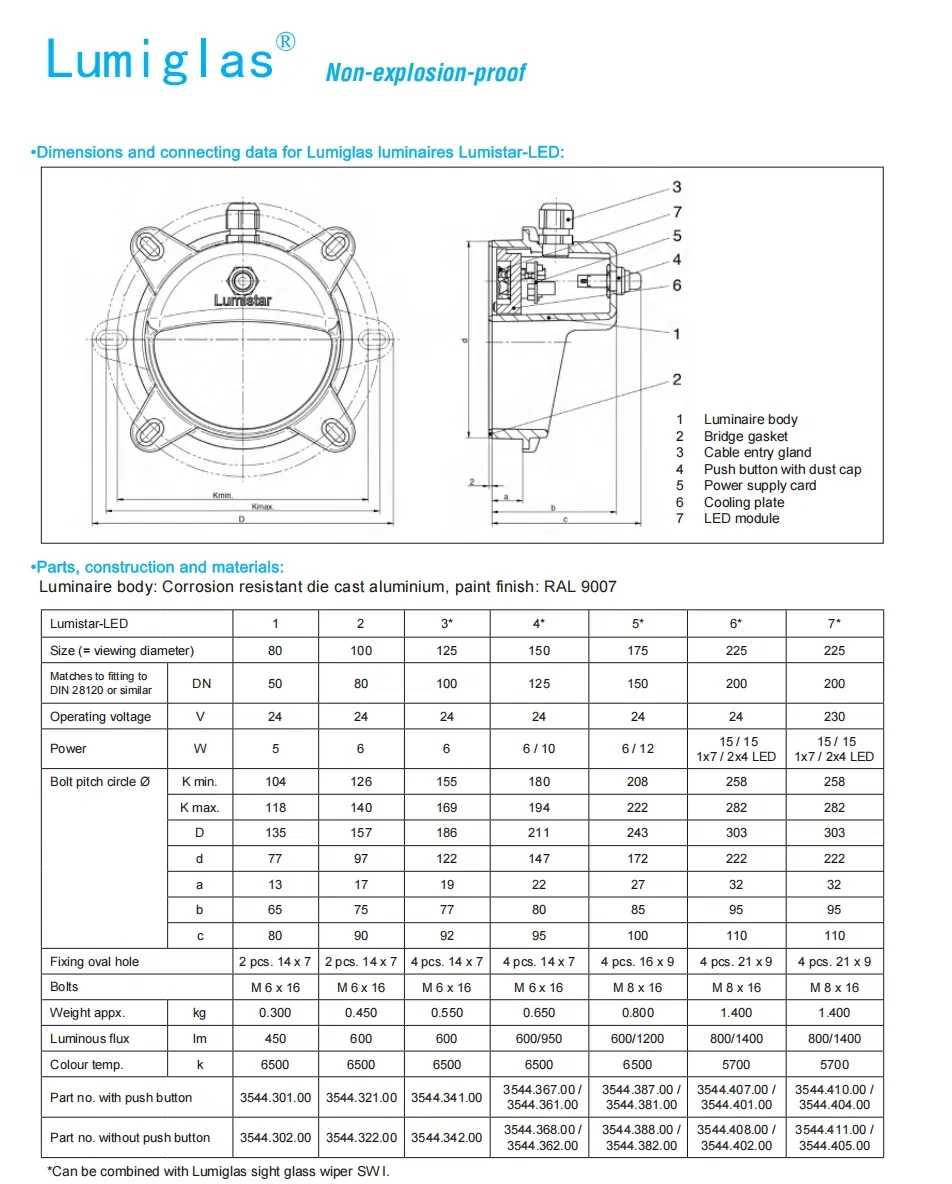

Technical Drawing 1
Technical Drawing 2

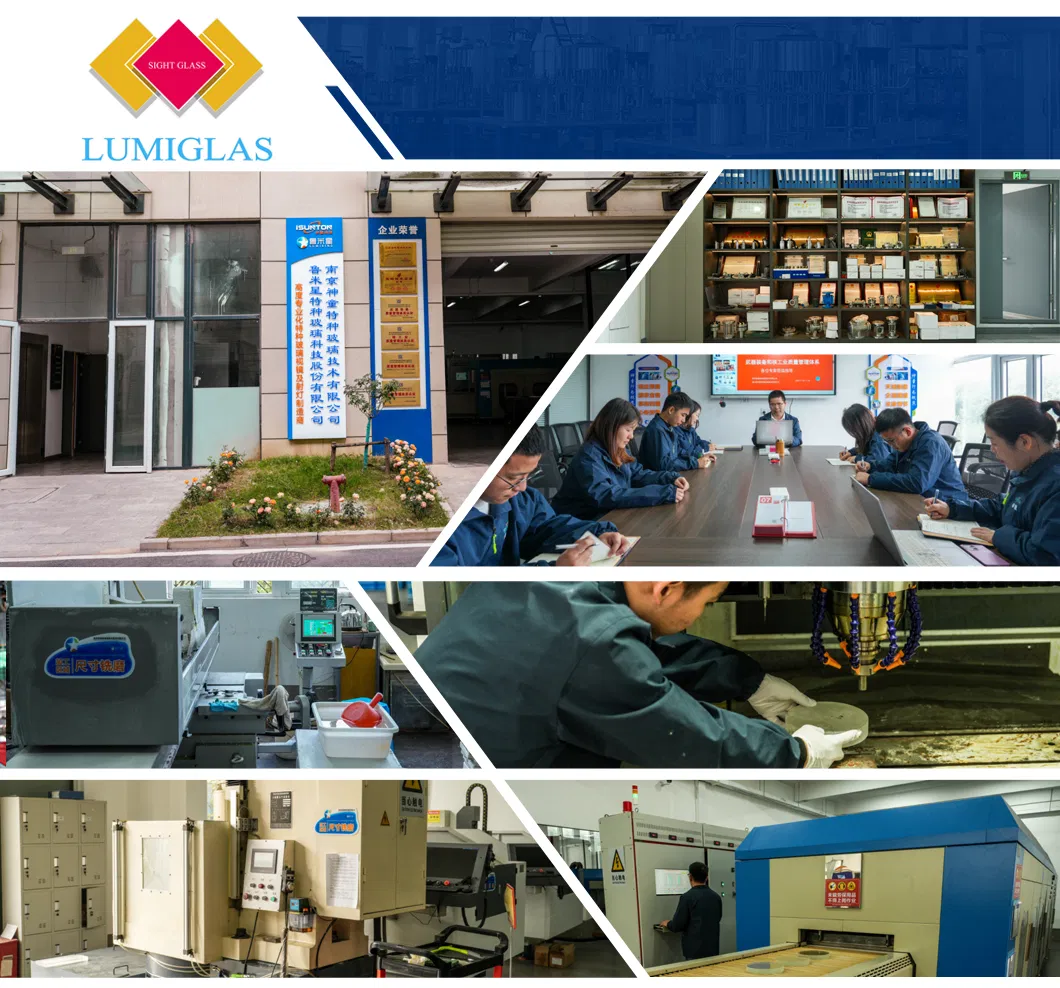

Production Showcase
Equipment
Glass Testing
Inventory
?

Frequently Asked Questions

Do you provide manufacturing services?
Yes, we operate a professional factory and provide comprehensive OEM/ODM services to meet specific customer requirements.
How can I obtain product samples?
We provide free samples for evaluation. Customers are generally only responsible for the associated shipping charges.
Can specifications be customized for extreme environments?
Absolutely. We can customize glass for high temperature, high pressure, and chemical resistance. Quality certificates such as EN10204-3.1/3.2 are available upon request.
What is the typical discount policy?
Discounts are typically based on the order quantity. We are open to discussions to find a mutually beneficial arrangement.
What delivery methods are available for international orders?
We offer sea freight, air freight, and international express delivery. We select the most economical and efficient logistics method based on your specific needs.
Is the equipment suitable for food processing areas?
Yes, our sight glass luminaires are designed to be suitable for use in food processing and non-explosion hazardous industrial areas.
