Product Description

Basic Specifications

Model NO.

LEK02-3NC

Installation

Recessed

Color Temperature

Cool White

IP Rating

IP20

Operation Mode

Non-maintained

Battery Type

Ni-Cd Battery

Material

Plastic

Certification

CE, RoHS, CB

Warranty

4 Years

Lumen

150lm

Charge Time

24 Hours

Origin

China

Product Description

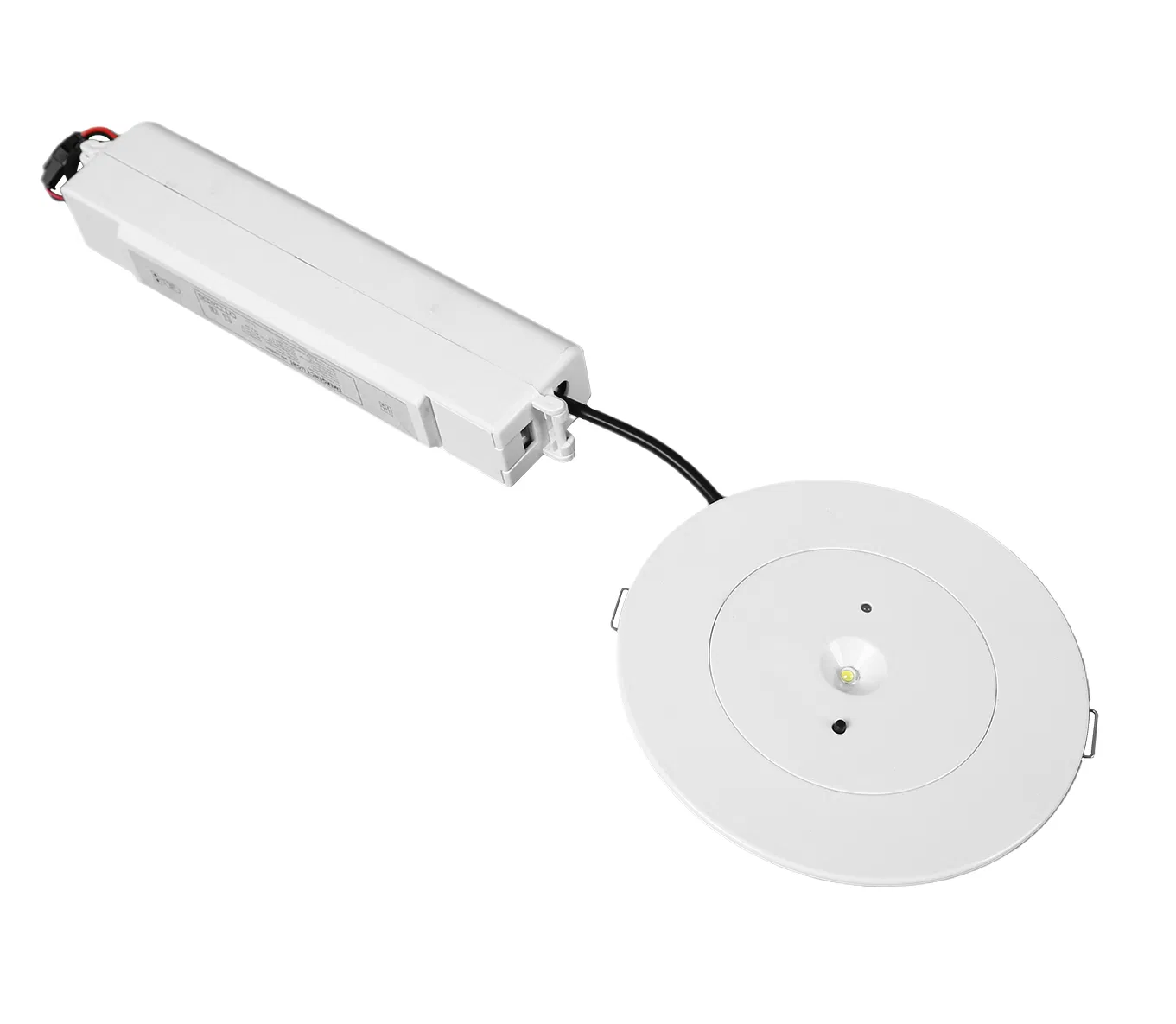

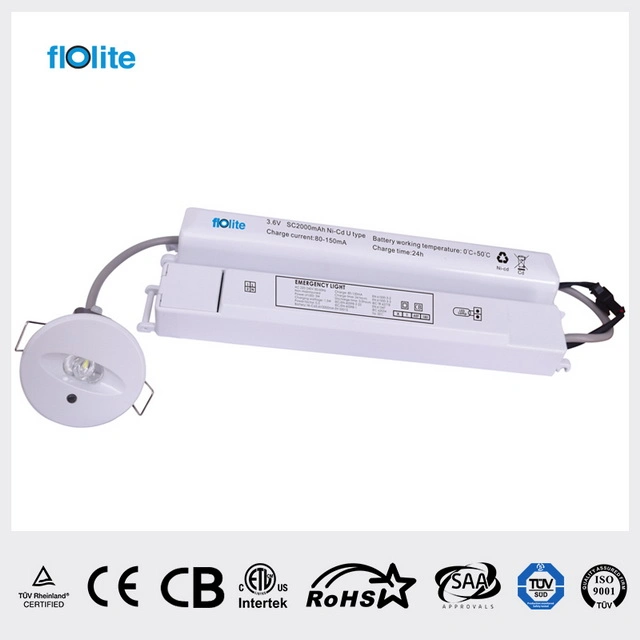

CB Approved 3W LED Emergency light with Ni-Cd batteries 3Hours Backup

Relevant Standards

EN 60598-1	EN 61000-3-2	IEC 60598-1	IEC61000-3-2
EN 60598-2-22	EN 61000-3-3	IEC 60598-2-22	IEC 61000-3-3
EN 61347-1	EN 62471	IEC 61347-1	IEC 62471

Product Parameters

Model No.	LEK02-3NC	Battery	Ni-Cd, 3.6V 2000mAh
LED Chips	CREE XT-E	Luminous Flux	150lm
Power Consumption	3W	Input Voltage	AC220-240V~50/60Hz
Charge time	24 Hours	Emergency duration	3 Hours
Protection Class	II	IP Rating	IP20

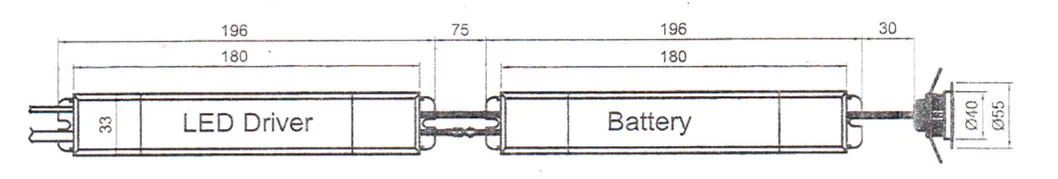

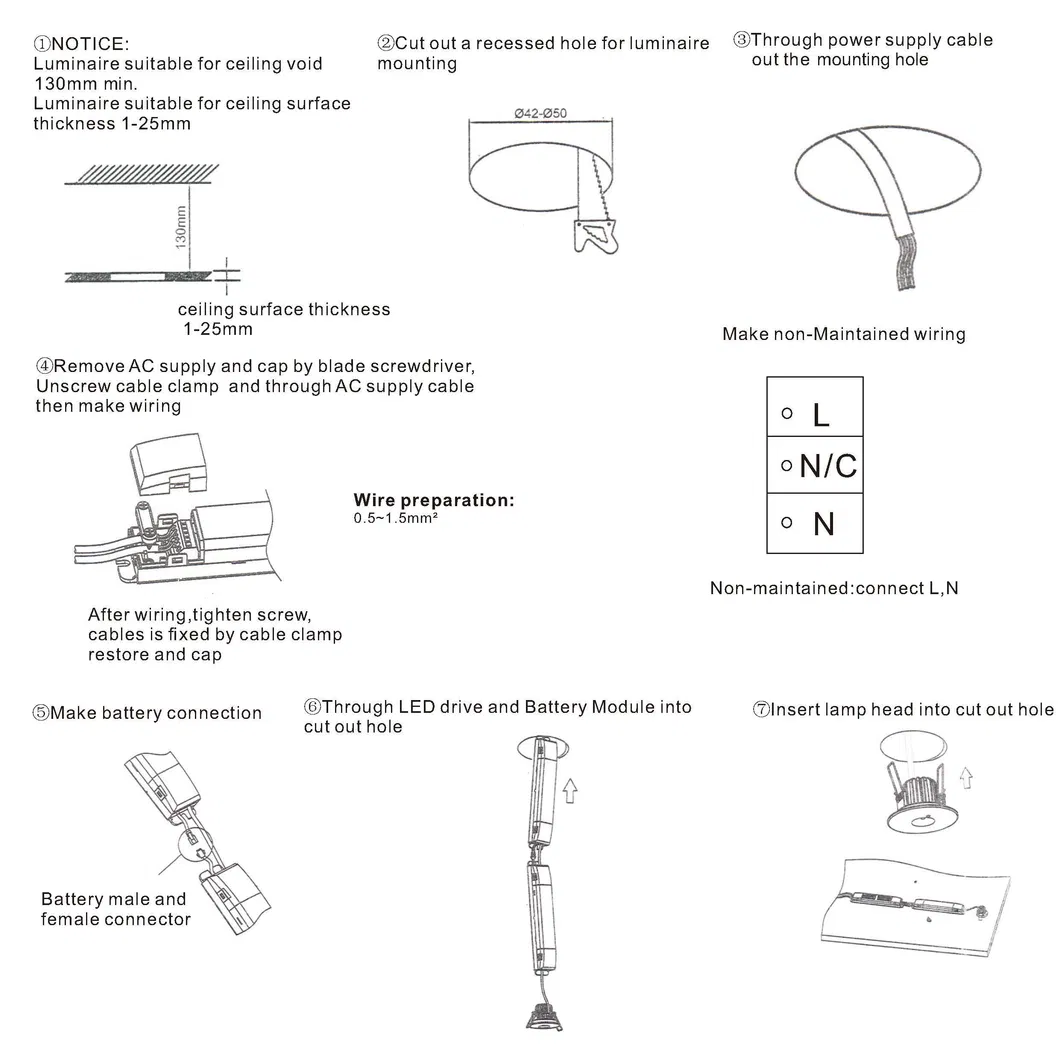

Installation & Dimensions

Wire preparation: 0.5~1.5mm²

AUTO Test System

Commissioning test: Connection of the mains supply will initiate commissioning where the battery will remain on charge for an uninterrupted 24 hours. After 24 hours, the luminaire will perform a duration test.

Function test: A 5-second functional test is carried out at 1-week intervals.

Duration test: A full rated duration test is carried out at 13-week intervals.

LED Indication	Status	Commentary
Permanent green	Normal	Everything works correctly
One flashed (4s pause)	Battery failure	Battery is not connected
Two flashed (4s pause)	Battery failure	Battery short or low voltage
Three flashed (4s pause)	Load failure	LED failure
Green and Red off	DC mode	Emergency mode (Battery operation)

Important Notes

Must be installed by a registered electrician in accordance with local standards.
Ensure mains supply is isolated before installation.
The light source is not replaceable; replace the whole luminaire at end of life.
Replace the luminaire if it no longer meets the rated duration after recharging.

Frequently Asked Questions

How long does the battery provide emergency power?

The system provides a rated emergency duration of 3 hours after a full 24-hour charge.

What is the "AUTO Test" function?

It is a self-diagnostic system that automatically performs weekly functional tests and quarterly full-duration tests to ensure reliability.

What type of LED chips are used in this light?

This emergency light uses high-quality CREE XT-E LED chips for optimal brightness and efficiency.

Can this light be used in wet environments?

The product has an IP20 rating, which means it is protected against solid objects but not waterproof. It is designed for indoor recessed installation.

What does a flashing red LED indicator mean?

Different flashing patterns indicate specific issues: one flash for battery disconnection, two for battery short/low voltage, and three for LED load failure.

What is the required cutout size for installation?

This model is designed for a 40mm cutout hole for recessed mounting.
