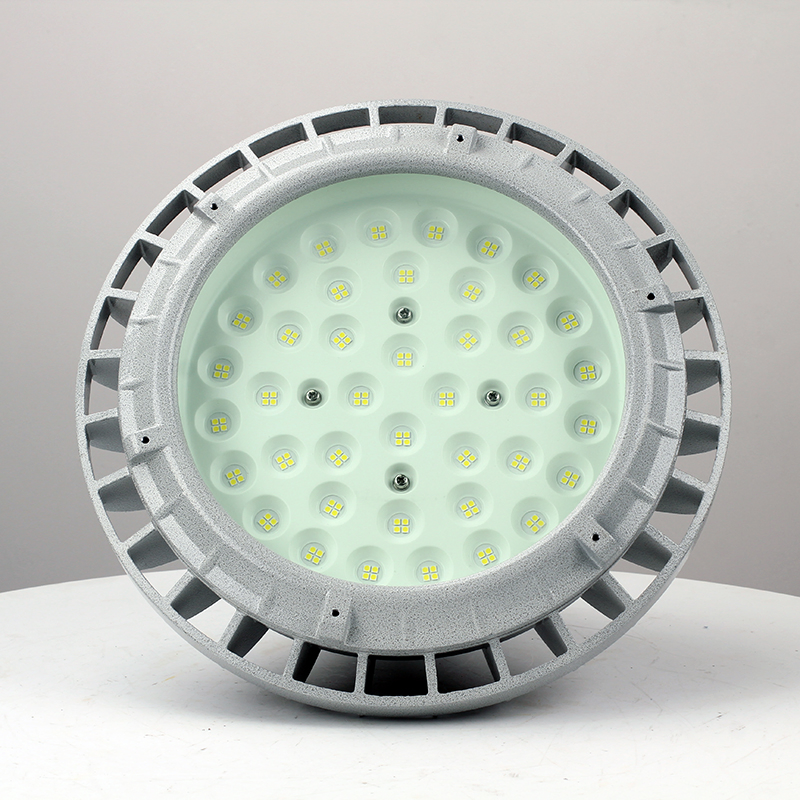

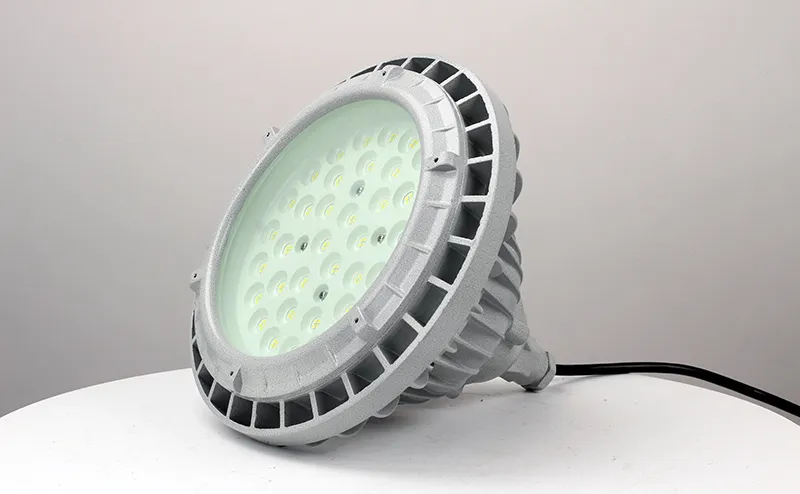

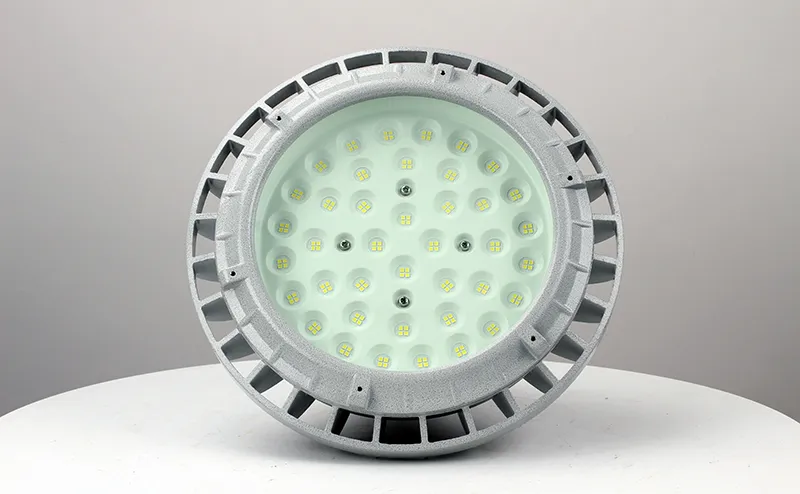

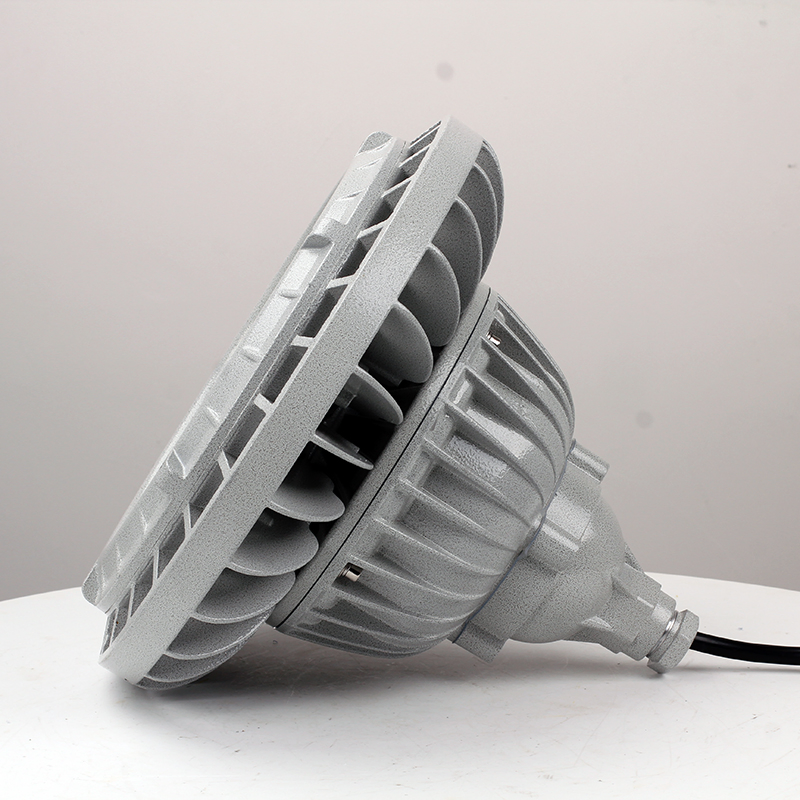

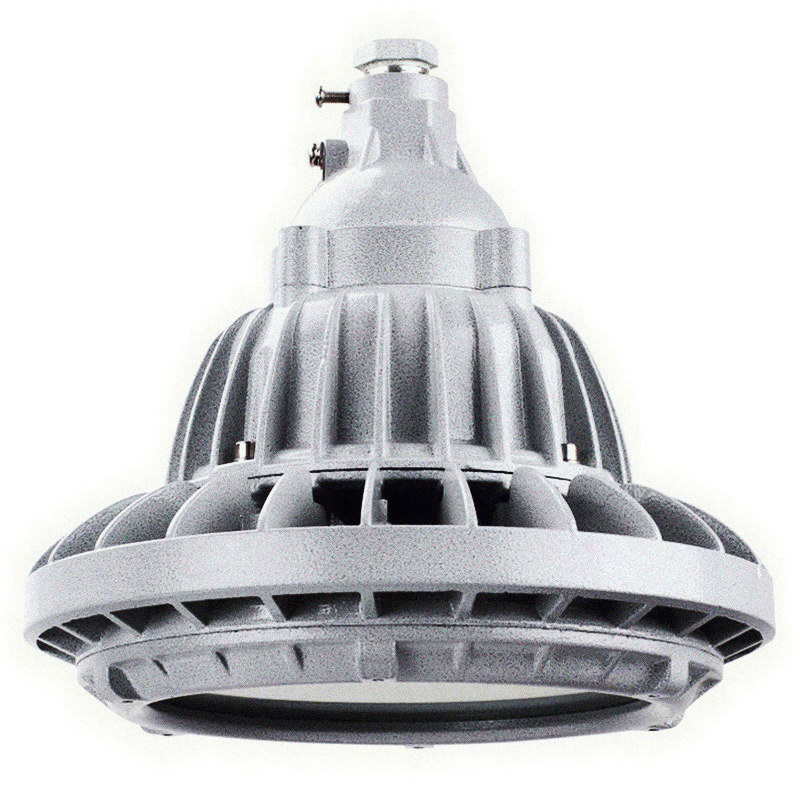

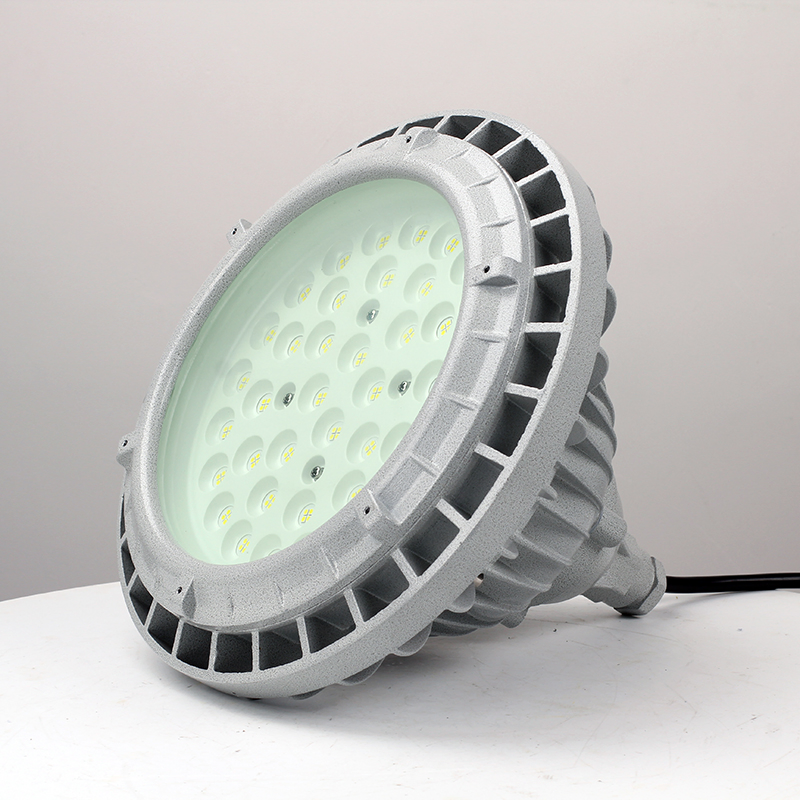

LED Industrial for Hazardous Area 50W 80W IP66 Chemical Industrial Lighting Light LED Emergency Explosion Proof Zone 1 60W

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
BED59-I
Input Voltage
AC 220V/AC 380
Power
10W - 120W
Color Temperature
2700-6500K
Certification
CCC, CE, RoHS, IECEx
Warranty
5-Year
Lifespan
50,000 Hours
Protection
IP66, Waterproof, Dustproof
Product Parameters

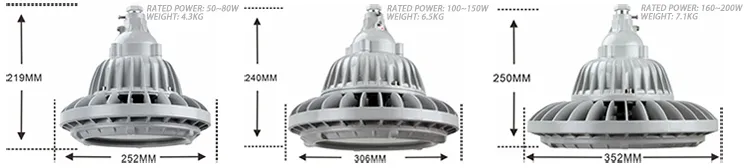

Banner Parameters Header
Model Explosion Proof Sign Light Source Type Power (W) Luminous Flux CCT (K) Weight
BED59-I Ex db IIC T6 Gb / Ex tb IIIC T80 Db LED I 10~30 1200~3600 3000~5700 2.9kg
BED59-II Ex db IIC T6 Gb LED II 40~60 4800~7200 3000~5700 3.6kg
BED59-III Ex db IIC T6 Gb LED III 80~100 9600~12000 3000~5700 4.9kg
Product Features
Feature Banner
  • The radiator is made of special cast aluminum alloy by die-casting with high voltage static electricity spraying.
  • Exposed stainless steel fasteners with high corrosion resistance.
  • Flame-proof joint surface with pure flame-proof structure for reliable performance.
  • Standard three-box separation structure design to effectively reduce temperature rise.
  • Multi-point lighting with high light utilization and uniform illumination without glare.
  • Transparent tempered glass with strong impact resistance and high light transmittance.
  • Constant current power supply with shunt, surge, overcurrent, and high-temperature protection.
Applicable Scope: Zone 1, Zone 2, Zone 21, Zone 22; IIA, IIB, IIC Explosive Gas Environments
Security Level: WF2, Ex db IIC T6 Gb, Ex tb IIIC T80ºC Db

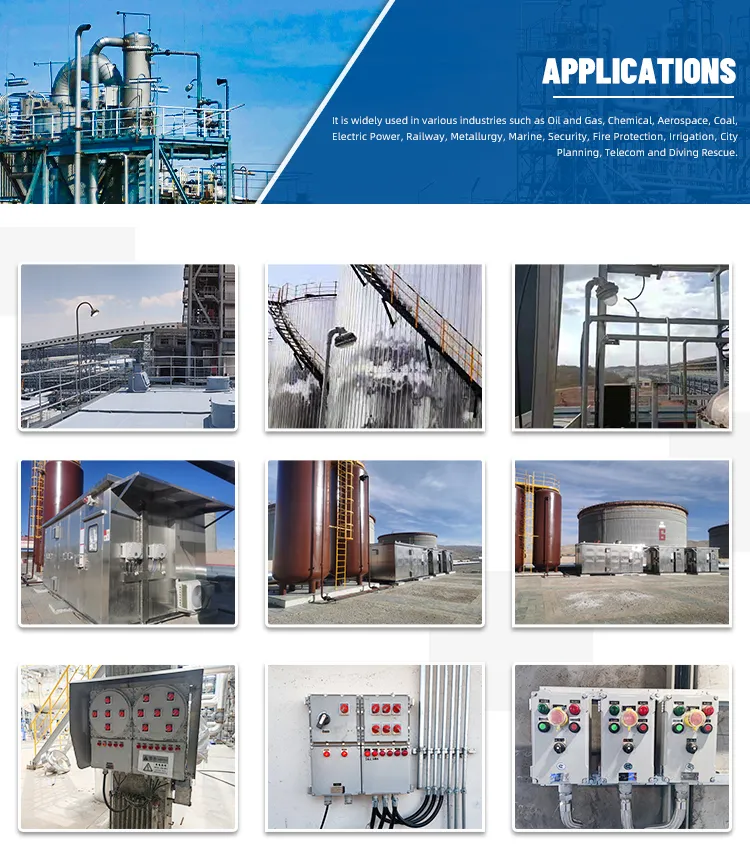

Field of Utilization: Industry, Gas Station, Refinery, Spray Booth, Hazardous Locations
Mounting Style: Bracket Type, Boom Type, Wall Type, Guardrail Type, Flange Type
Technical Specifications

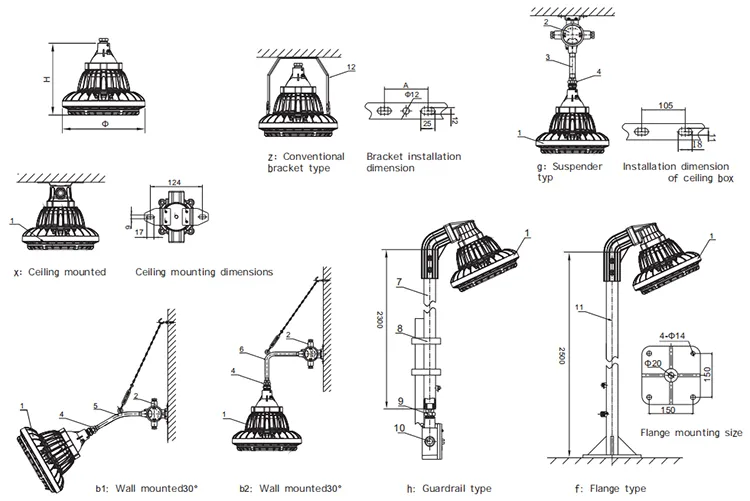

Technical Drawing
Serial No Model Housing Type Power Range (W) Φ(mm) A(mm) H(mm)
1BED59-30WI10-3020922485
2BED59-60WII40-6023622470
3BED59-100WIII70-10025221995
Mounting Options
Production Quality

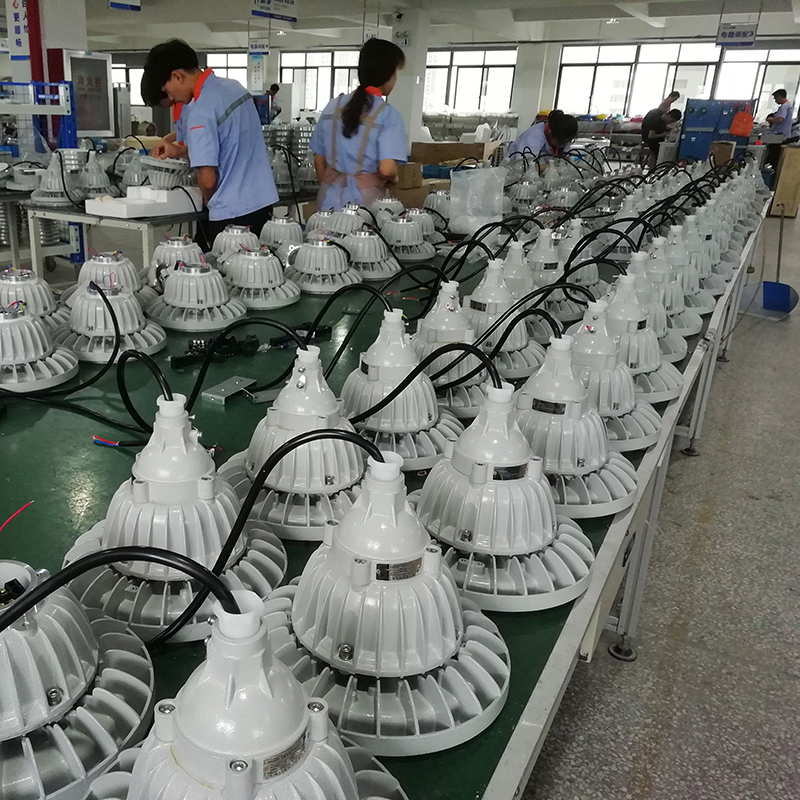

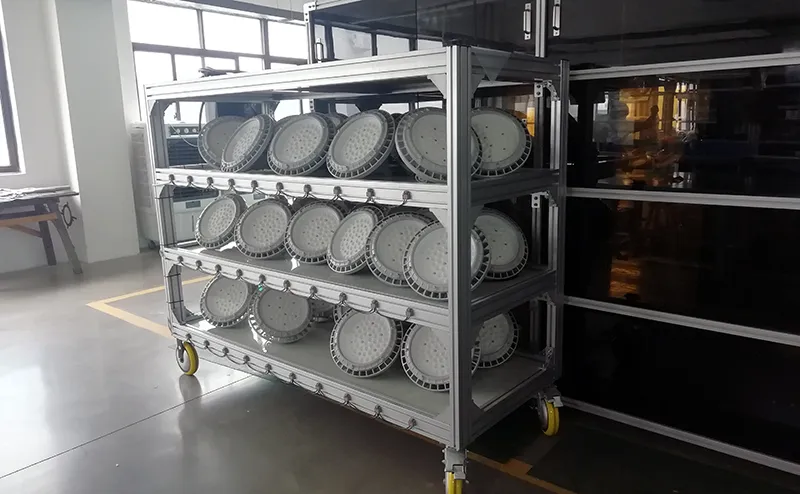

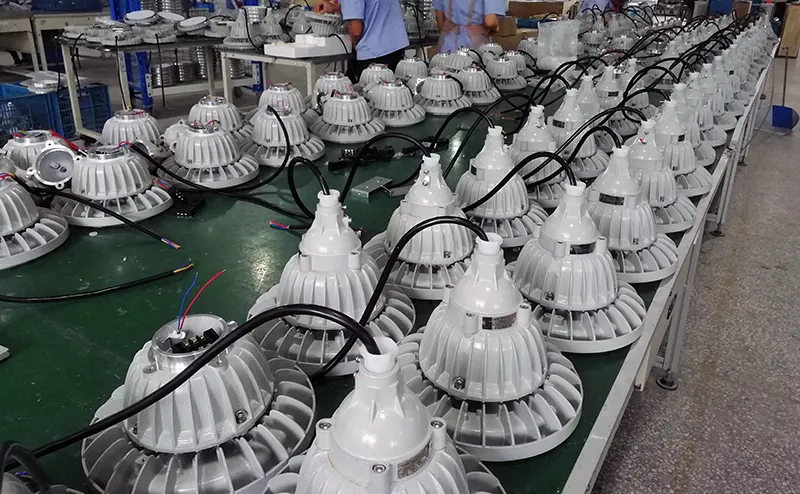

Factory View 1 Factory View 2 Testing
Frequently Asked Questions
FAQ Banner
Are you a factory or trading company?
We are a factory and provide OEM services. Our main products are explosion-proof lightings, distribution boxes, cable glands, fans, and junction boxes.
What certificates do you have?
We have passed ATEX, IECEx, and hold many National Patents for our specialized explosion-proof equipment.
In what environments are your products used?
They are widely used in petroleum chemical, aerospace, coal power, railway, metallurgy, shipbuilding, medicine, marine, and gas stations.
Can I place a sample order?
Yes, we welcome sample orders to test and check the quality. Mixed samples are acceptable.
Do you accept customized orders?
Yes, we can accept customization. Please inform us and confirm the design based on our sample requirements.
What is the protection rating of the LED industrial lights?
The lights feature an IP66 rating, making them completely dustproof and protected against powerful water jets.
