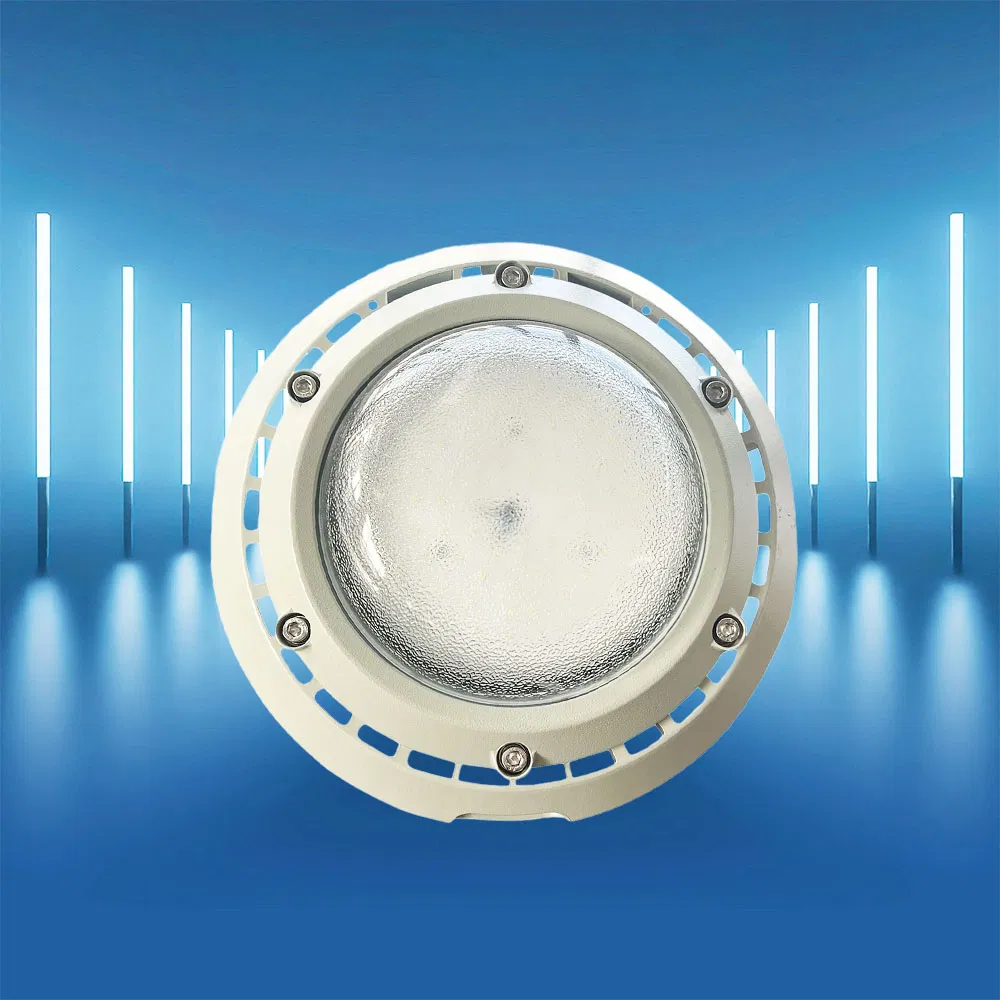

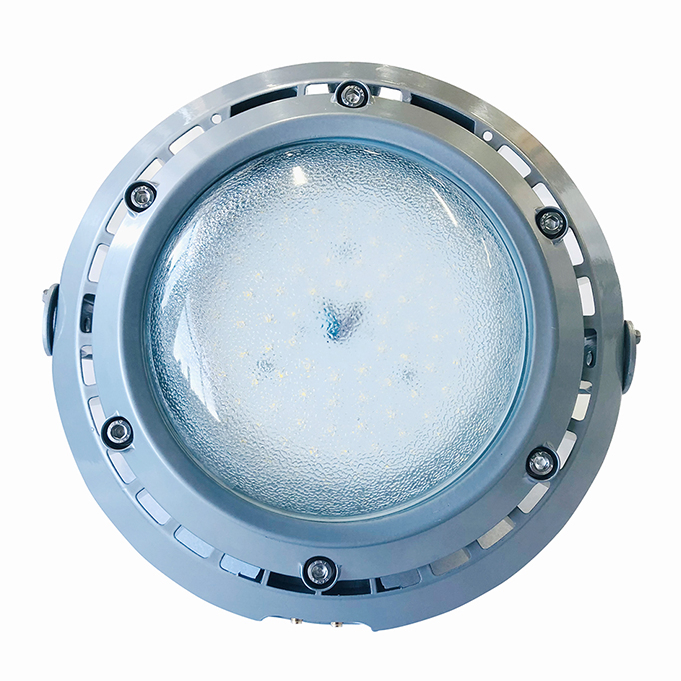

Waterproof Grade Low-Bay Platform Luminaires LED IP66

Basic Information

Model NO.

BHD 8630-9

Base Type

Bracket

Irradiated Area

≥30m²

Input Voltage

90-305VAC

Power

50W - 100W

Color Temperature

Cool White (2700-6500K)

LED Chips Brand

Osram

Certification

ATEX, IECEx, CE, CCC, EMC, LVD

Warranty

5 Years

Weight

5.5kg

Application

Zone 1,2 & Zone 21,22

Light Efficiency

> 130lm/W

Product Description

Atex Anti Explosion Proof Flood Light IP66 Zone 1/2/21/22

Designed for Zone 1, 2, and Zone 21, 22 hazardous environments.

High efficiency drivers and LEDs for low-cost operation in harsh industrial applications.

Isolated LED compartment reduces heat transfer to driver housing, extending lifespan.

ATEX and IECEx approved for T6 environments.

Marine grade aluminum housing with IP66/IP67 rating for extreme durability.

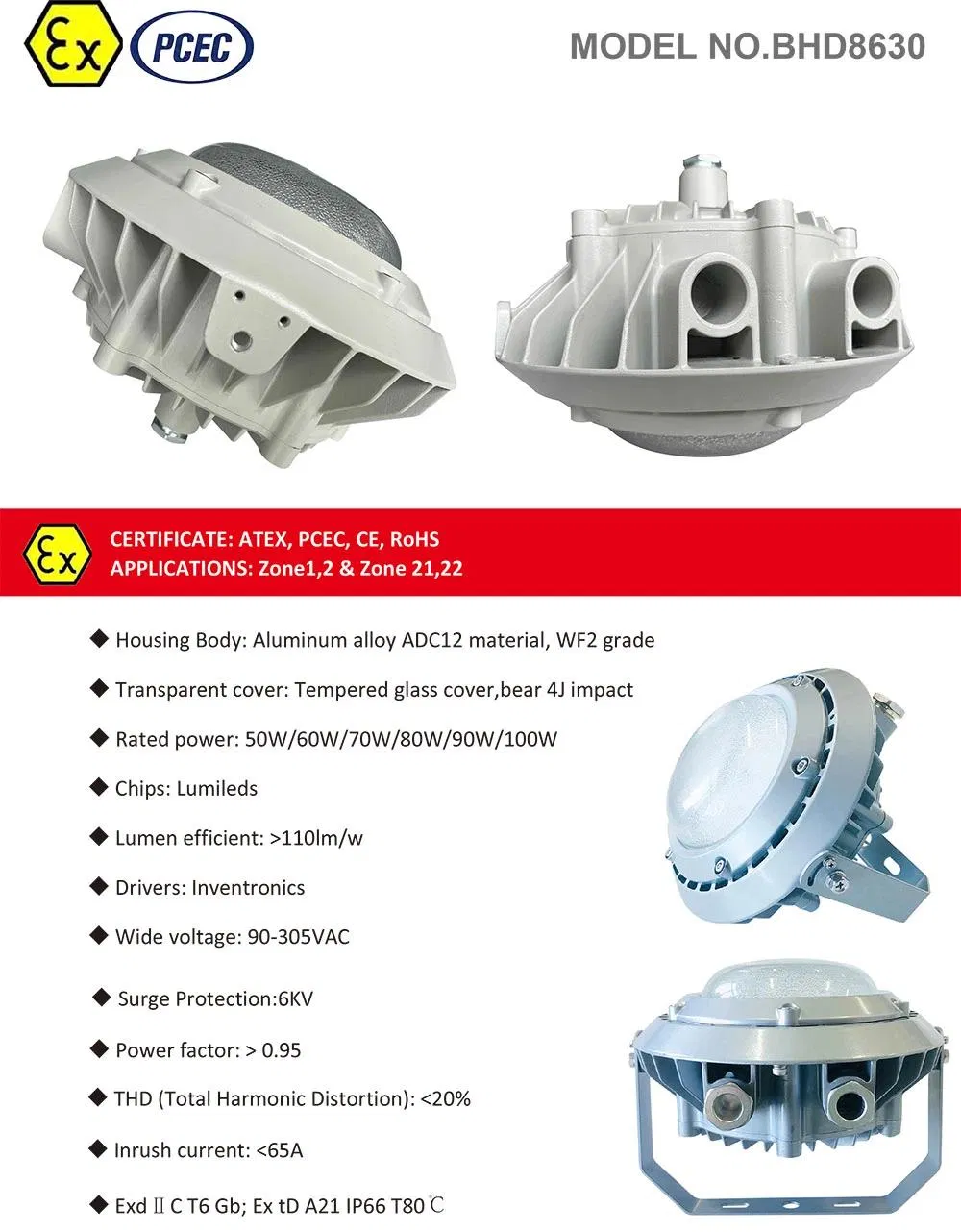

Product Parameters

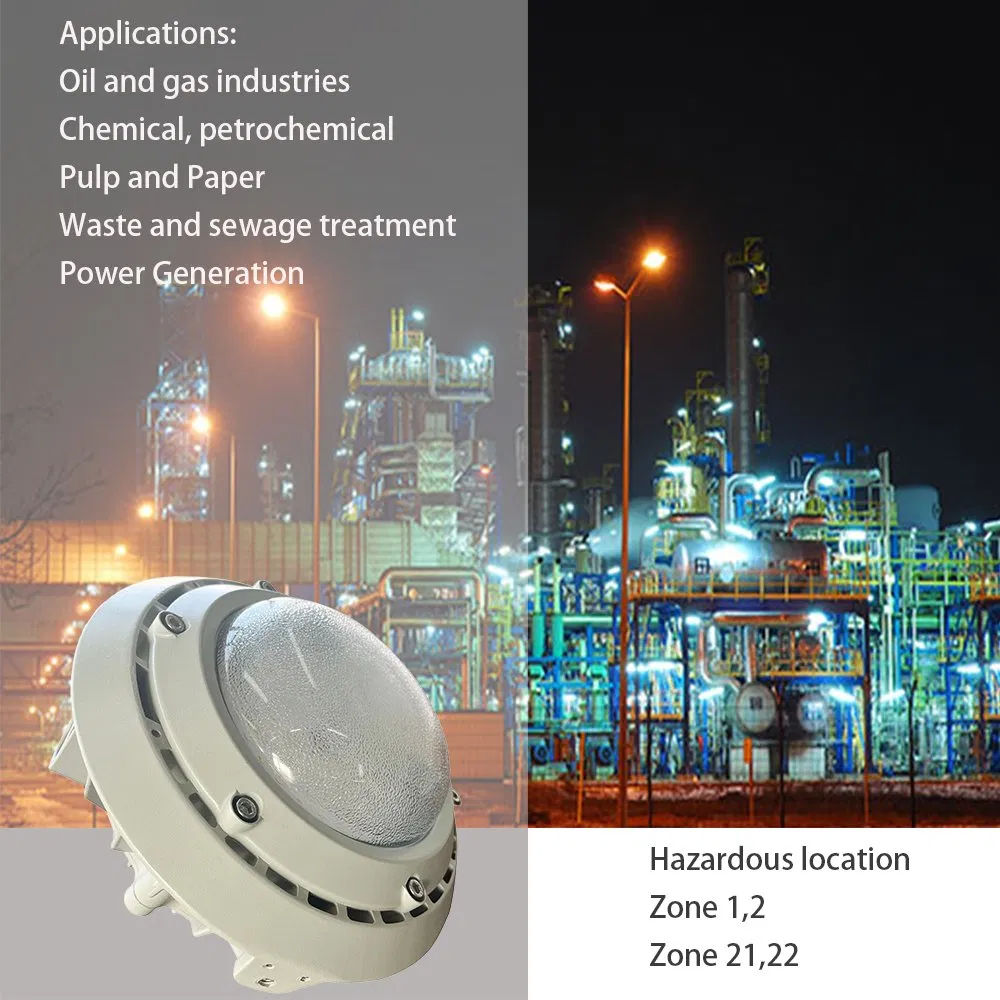

APPLICATIONS	Hazardous location LED fixture; Class I Division 2, Groups A,B,C,D; Zone 1 & 2; Zone 21 & 22.
CERTIFICATIONS	ATEX, IECEx (TUV), CE, ROHS.

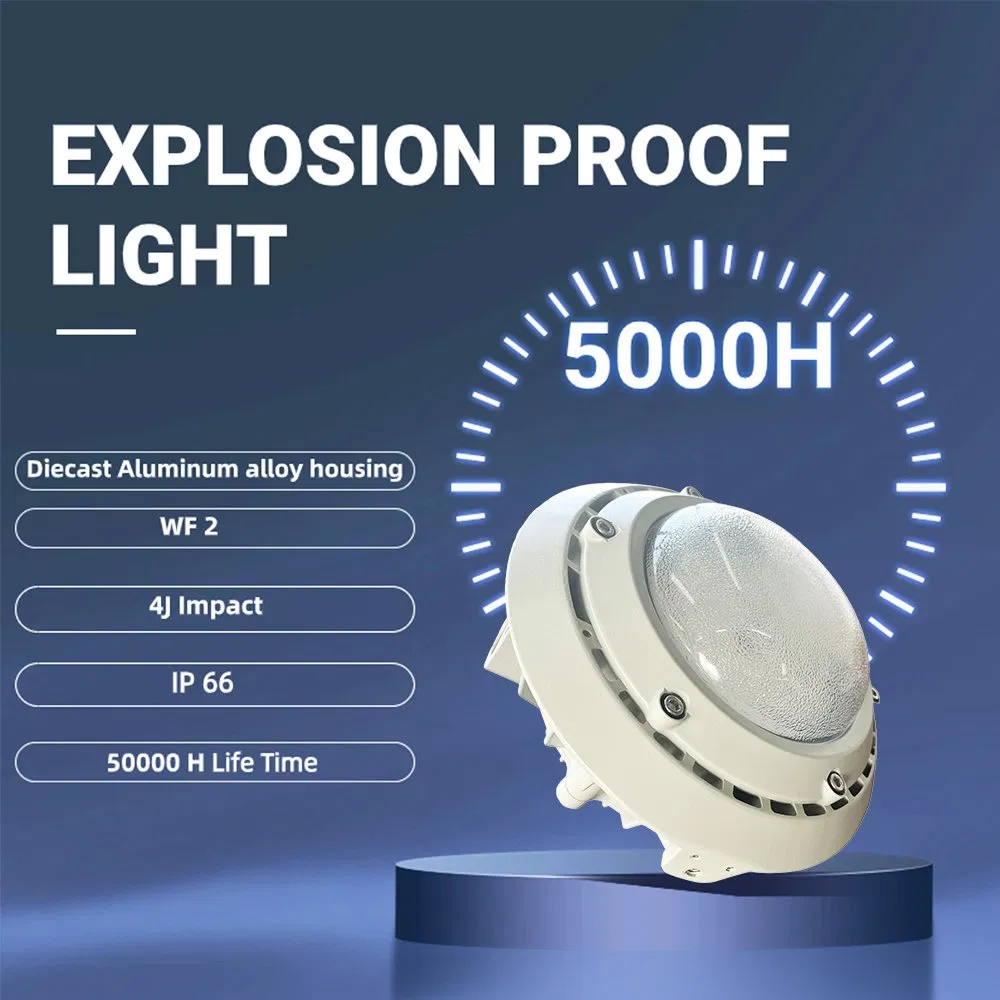

HOUSING BODY	Aluminum alloy ADC12, WF2 grade.
LENS	4mm tempered glass & PC reflector 120º; >95% light transmission.
PERFORMANCE	Up to 110 lm/w; 50W to 100W options; L70 > 65,000 hrs.

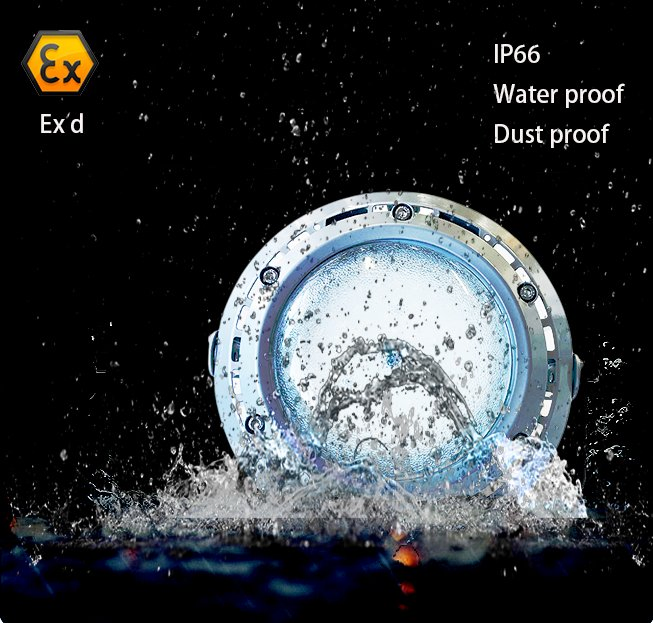

IP RATING	IP66 & IP67; Dust tight and water immersion resistant.

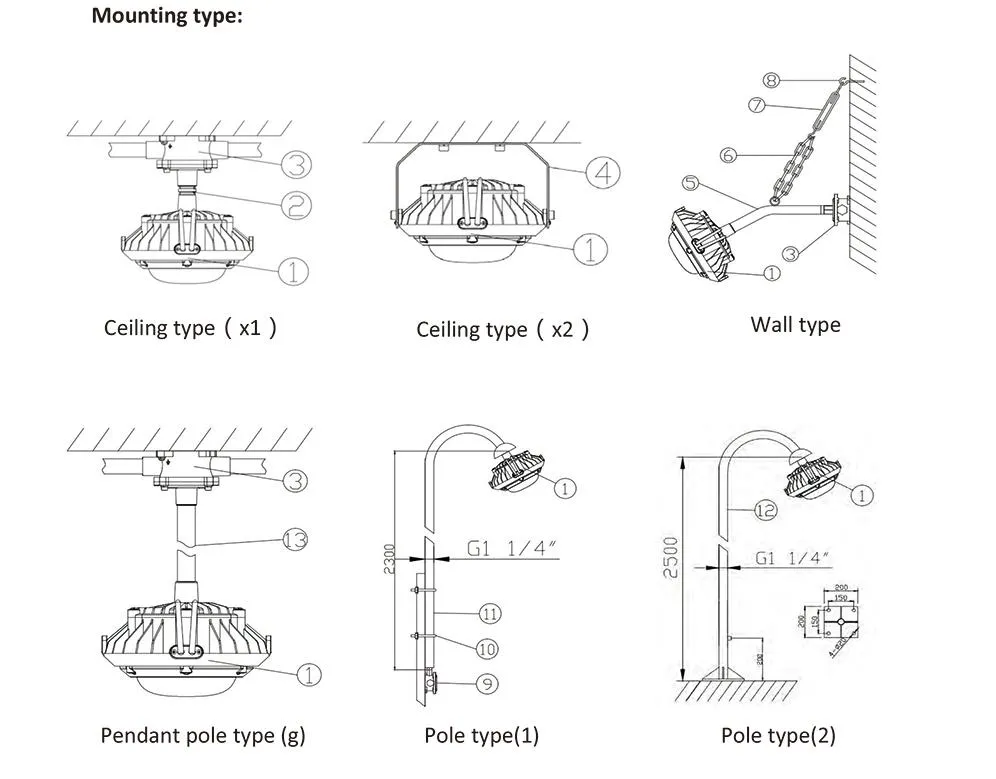

MOUNTING	Surface/wall mount (adjustable bracket included); Pendant kit optional.
OPERATING TEMP	-40°F to 122°F (-40°C to 50°C).
DIMMING	1-10V standard, DALI, Triac available.

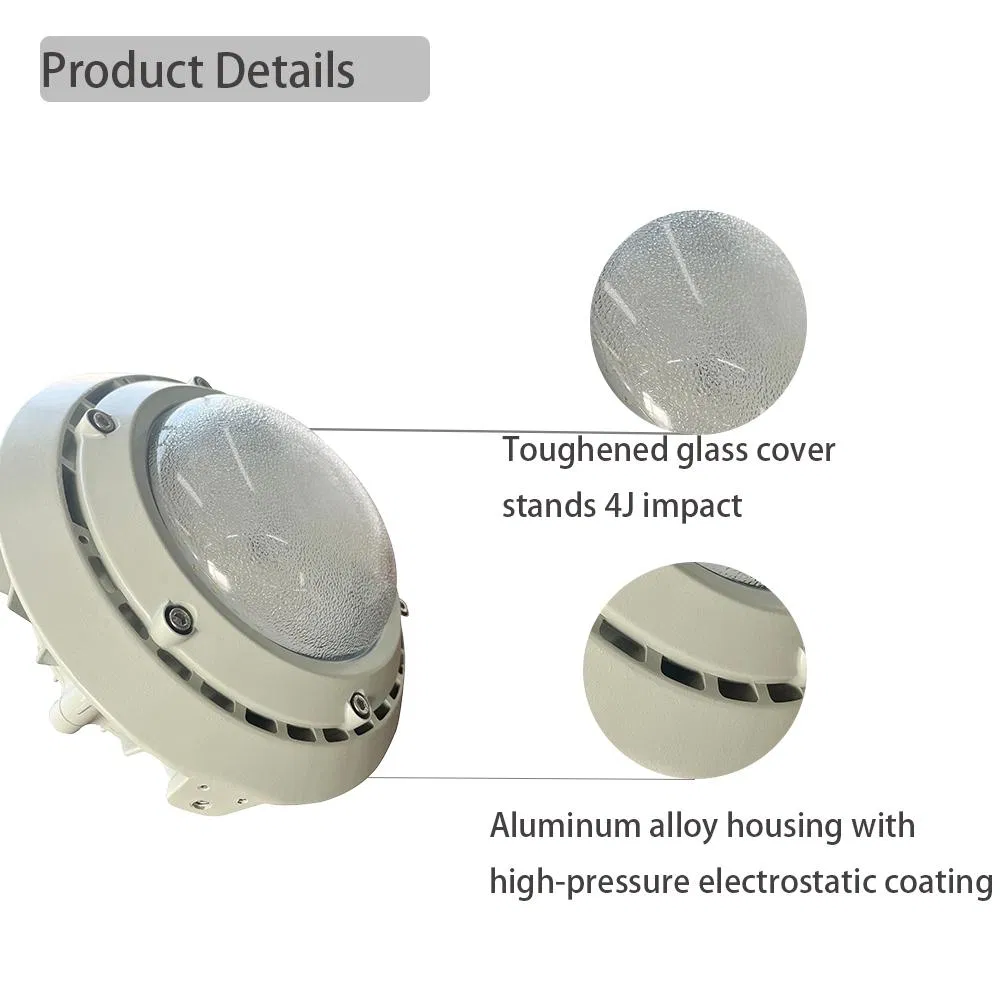

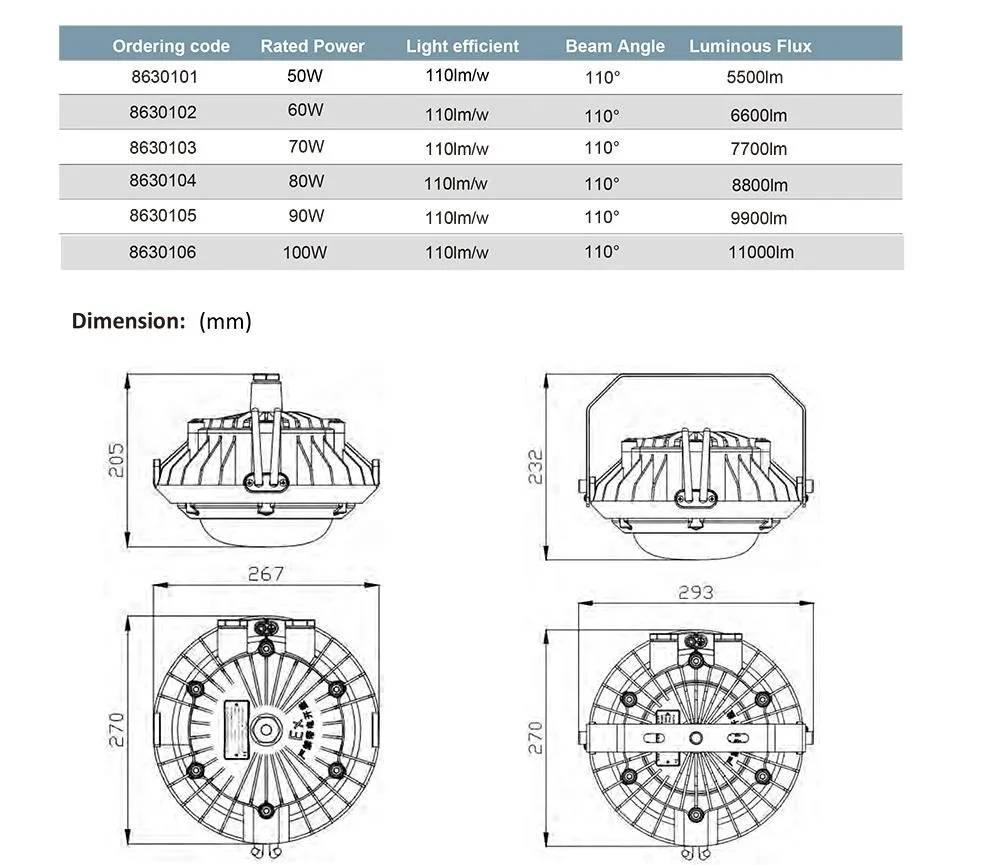

Detailed Photos & Installation

Precautions:
1. Strictly forbidden to disassemble while powered in explosive areas.
2. Protect explosion-proof surfaces during installation; ensure all screws are tightened evenly.
3. Regularly check performance; repairs must be conducted by professionals.
