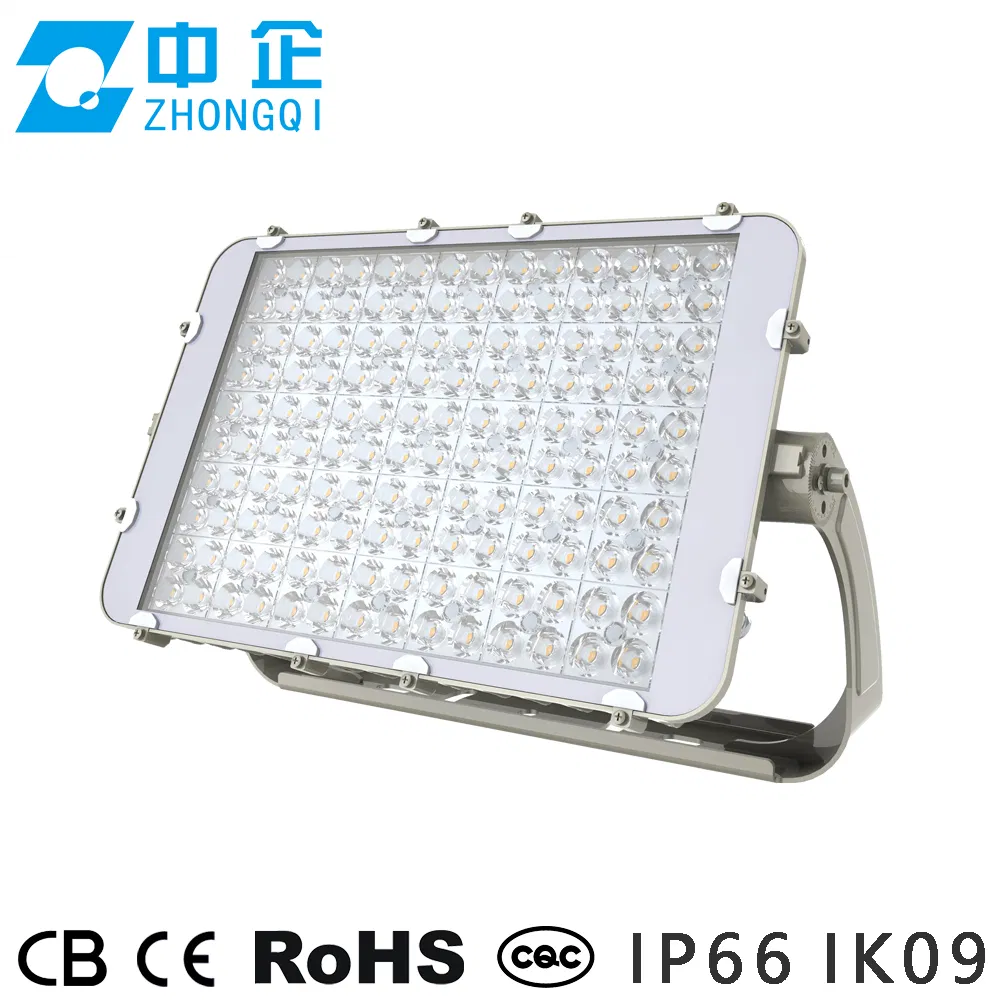

Marine-Grade Corrosion Resistant 400W LED Floodlight SS316 Stainless Bracket IP66 Ik09 1000h Salt Spray Light

1 / 5

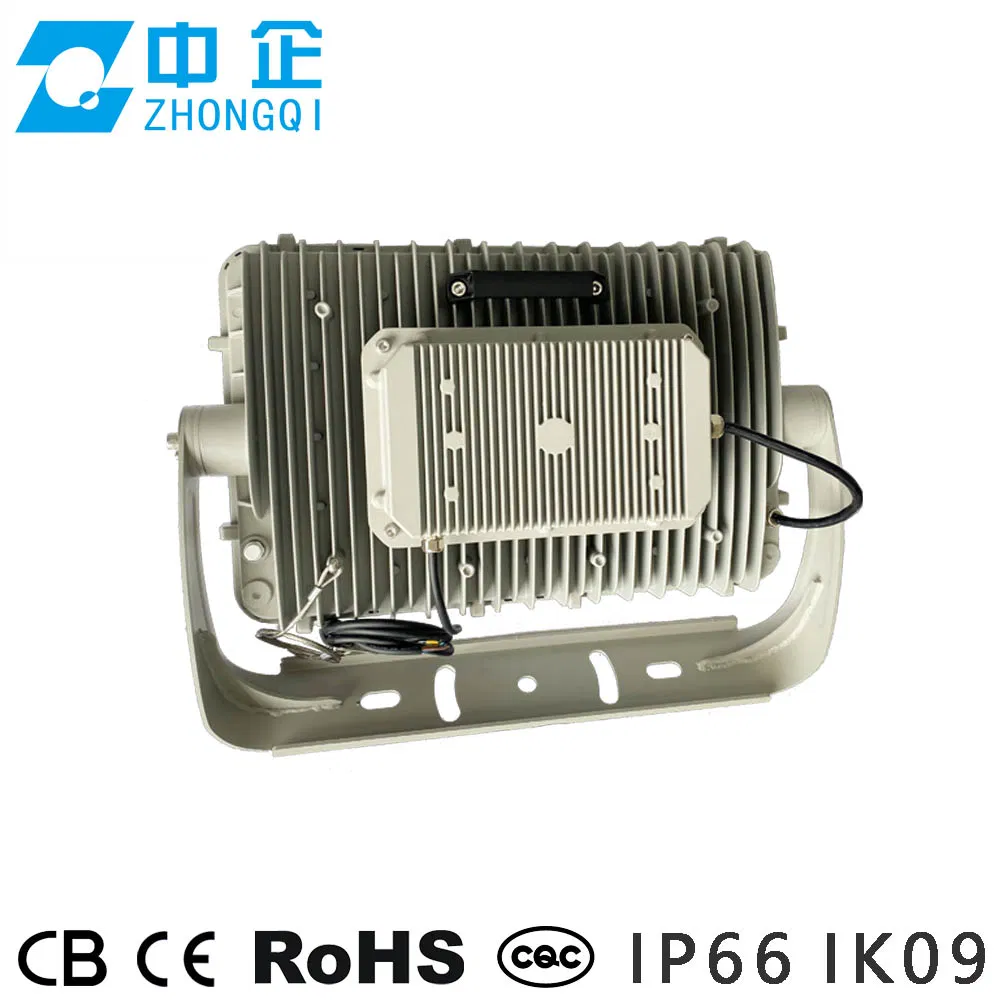

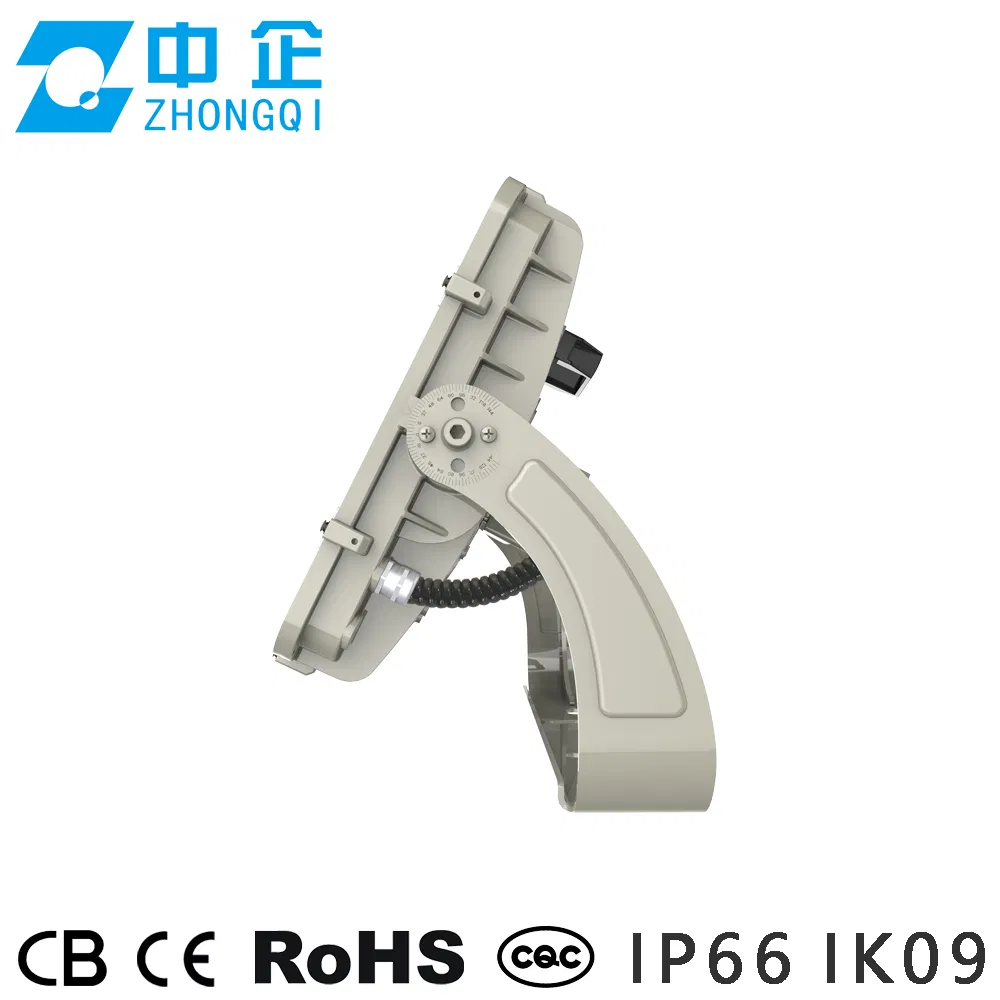

Marine-Grade Corrosion Resistant 400W LED Floodlight SS316 Stainless Bracket IP66 Ik09 1000h Salt Spray Light

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Info

Model NO.

TYZQ-FD019-L

Power

50-400W

IP Rating

IP66

Voltage

100-240V / 90-305V

LED Chips

Epistar 5050 / 3030 / 3535

Beam Angle

8° - 120° / Asymmetric

Material

Die-Casting Aluminum & Tempered Glass

Application

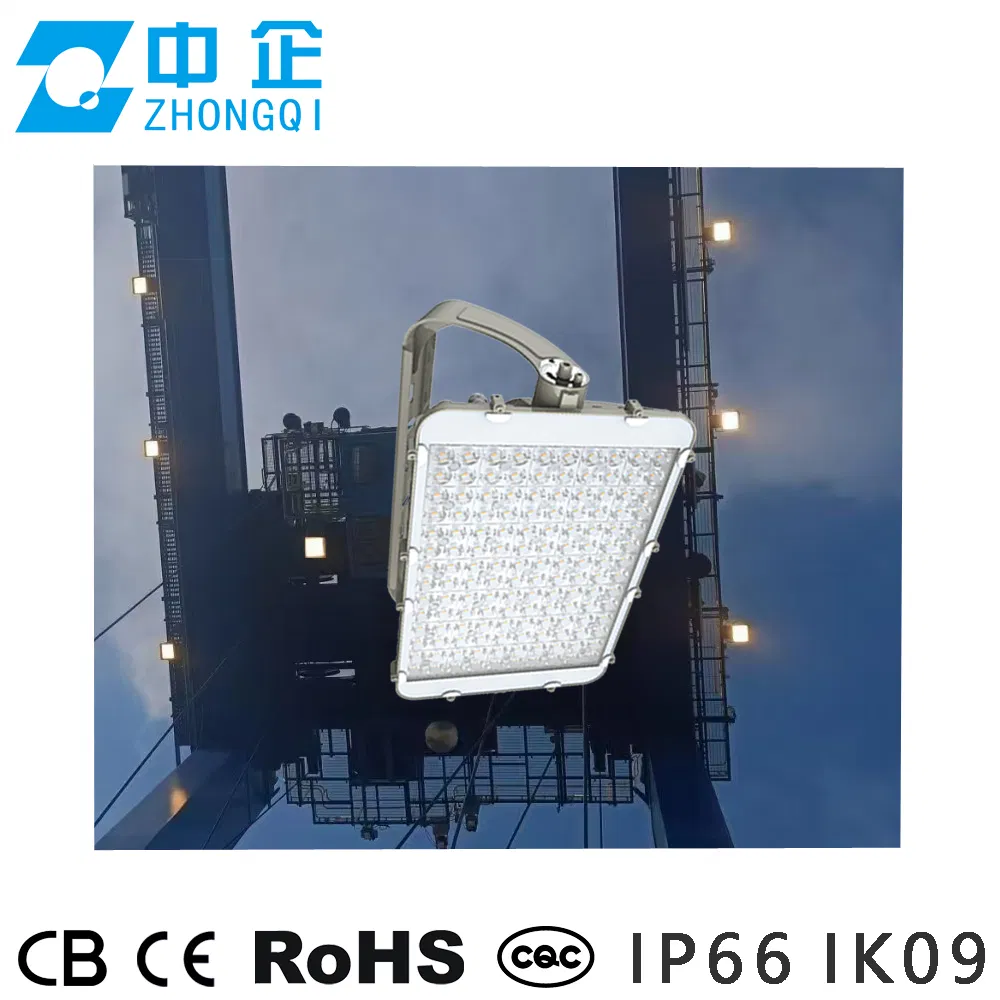

Crane, Harbor, Seaport, Stadium, Airport

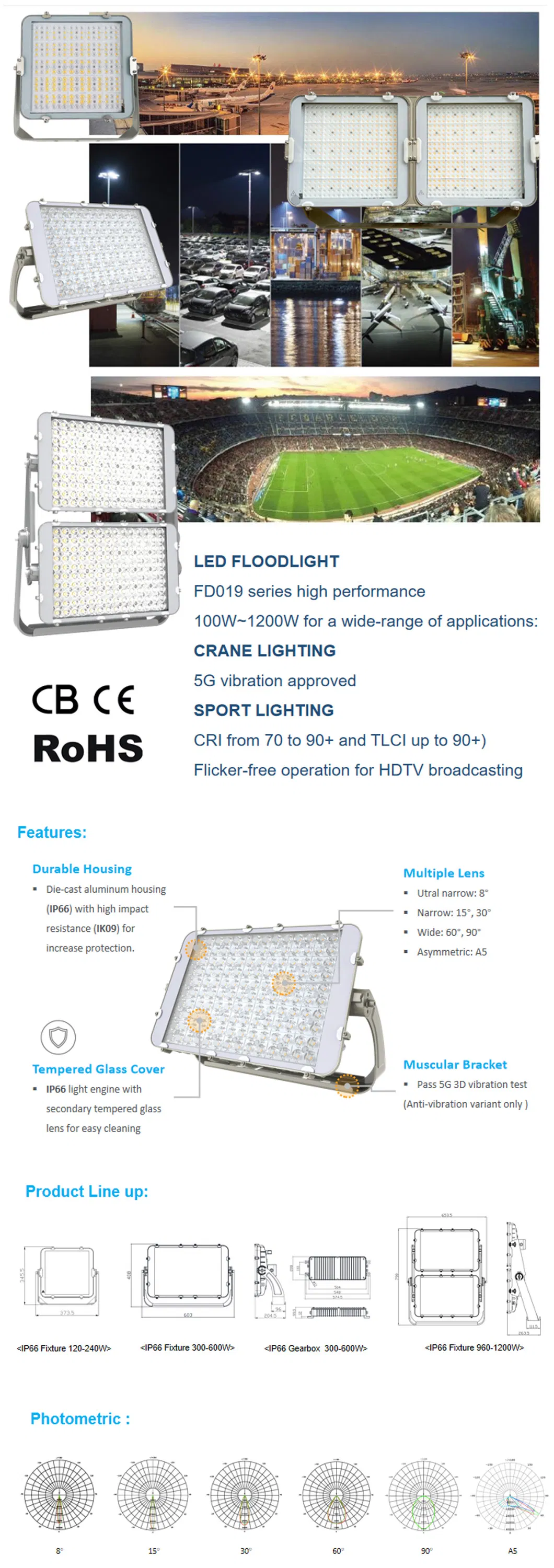

💡 Product Features

FD019 series floodlight born for harsh environment which has high vibration and salt fog.
5G vibration test approved under American standard ANSI C136.31 and Japanese standard JIS C 60068-2-64.
1000 hours salt spray, IP66, IK09 CE CB RoHs certificated.
Die-casting housing with power range from 100W to 1200W.

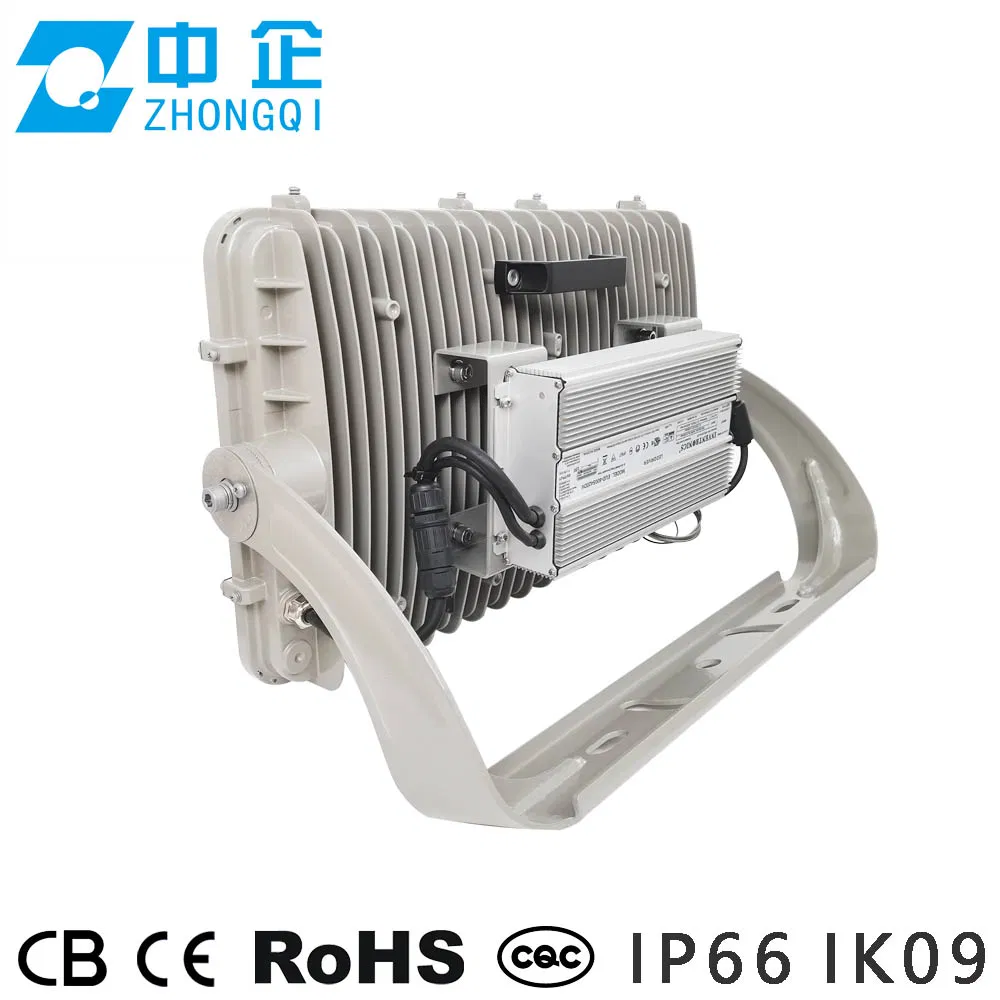

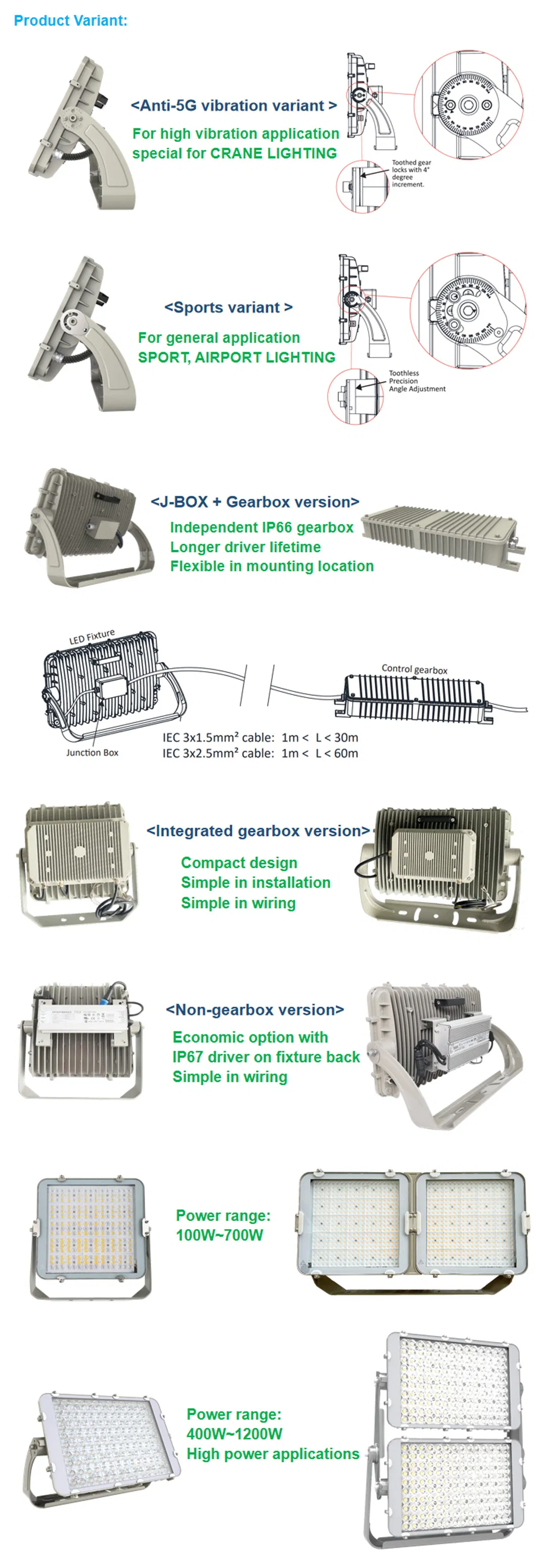

Separate IP66 driver chamber for better heat dissipation and longer lifetime.

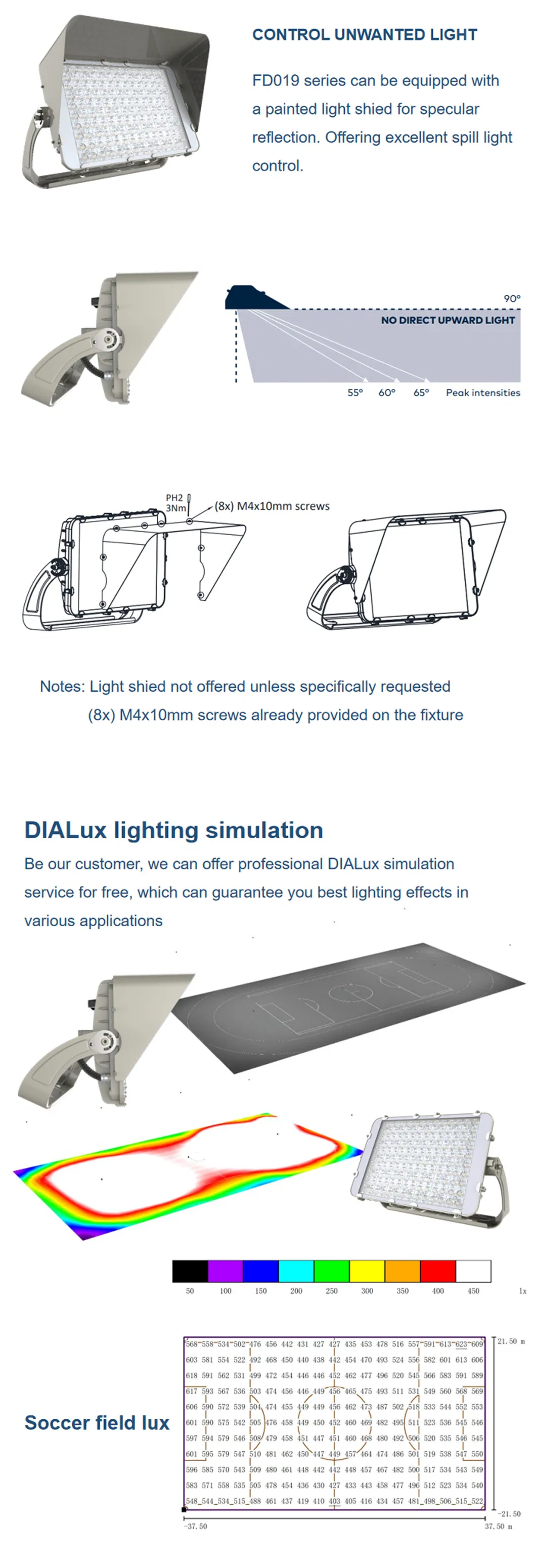

Optic lens options: 8, 15, 25, 30, 60, 90 degree and asymmetric angles.
Standard 1-10V dimming; optional PWM, DALI, and 3-Timer-Modes.

⚙️ Technical Parameters

Product Model	Power(W)	Premium LPW	Standard LPW	N.W.(kg)	Product Size (mm)
TYZQ-FD019	100W	150 lm/W	130 lm/W	7.10	346370152
TYZQ-FD019	150W	150 lm/W	130 lm/W	7.10	346370152
TYZQ-FD019	200W	150 lm/W	130 lm/W	7.30	346370152
TYZQ-FD019	300W	150 lm/W	130 lm/W	17.30	605408204
TYZQ-FD019	400W	150 lm/W	130 lm/W	17.40	605408204
TYZQ-FD019	600W	150 lm/W	130 lm/W	14.3 + 7.2	605408204
TYZQ-FD019	1200W	150 lm/W	130 lm/W	30 + 10.2	790653263

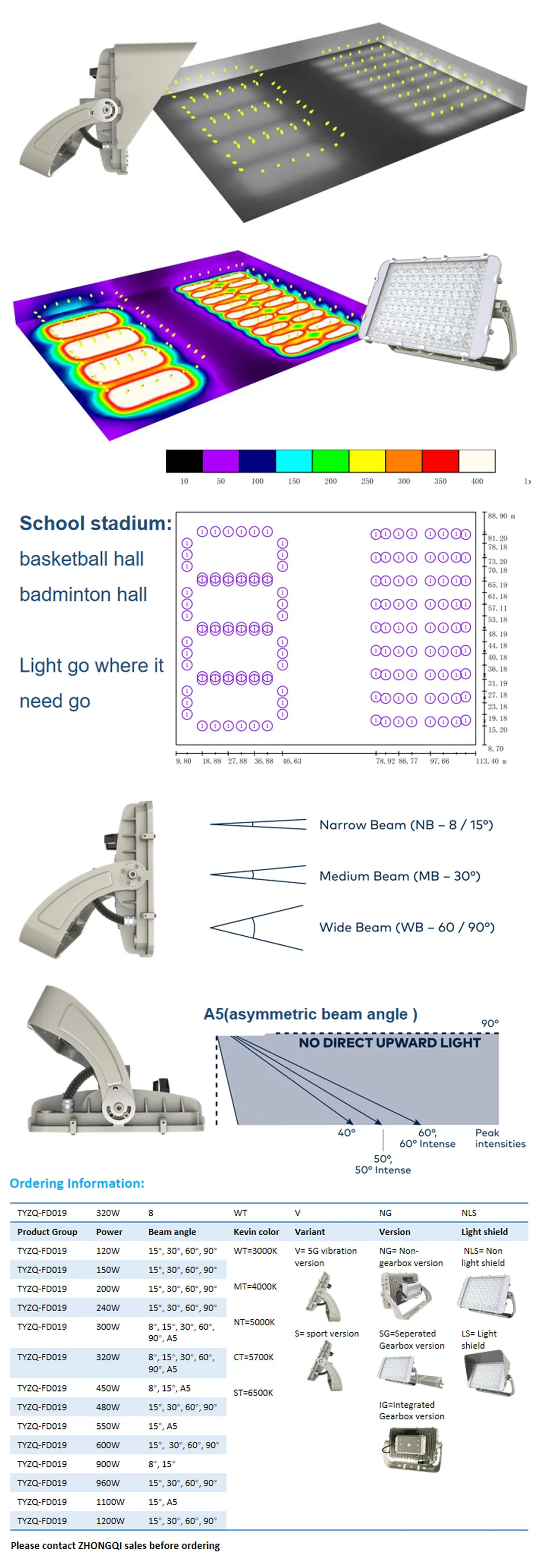

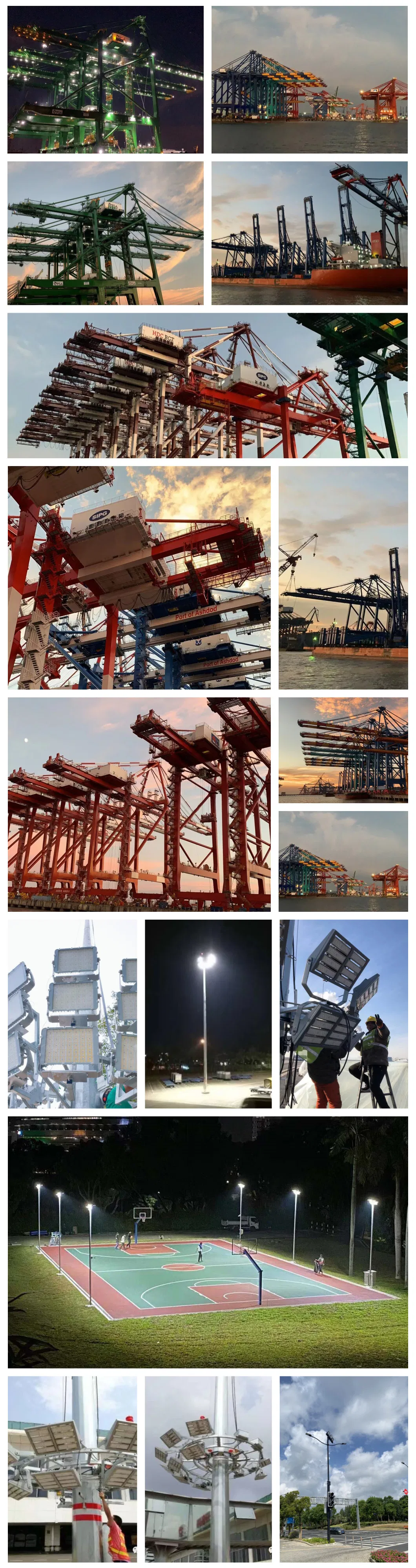

🏞️ Product Applications

🔍 Product Details

🏭 Production & Packaging

❓ Frequently Asked Questions

Can I have a sample before quantity orders?

Yes, we welcome sample orders for your approval and testing.

What about lead time?

Samples take 3-5 days, while quantity orders typically require 25-30 days.

Is ODM or OEM accepted?

Yes, we provide professional ODM and OEM services to meet your specific requirements.

How long is the warranty for your products?

We offer a 2-5 year warranty depending on the product configuration.

What are the payment terms?

Our standard terms are a 30% TT deposit and 70% balance payment before shipment.

Are these lights suitable for marine environments?

Absolutely. These lights feature 1000h salt spray resistance and 5G vibration approval, specifically for harbors and seaports.
