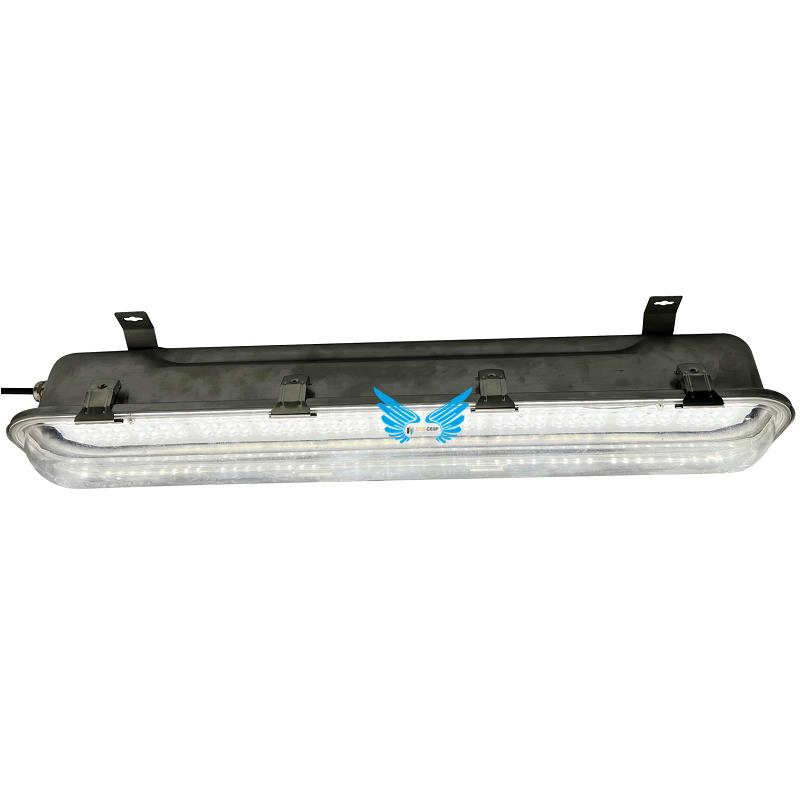

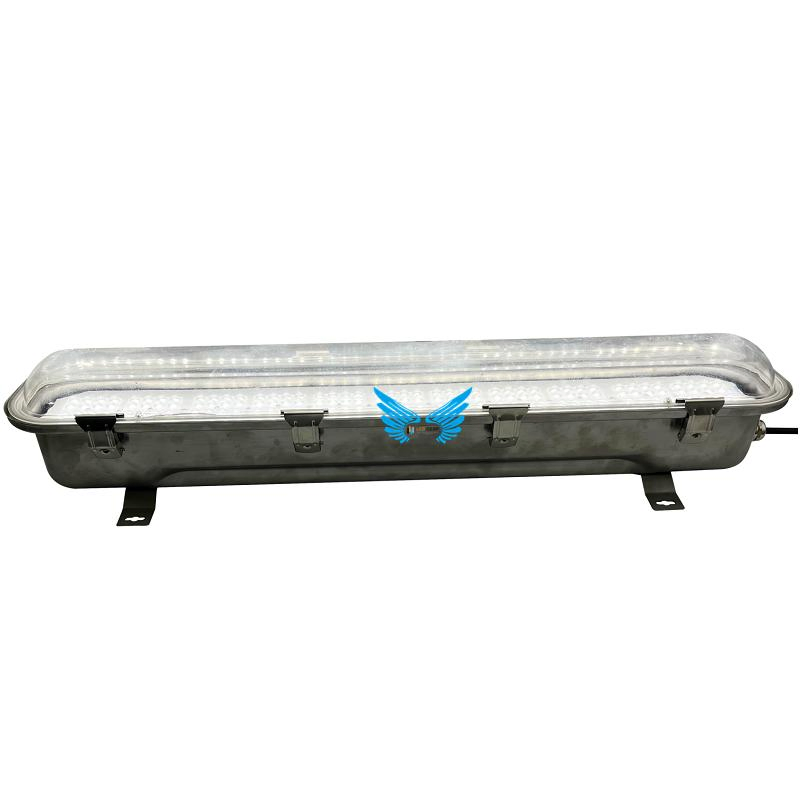

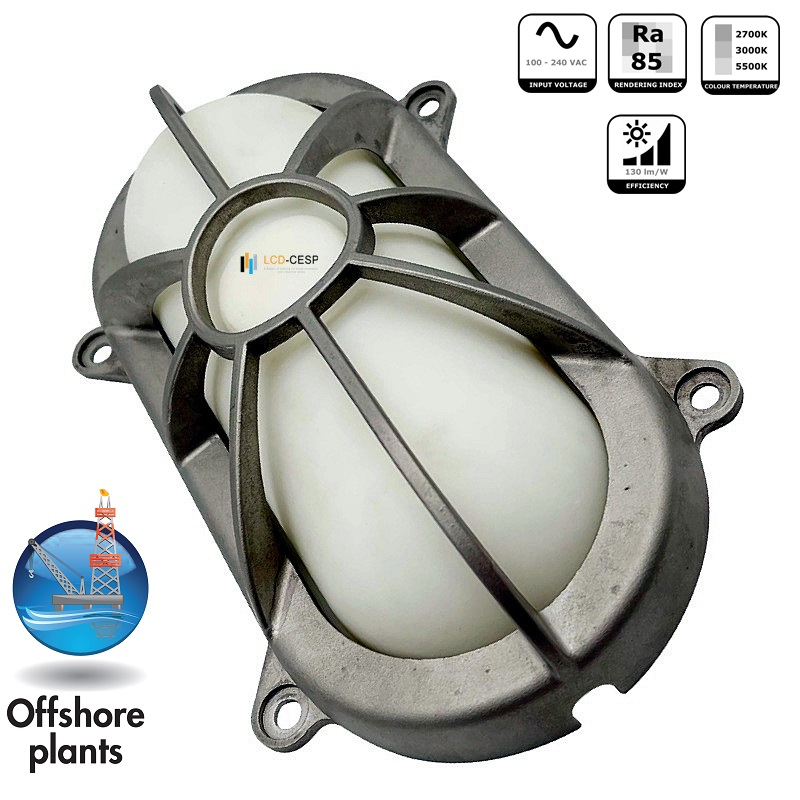

Marine-Grade Bulkhead Light 40W-150W, LED, 240VAC, Stainless Steel Commercial Marine Ship Lighting
Marine-Grade Bulkhead Light 40W-150W, LED, 240VAC, Stainless Steel Commercial Marine Ship Lighting
Marine-Grade Bulkhead Light 40W-150W, LED, 240VAC, Stainless Steel Commercial Marine Ship Lighting
Marine-Grade Bulkhead Light 40W-150W, LED, 240VAC, Stainless Steel Commercial Marine Ship Lighting
Marine-Grade Bulkhead Light 40W-150W, LED, 240VAC, Stainless Steel Commercial Marine Ship Lighting
1 / 5
Marine-Grade Bulkhead Light 40W-150W, LED, 240VAC, Stainless Steel Commercial Marine Ship Lighting
Marine-Grade Bulkhead Light 40W-150W, LED, 240VAC, Stainless Steel Commercial Marine Ship Lighting
Marine-Grade Bulkhead Light 40W-150W, LED, 240VAC, Stainless Steel Commercial Marine Ship Lighting
Marine-Grade Bulkhead Light 40W-150W, LED, 240VAC, Stainless Steel Commercial Marine Ship Lighting
Marine-Grade Bulkhead Light 40W-150W, LED, 240VAC, Stainless Steel Commercial Marine Ship Lighting

Marine-Grade Bulkhead Light 40W-150W, LED, 240VAC, Stainless Steel Commercial Marine Ship Lighting

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO. LCD-CFL-SS-083-LN10x20 Feature Anti-corrosion, Dust-Proof, Waterproof
Light Body Material Stainless Steel SST316 IP Rate IP65 / IP66 / IP67 / IP69K
IK Rate IK07 / IK10 CCT 2700-6500K
Lumen Output 120-150lm/W Voltage AC100-277V 50/60Hz / 20-32VDC
Lifespan 50,000 Hours HS Code 9405421000

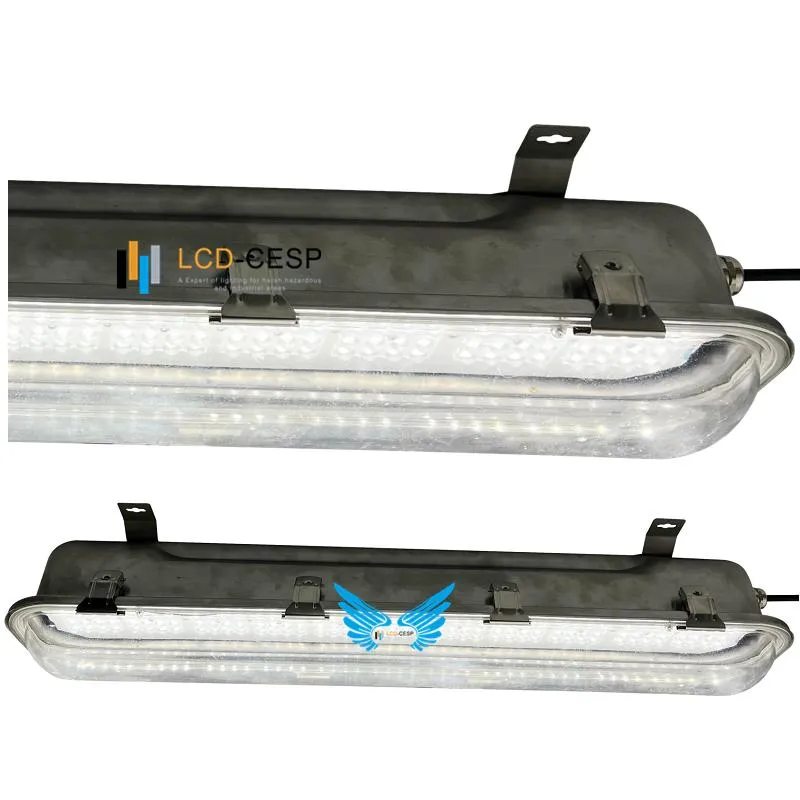

Marine-Grade Bulkhead Light

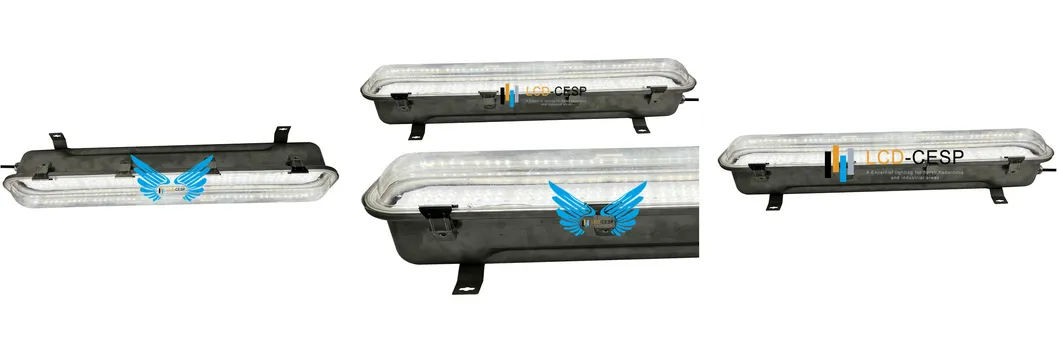

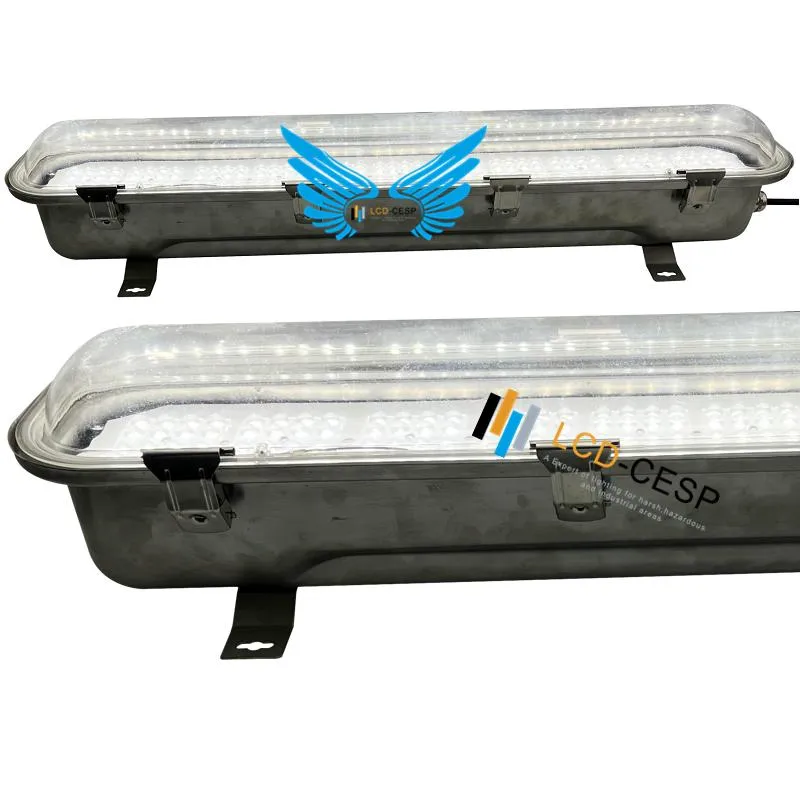

Bulkhead Light Detail
🌟

Key Features

✓
High Durability: Stainless-steel SST316 housing for aggressive media and chemical resistance.
✓
Industrial Protection: IP69K anti-high pressure water washer and IP67 waterproof rating.
✓
Impact Resistant: Toughened protective glass with IK07 (PMMA) or IK10 (PC) options.
✓
Advanced Optics: System efficiency up to 150lm/w with flicker-free driver and high CRI options.
✓
Extreme Conditions: Operating temperature range from -40°C to +55°C.
✓
Emergency Ready: Compatible with emergency control units and battery backup.

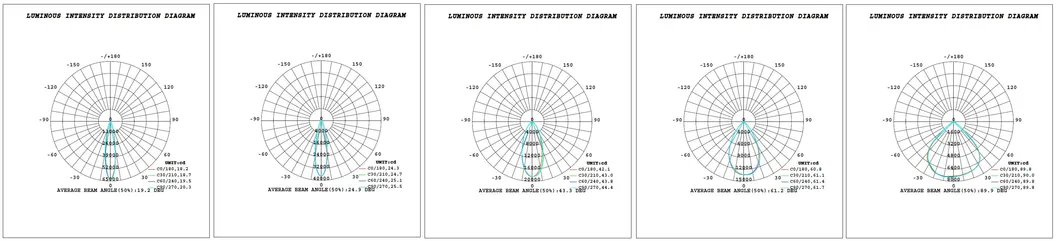

Light Distribution Chart

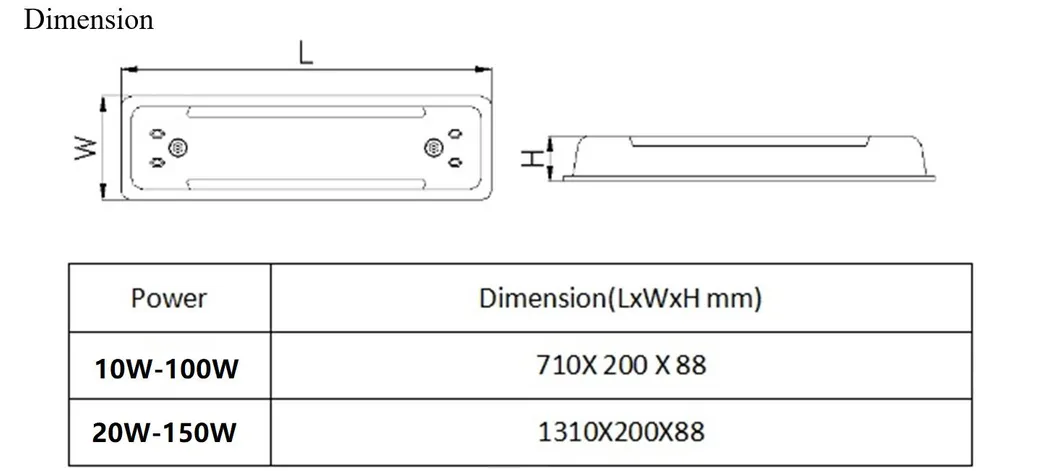

Dimensions
Technical Specifications Chart
⚓

Applications

Perfectly suited for harsh and hazardous environments including:

Offshore Platforms Petrochemical Industry Marine Ships & Docks Boiler Rooms Food Processing Factories Pump Rooms Laboratories Oil Fields
🛠️

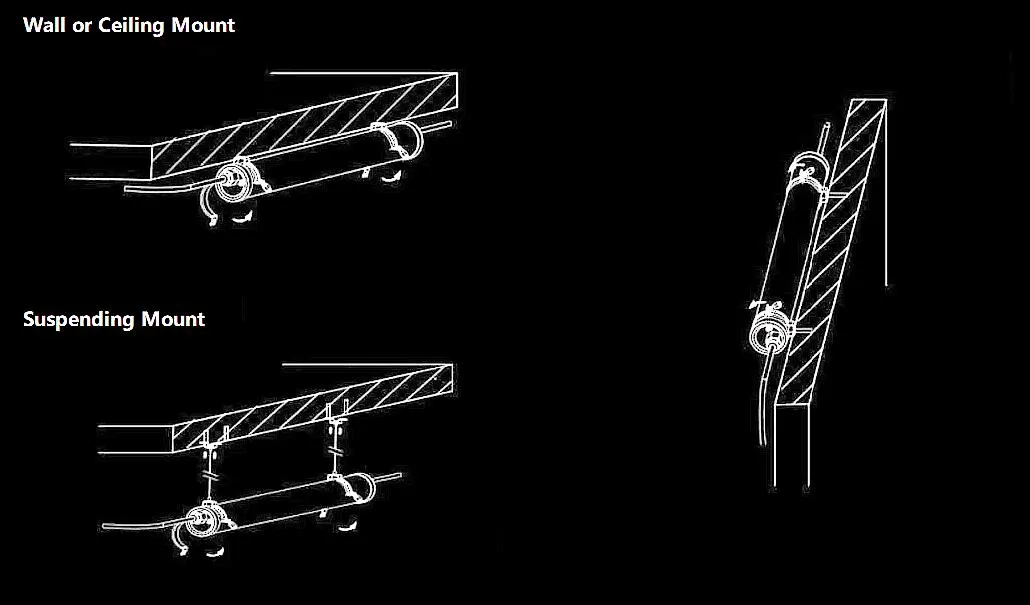

Installation Methods

Installation Methods
  • Ceiling Mount
  • Chain Suspension
  • Hook Mount
  • Surface Mount
❓

Frequently Asked Questions

Q1: What makes this light suitable for marine environments? A: The housing is made of SST316 Stainless Steel, which provides exceptional resistance to salt spray, corrosive media, and aggressive industrial environments.
Q2: Can these lights be used in explosive gas or dust zones? A: Yes, they are designed for Zone 1 & Zone 2 (Gas) as well as Zone 21 & Zone 22 (Dust) with Ex eq II T6 Gb/Ext III BT85ºC Db markings.
Q3: What is the difference between IP67 and IP69K ratings? A: IP67 allows for temporary immersion in water, while IP69K provides protection against high-pressure (100bar) and high-temperature (80ºC) water jets, ideal for heavy-duty cleaning.
Q4: Is there an emergency option available? A: Yes, the design allows for the installation of an emergency control unit with an integrated battery for backup power.
Q5: What is the warranty period for the fixture? A: We provide a 5-year warranty covering the complete fixture, including the LED driver and the stainless steel housing.
Q6: What lens materials are available for impact protection? A: You can choose between a PMMA tube for an IK07 impact rating or a PC (Polycarbonate) tube for an IK10 impact rating.
