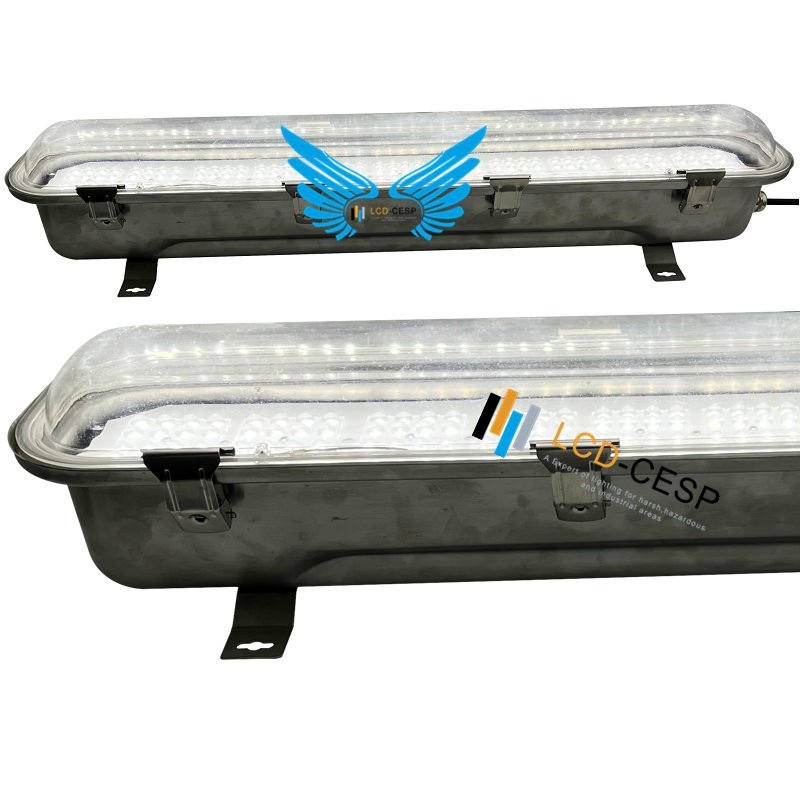

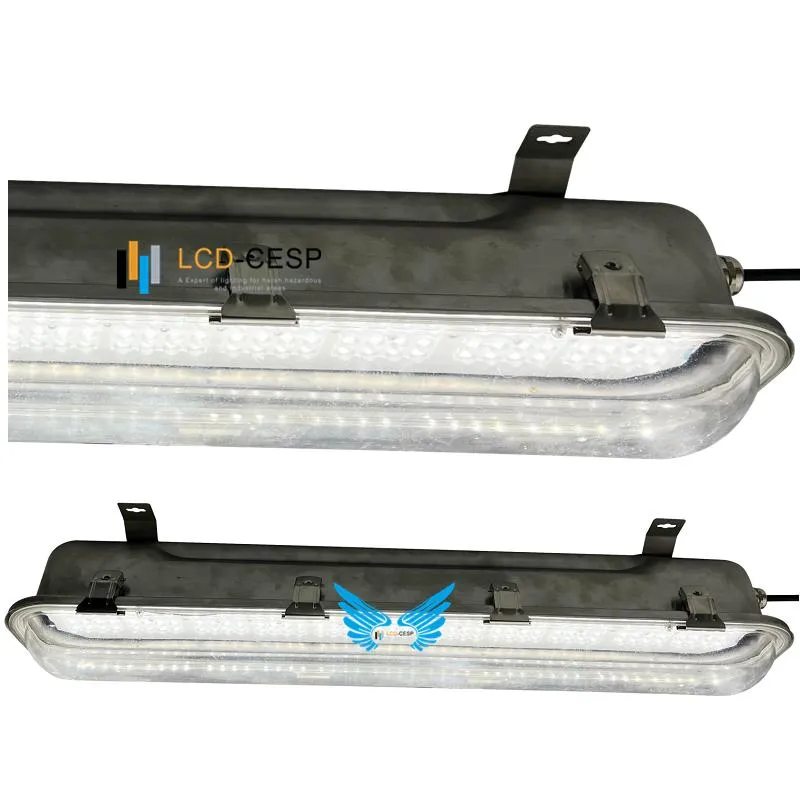

Product Description
Key Features:
- ✓High Durability: SST316 stainless-steel housing designed for aggressive media and chemical resistance.
- ✓Long Service Life: Advanced LED tube application significantly reduces maintenance costs.
- ✓Emergency Ready: Option to install an emergency control unit with an integrated battery.

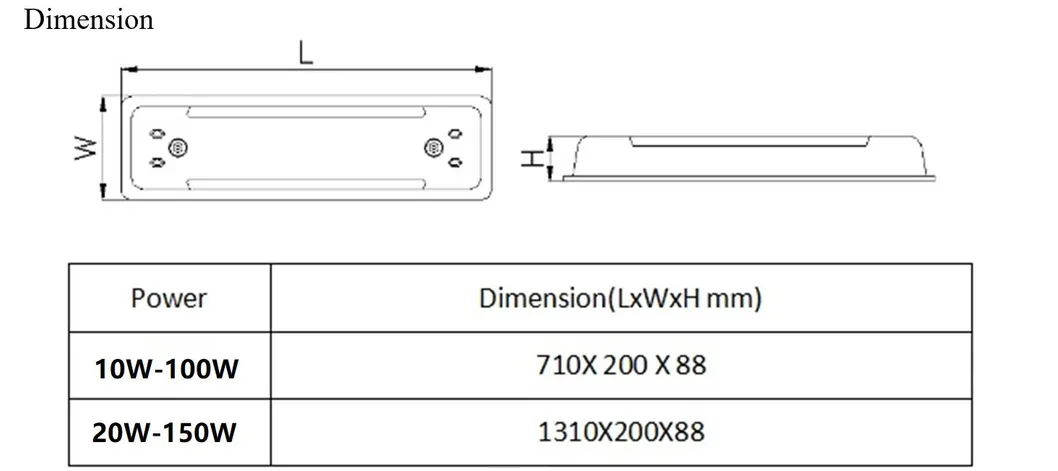

- ✓Dual Dimensions: Two housing sizes available based on power requirements (2×10, 2×20).
- ✓Protective Glass: Toughened, extra-strong glass with high light transmittance.
Wide Applications:
Perfectly suited for distribution rooms, boiler rooms, corridors, trestles, offshore platforms, and harsh petrochemical environments including oil fields, power plants, and marine vessels (ships, docks, ports).
| Ex-mark | Ex eq II T6 Gb/Ext III BT85ºC Db |
| Rated Voltage | AC100-277V 50/60Hz |
| Luminous Flux | 1300 / 2600 / 5200 LM |
| Color Temp | 3000/4000/6500K |
| Ambient Temp | -40°C ~ +55°C |
| IP Grade | IP66 |
| Cable Entry | M25X1.5(2pcs), cable dia 10-14mm |
| Installation | Ceiling / Chain / Hook |

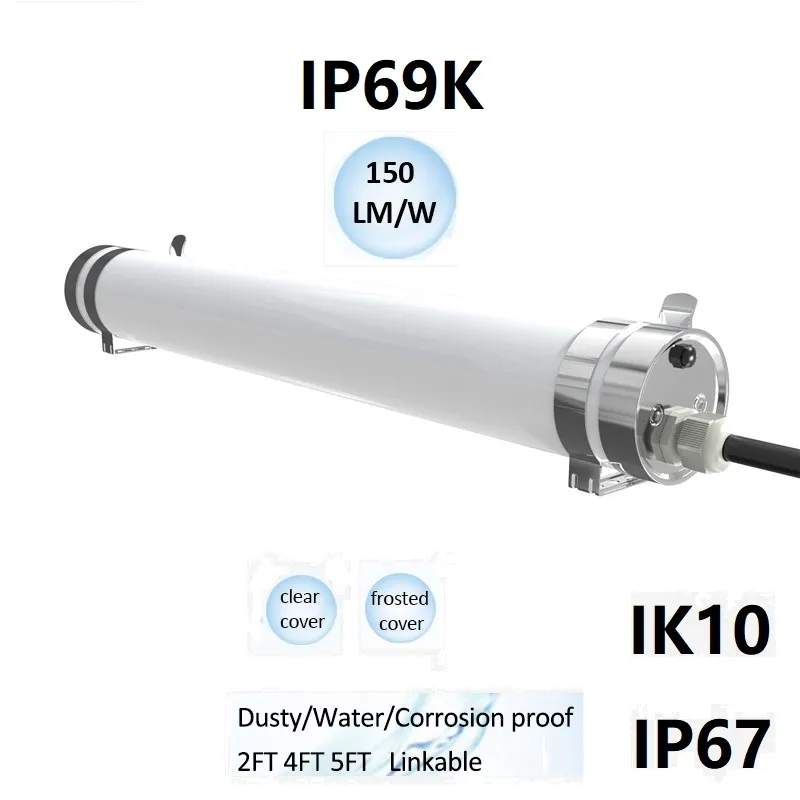

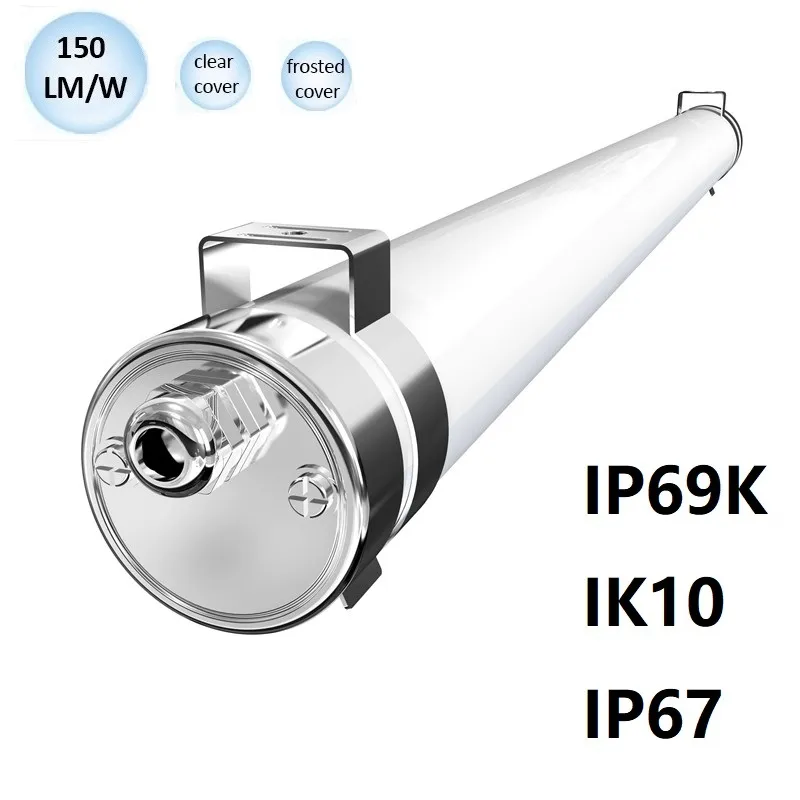

IP69K Tri-proof LED Specification
Life Time50000h
CRI>80 or >97
IP GradeIP69K & IP67
Lumen Eff.130lm/W - 150lm/W
Beam Angle180° or 360°
Warranty5 Years
Advanced Protection:
- ★Anti-High pressure water washer IP69K.
- ★Against water pressure of 100bar (1450psi) and 80ºC temperature.
- ★Anti-ammonia steam, suitable for specialized industrial use.
- ★UGR<19 option for superior visual comfort.
- ★Flicker-free driver with instant 100% luminous flux.
Indoor Applications:
Lab, Food process factory, Schools, Hospitals, Kitchens, and Dining halls.
Frequently Asked Questions
What is the advantage of SST316 Stainless Steel housing?
SST316 is one of the most chemically resistant materials available, making it ideal for industries with aggressive media and high-corrosion environments.
What does the IP69K rating provide?
The IP69K rating ensures the light is protected against high-pressure water jets (up to 100bar) and high temperatures (80ºC), which is essential for wash-down environments.
Can these lights be used in hazardous gas or dust zones?
Yes, they are designed for Zone 1 & Zone 2 (Gas) and Zone 21 & Zone 22 (Dust) applications, meeting IEC60079 standards.
How long is the warranty period for these fixtures?
We provide a comprehensive 5-year warranty covering the complete fixture, including the LED engine, driver, and housing.
Are there different mounting options available?

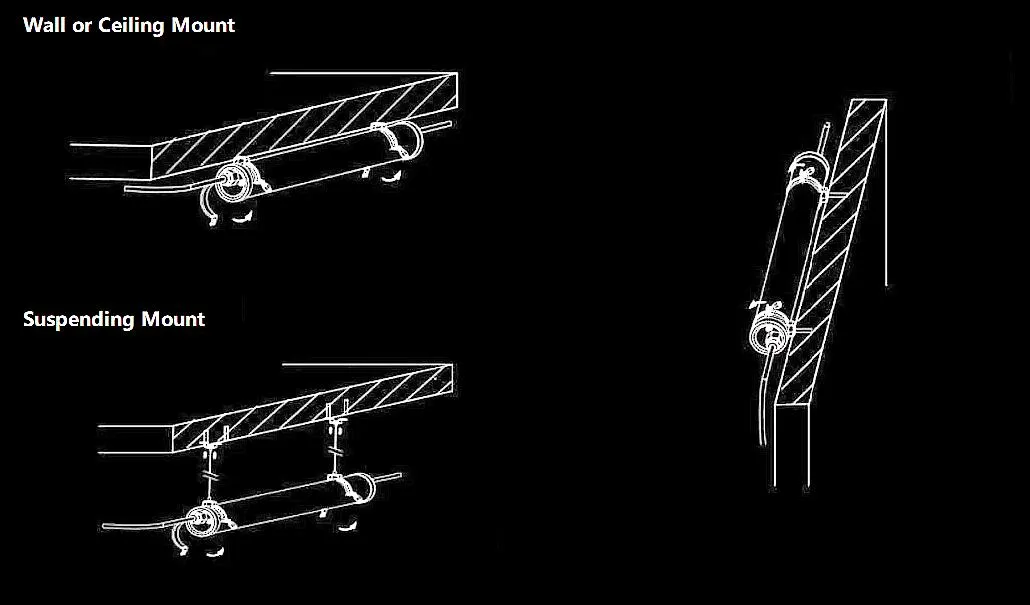

Yes, the fixtures support multiple installation methods including Ceiling, Chain, Hook, and Surface Mount or Suspended options.
What is the color rendering index (CRI) of these lights?
The products offer high CRI options of >80 or full spectrum >97, which is beneficial for human health and accurate color representation.
