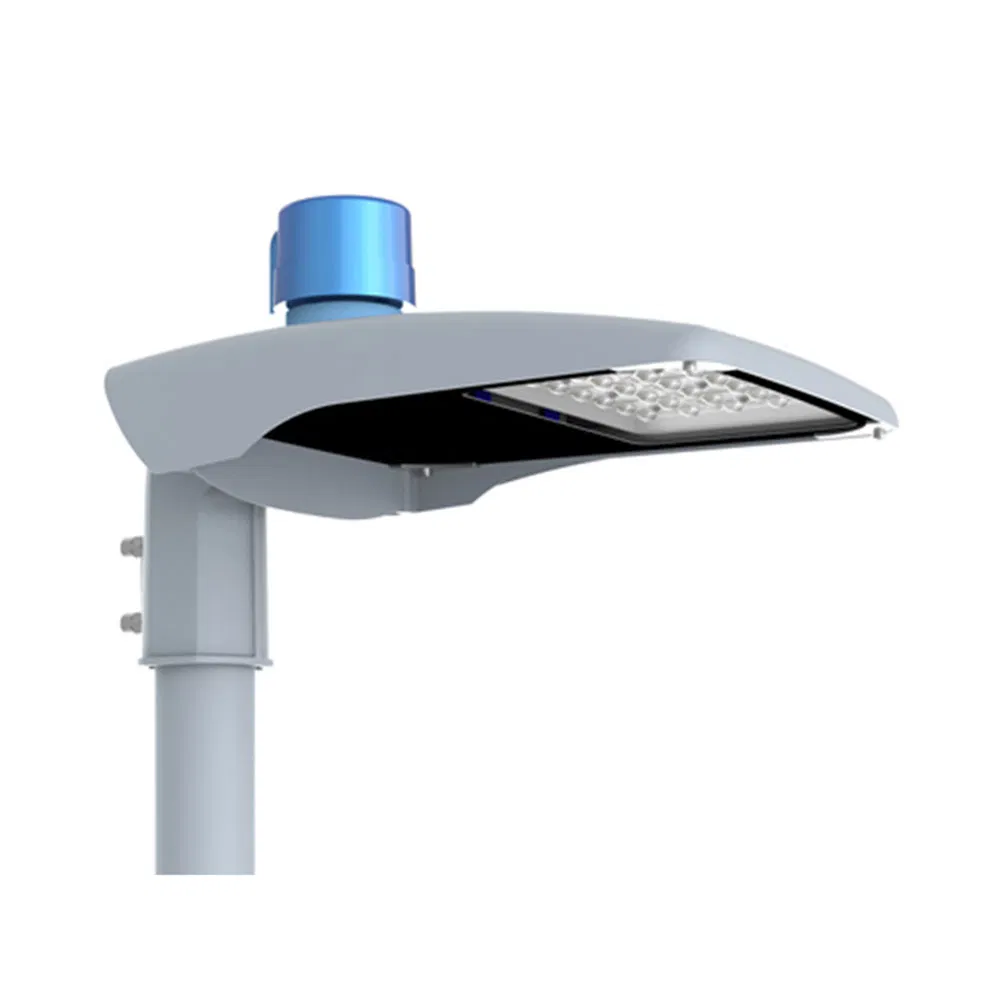

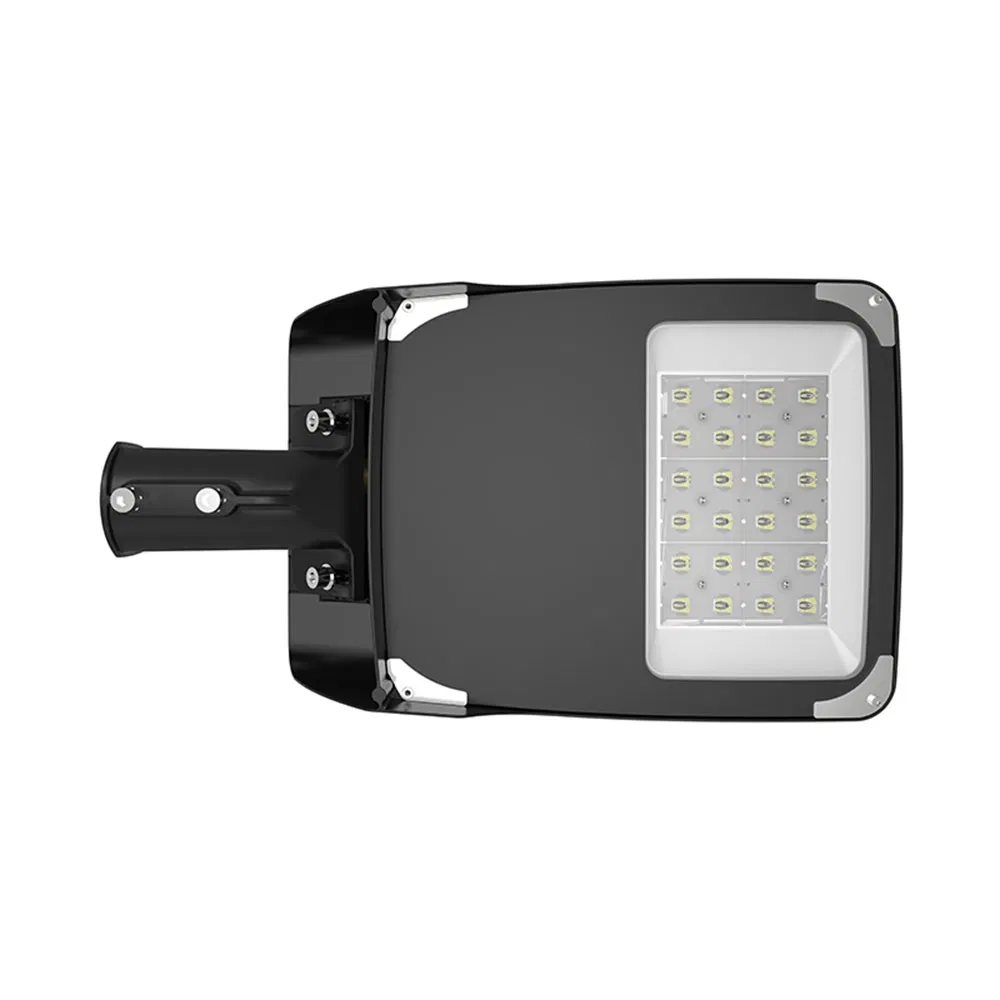

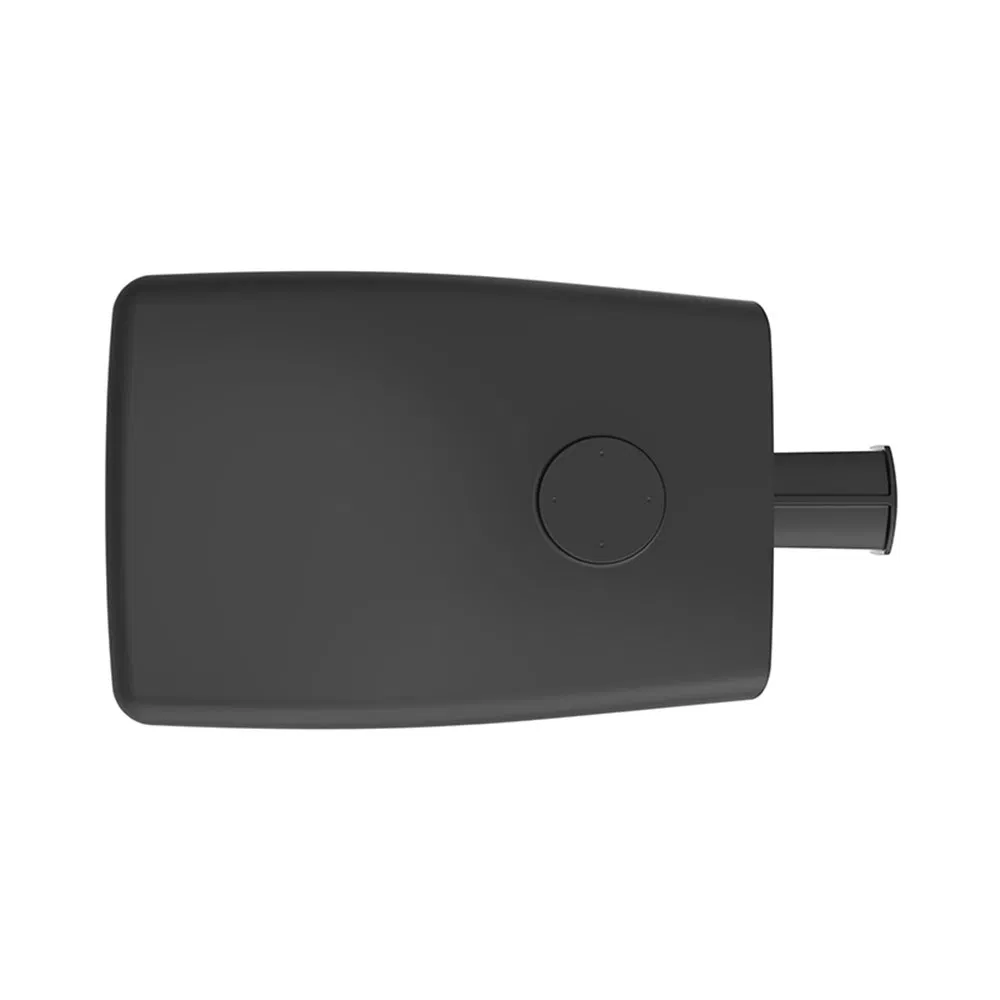

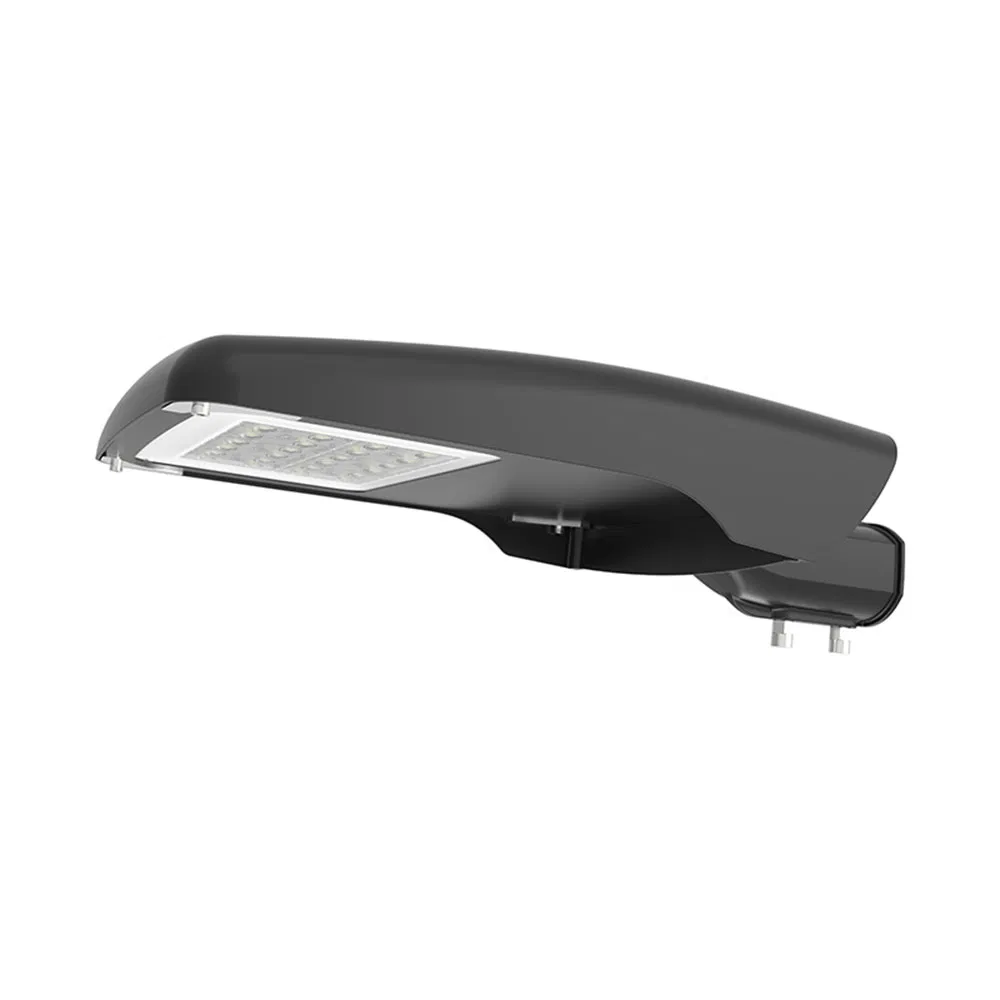

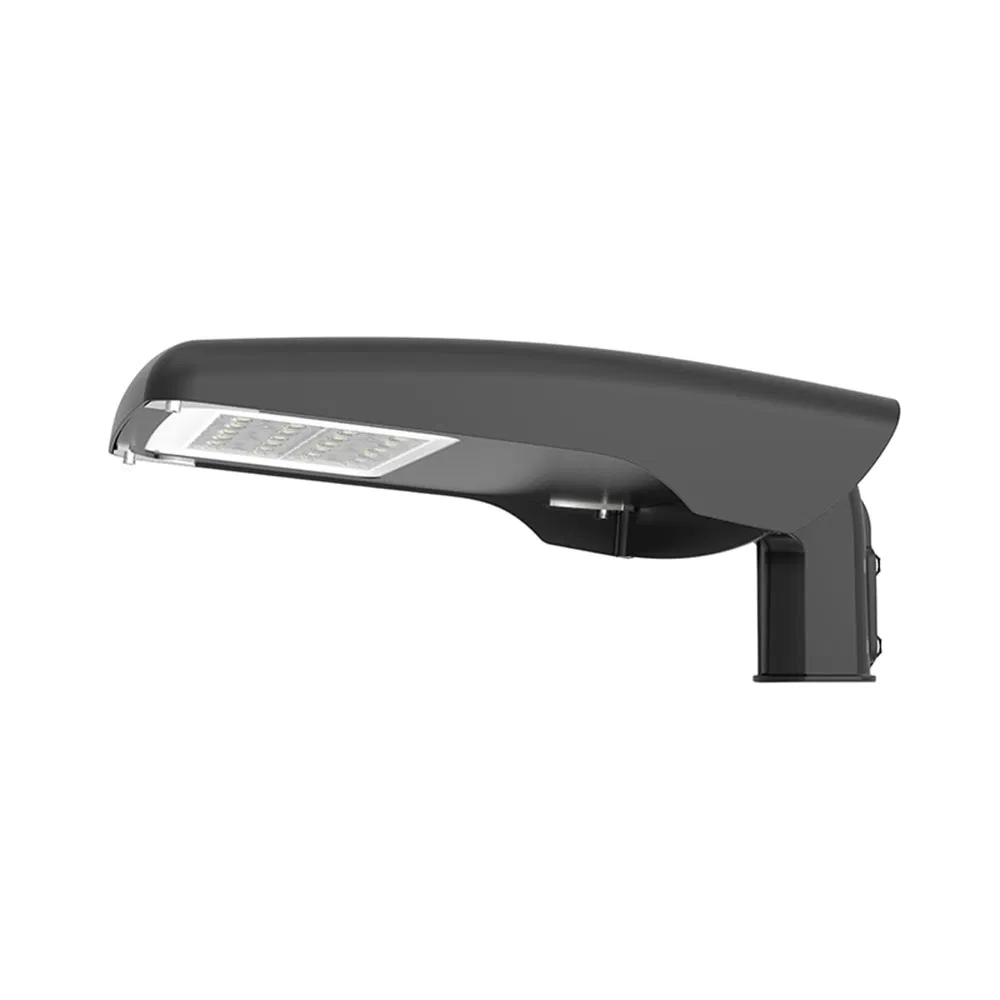

LED Street Light YASL-24 Series

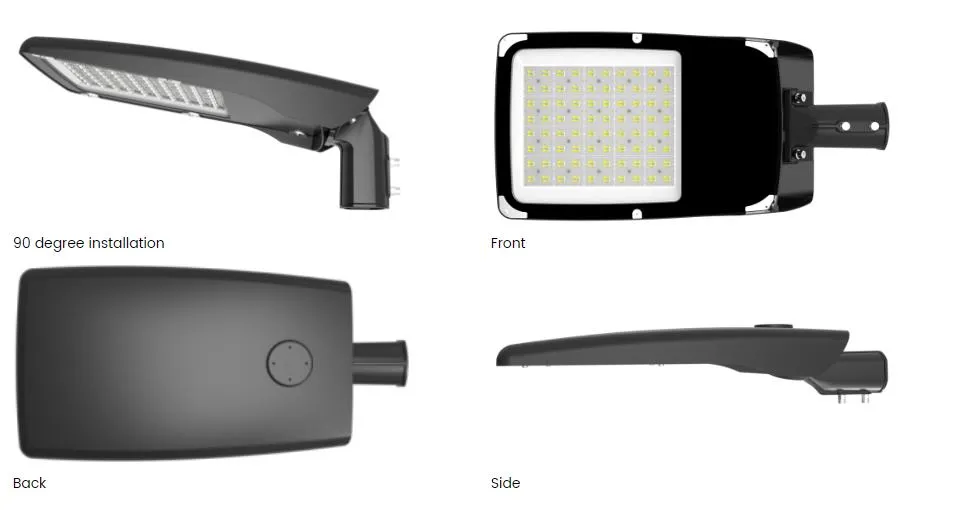

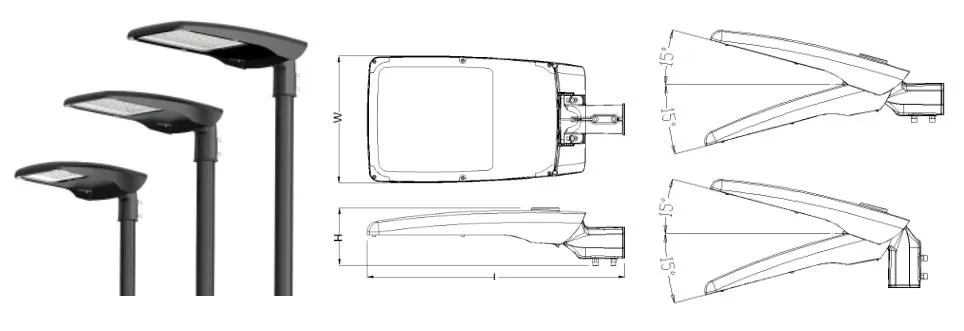

Flexible Installing Ways: Both Horizontal and Vertical available with adjustable angle from -15° to +15°.
This high-performance street lighting series is manufactured from high-pressure die-casting aluminum, ensuring durability and efficient heat dissipation.
Efficiency High Efficiency: LED efficiency up to 130 lm/w, capable of producing up to 26,000 luminaire lumens at 4000K.

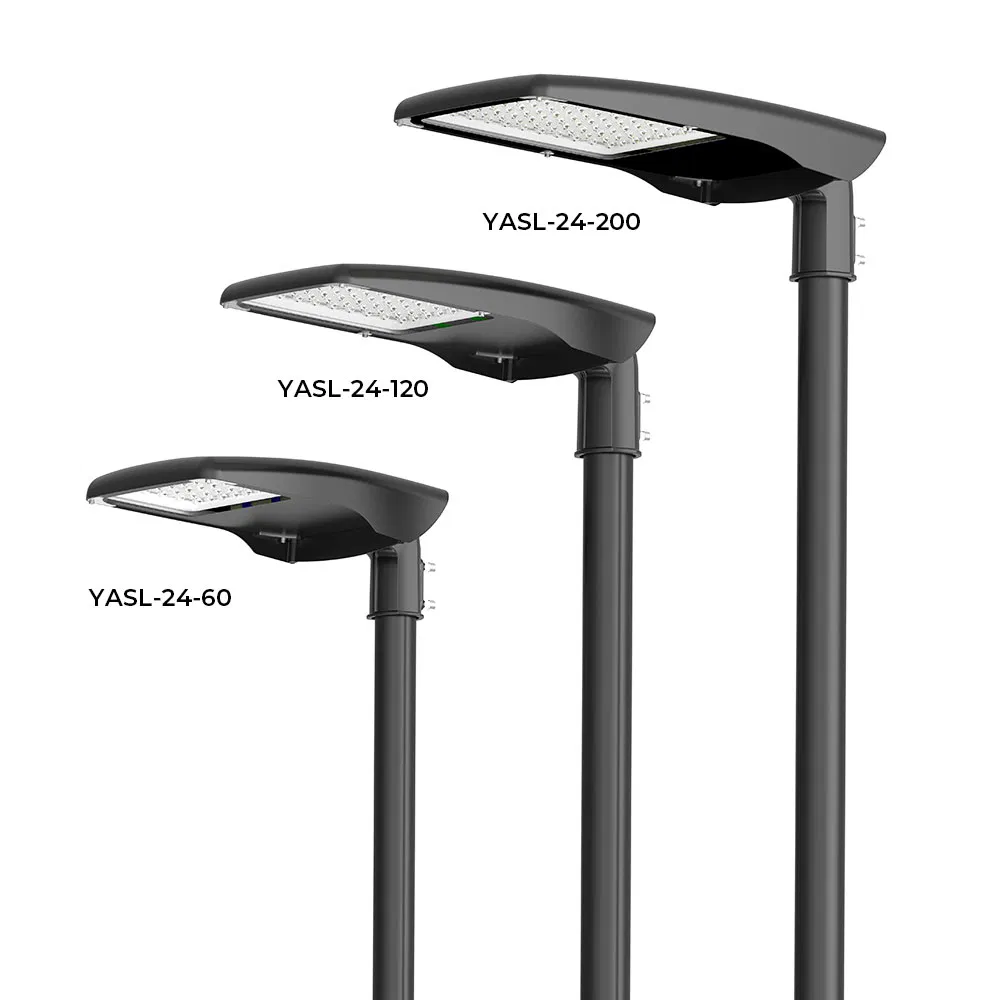

| Specification | YASL-24-60 | YASL-24-120 | YASL-24-200 |
|---|---|---|---|
| Input Wattage | 20W - 60W | 80W - 120W | 150W - 200W |
| Pipe Diameter | φ45/60mm | φ45/60mm | φ45/60mm |
| Installation Height | 4-8m | 6-12m | 10-14m |
| Input Voltage | 90~305Vac, 50/60Hz | ||
| Power Factor | ≥0.9 | ||
| Color Temperature | 4000K (3000K/5000K/5700K optional) | ||
| Physical Requirements | ||
| Housing Material | Heavy-duty rugged pressure die-cast aluminium alloy | ISO 3522 |
| Cover | Tempered Glass | - |
| IP/IK Rating | IP66 / IK08 | IEC 60529/62262 |
| LED & Optics | ||
| LED Source | Osram/CREE High power LED | - |
| LED Life | >100,000 hours @L95 | LM80 / TM21 |
| Performance | ||
| Lumen Efficacy | ≥ 160lm/W (at 25°C ambient) | LM-79 |
| Surge Protection | 10KV | - |
