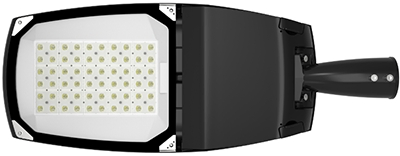

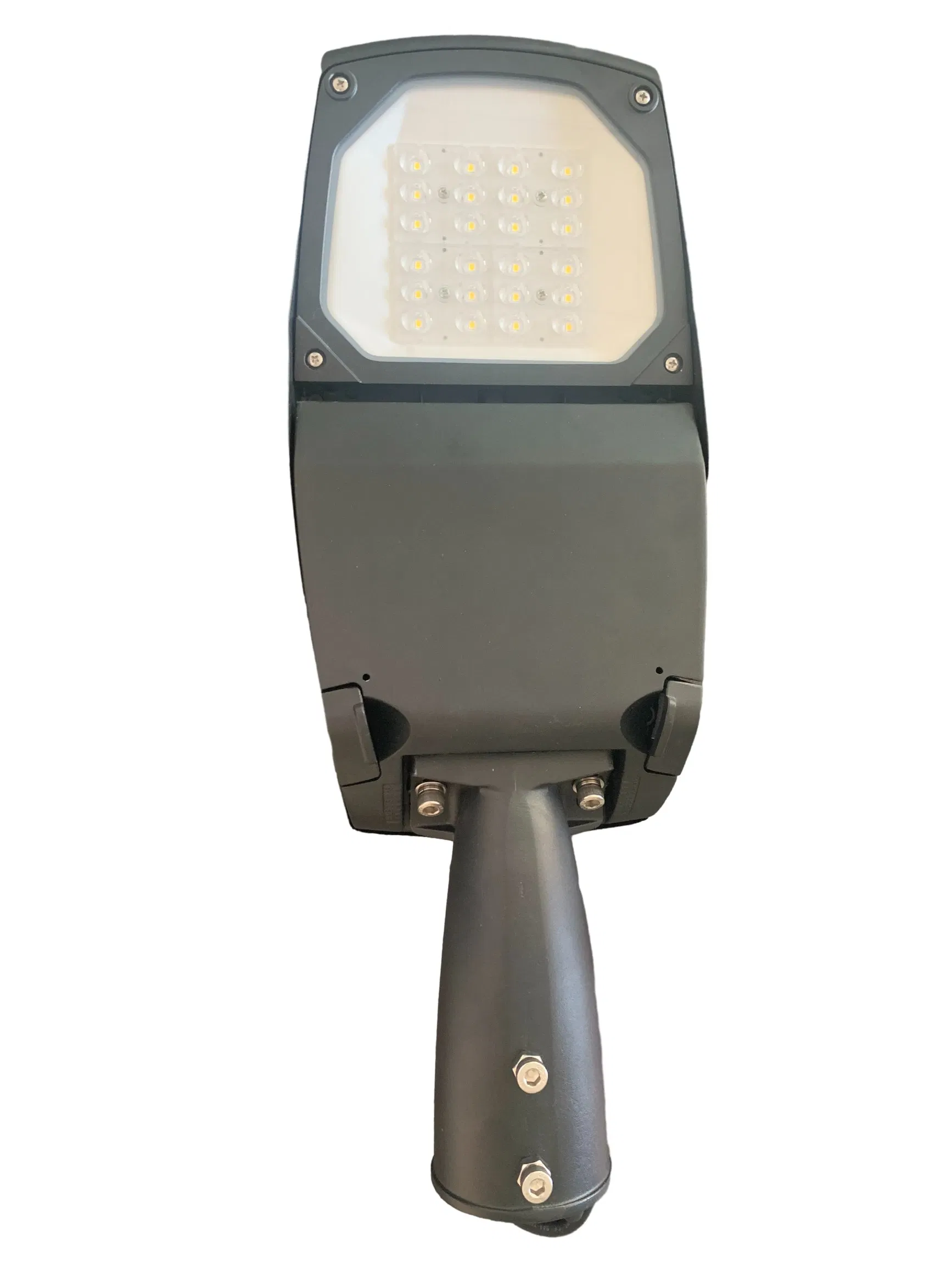

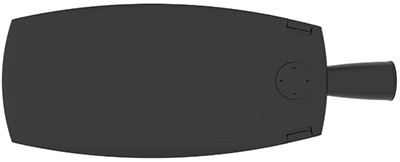

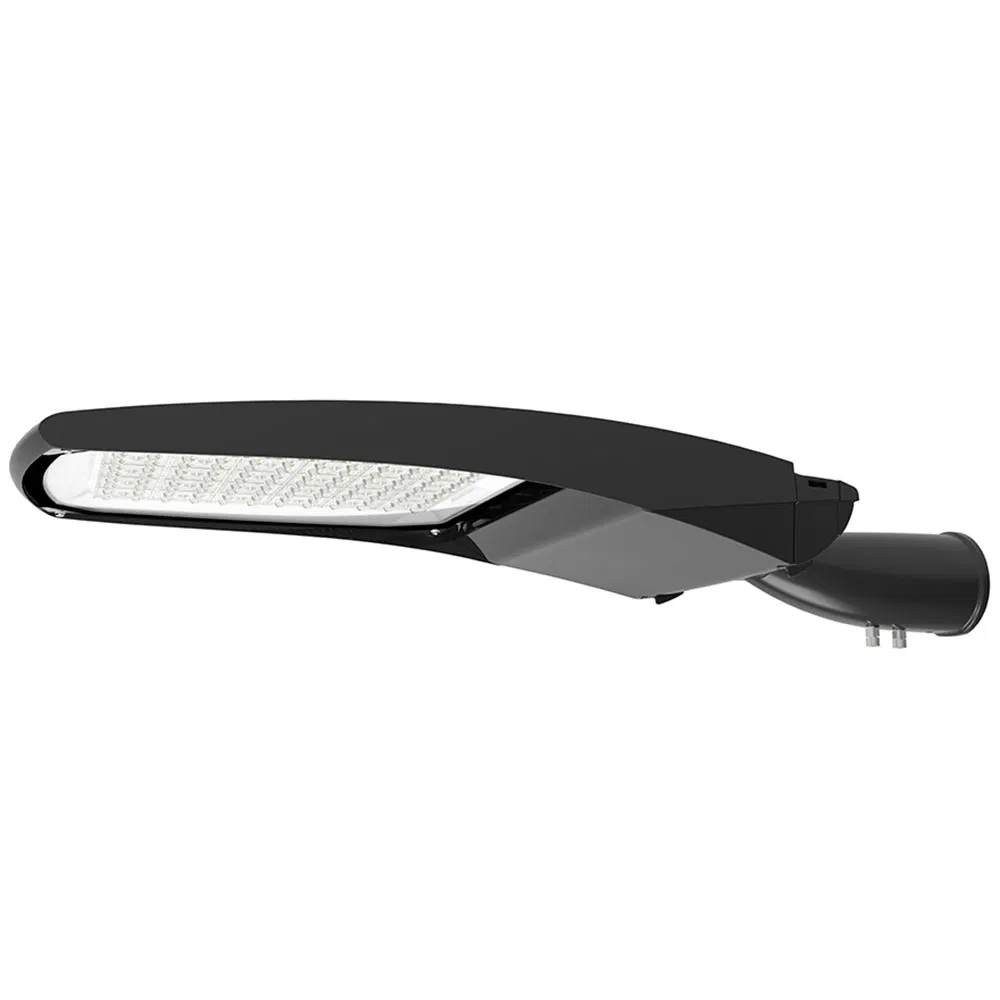

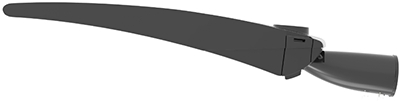

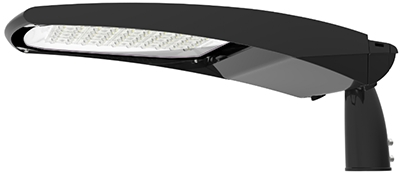

Outside City Smart LED Light with Motion Sensor PARA Luminaria Parking Lotuse Light 100W 150W 200W Waterproof LED Street Light
Outside City Smart LED Light with Motion Sensor PARA Luminaria Parking Lotuse Light 100W 150W 200W Waterproof LED Street Light
Outside City Smart LED Light with Motion Sensor PARA Luminaria Parking Lotuse Light 100W 150W 200W Waterproof LED Street Light
Outside City Smart LED Light with Motion Sensor PARA Luminaria Parking Lotuse Light 100W 150W 200W Waterproof LED Street Light
Outside City Smart LED Light with Motion Sensor PARA Luminaria Parking Lotuse Light 100W 150W 200W Waterproof LED Street Light
1 / 5
Outside City Smart LED Light with Motion Sensor PARA Luminaria Parking Lotuse Light 100W 150W 200W Waterproof LED Street Light
Outside City Smart LED Light with Motion Sensor PARA Luminaria Parking Lotuse Light 100W 150W 200W Waterproof LED Street Light
Outside City Smart LED Light with Motion Sensor PARA Luminaria Parking Lotuse Light 100W 150W 200W Waterproof LED Street Light
Outside City Smart LED Light with Motion Sensor PARA Luminaria Parking Lotuse Light 100W 150W 200W Waterproof LED Street Light
Outside City Smart LED Light with Motion Sensor PARA Luminaria Parking Lotuse Light 100W 150W 200W Waterproof LED Street Light

Outside City Smart LED Light with Motion Sensor PARA Luminaria Parking Lotuse Light 100W 150W 200W Waterproof LED Street Light

Customization: Available
Light Source: LED Light
Color Temperature(CCT): Warm White
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.
YASL-25
Material
Die Casting Aluminum
Lamp Power
120W
Average Life
50000h
IP Rating
IP66
IK Rating
IK08
Application
Highway, Square, Garden
Certification
CE, RoHS
Voltage
AC 90~305V
Color Options
Grey, Black, Silver
💡

Product Description

High-Performance IP66 IK08 LED Street Light Series (100W-300W)

✨ Premium Efficiency
Delivers 7800-36000 lumens at 130lm/W. Significant energy reduction compared to metal halide.
🔧 Tool-Free Maintenance
Designed with tool-free access for quick maintenance. Adjustable installation angle from -15° to +15°.
🛡️ Extreme Durability
IP66 waterproof and IK08 impact rated. Tested with 1000 hours salt spray for coastal environments.
LED Street Light Certification

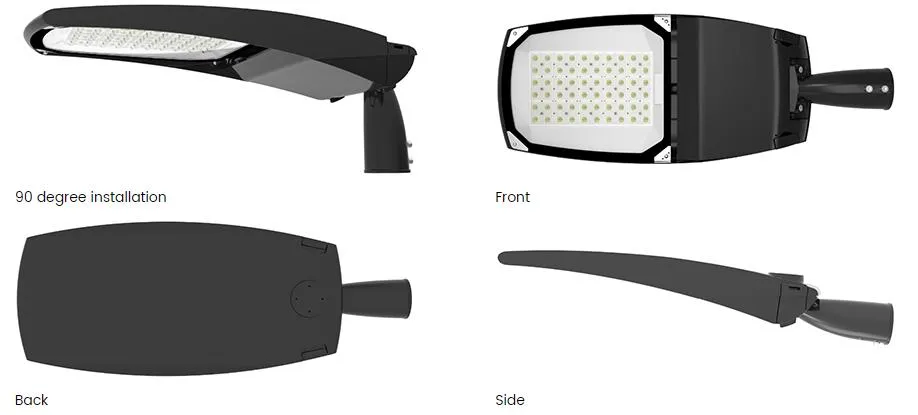

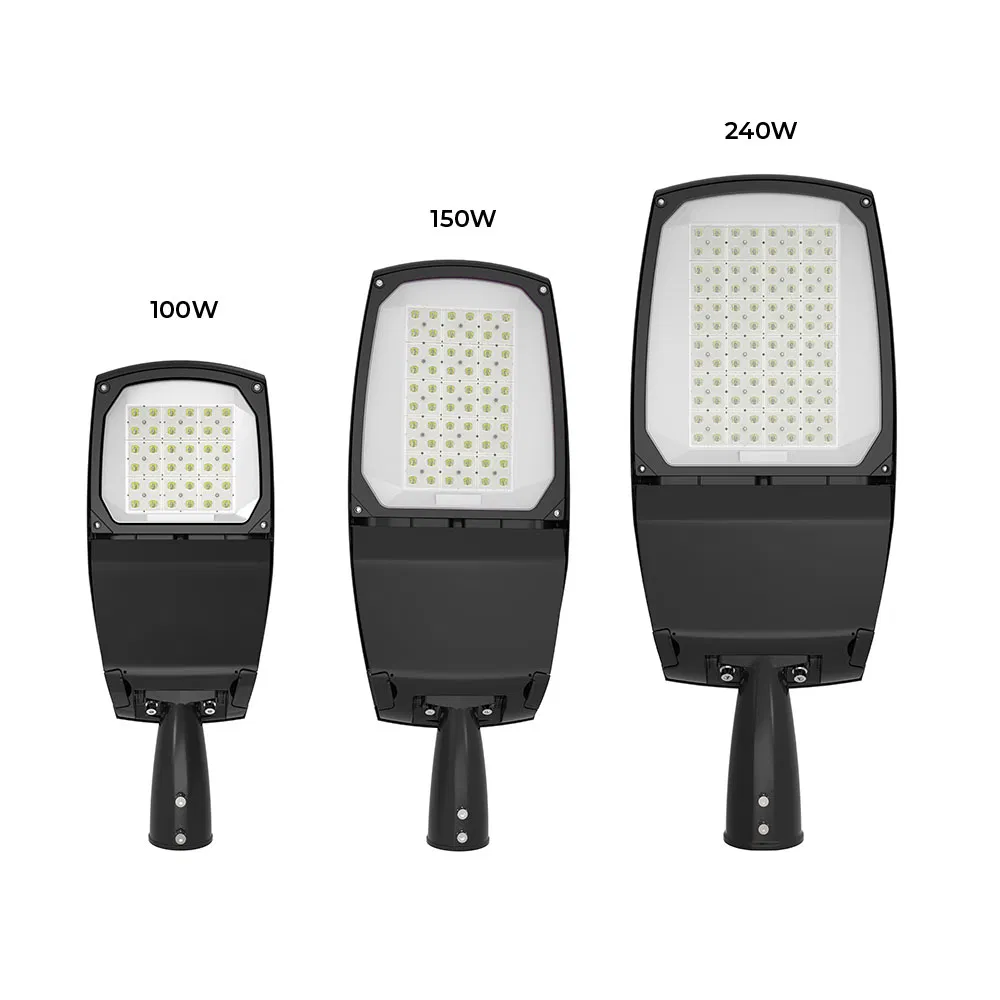

LED Street Light Main View
⚙️

Technical Parameters

Product Code Wattage Luminous Flux Installation Height Net Weight Packing Size (mm)

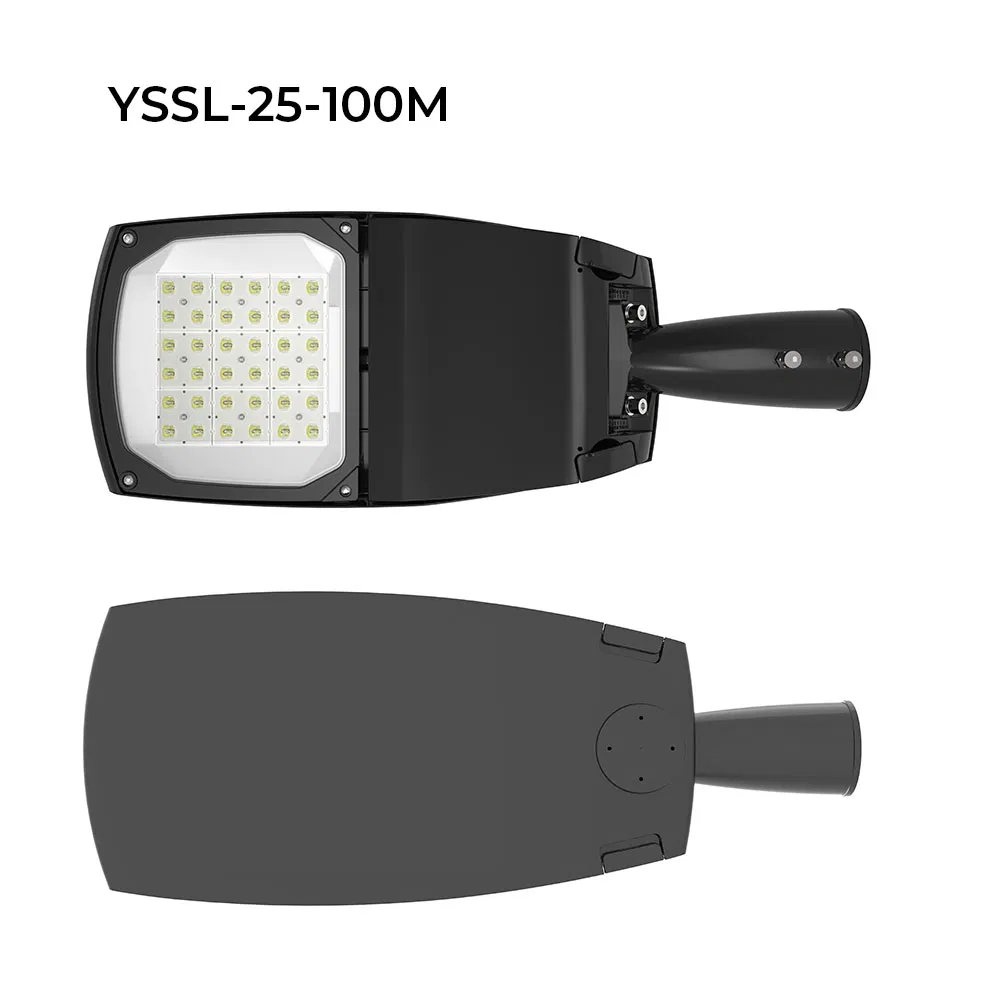

YSSL-25-100M60W / 100W7800-15000lm4-10m3.8kg680*270*160

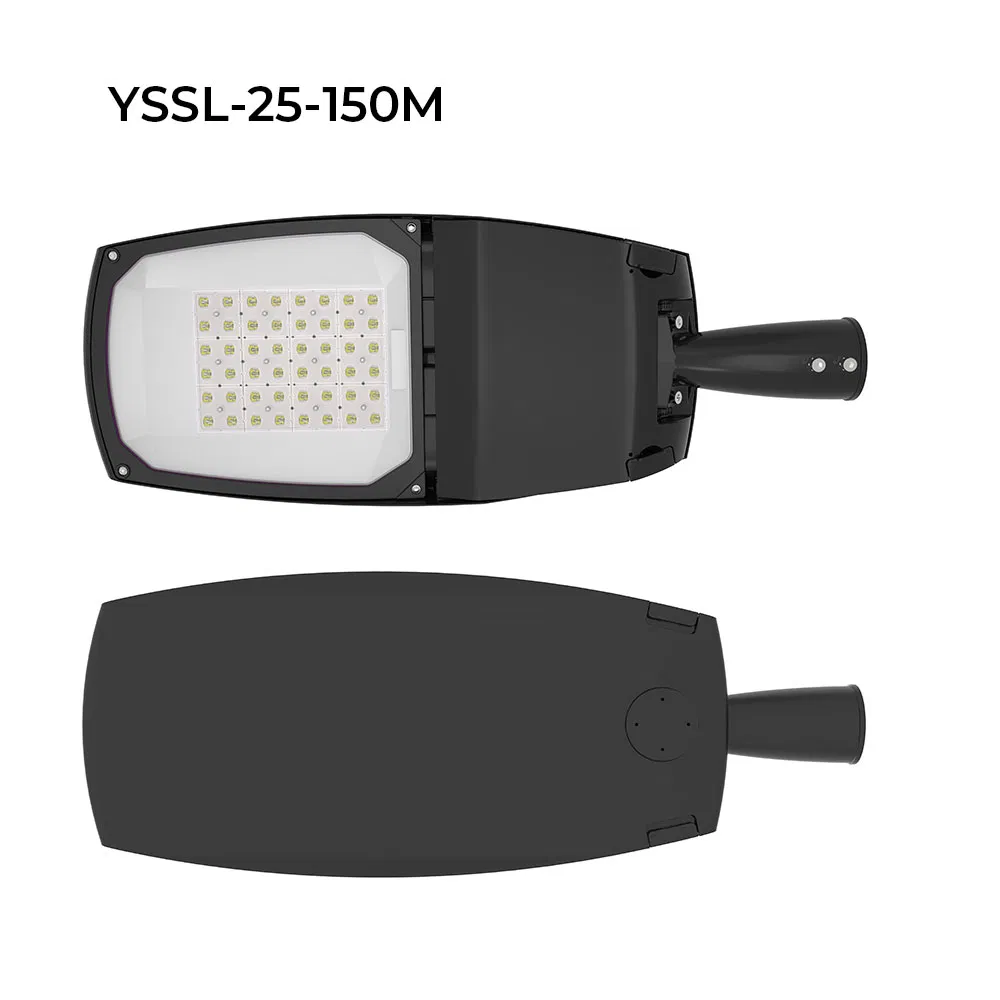

YSSL-25-150M120W / 150W15600-22500lm8-12m5.7kg820*320*160
YSSL-25-240M200W / 240W26000-36000lm10-14m7.2kg920*370*180
🛠️

Physical & Thermal Requirements

  • 🔹 Housing: Heavy-duty rugged pressure die-cast aluminium alloy
  • 🔹 Cover: High-strength Tempered Glass
  • 🔹 Ambient Temp: -40°C to 55°C operation range
  • 🔹 Surge Protection: Standard 10KV protection
  • 🔹 Optics: UV-stabilized PC material, Type I/II/III/IV distributions

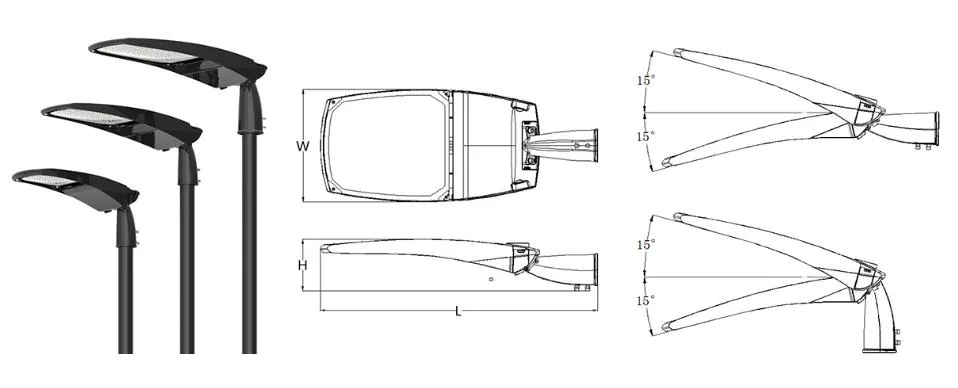

Product Size Dimensions
Application Scenario 1
Application Scenario 2
🏢

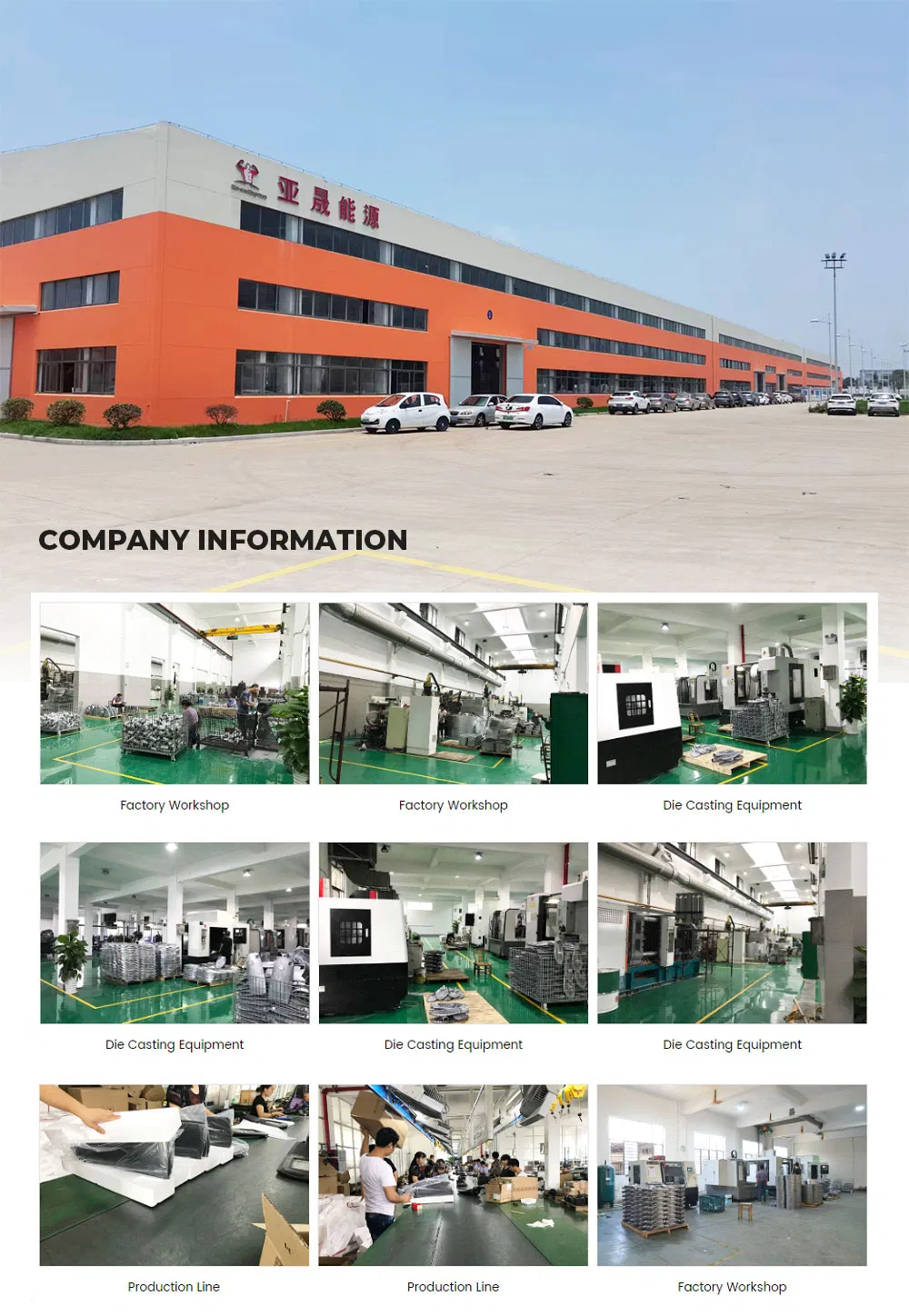

Production Excellence

Our facility specializes in lighting design, development, and rigorous testing. We provide a full range of services including street lighting solutions, high bay fixtures, and precision die-casting OEM services. All products undergo strict performance testing in recognized laboratories to ensure compliance with global standards.

Production Facility 1

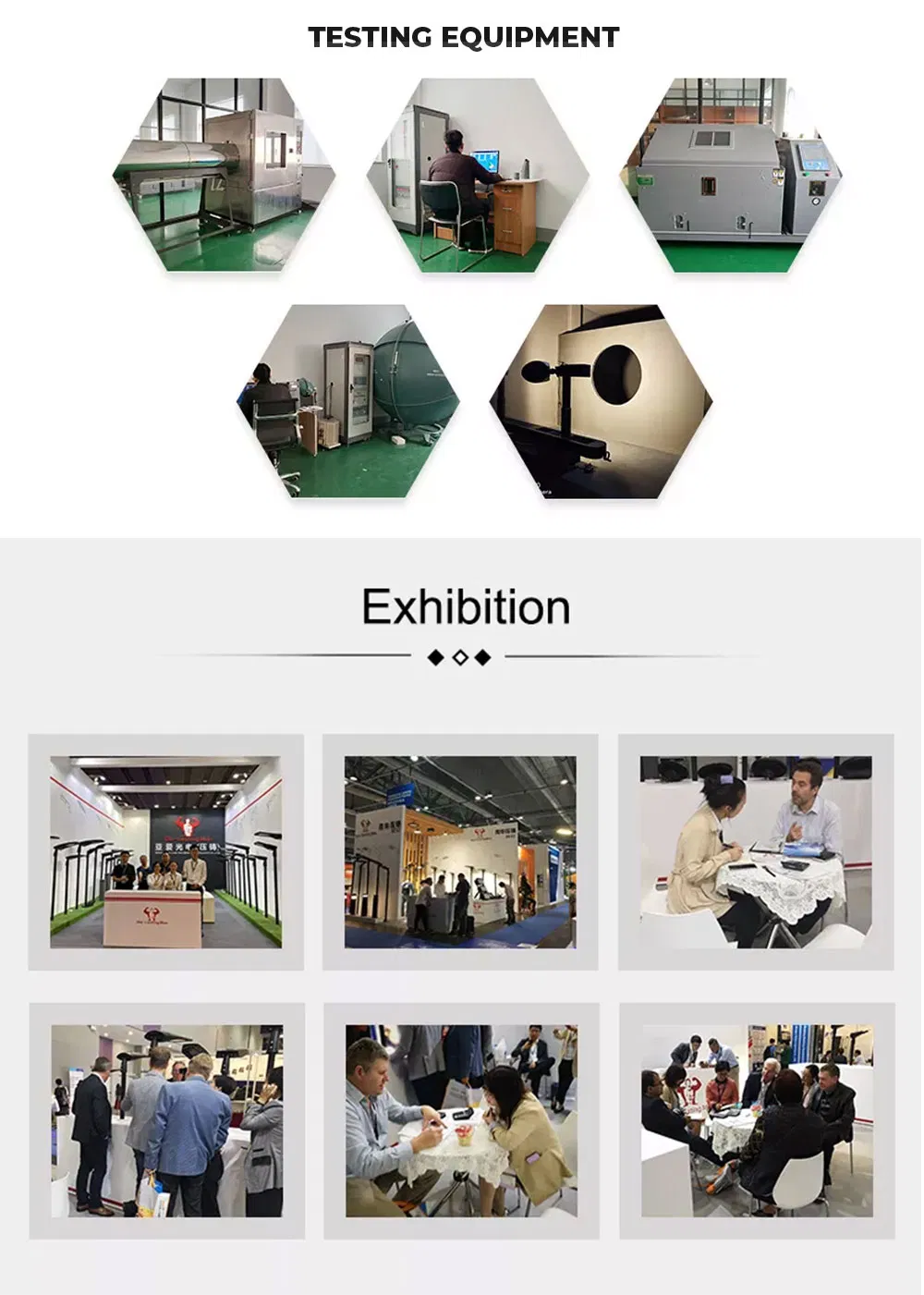

Testing Lab
Warehouse
❓

Frequently Asked Questions

What is the Minimum Order Quantity (MOQ)?
We accept 1-5 pieces for samples and 100 pieces for mass production. Small quantities are acceptable for your first trial order.
Which LED chips and drivers do you use?
We can utilize specific LED chips and driver brands based on your project requirements to ensure compatibility and performance.
What is the warranty period for your products?
We offer a 5-year guarantee with a rated lifespan of 50,000 hours for our street lighting products.
Can I customize the logo on the fixture?
Yes. Options include screen printing (no MOQ) or die-casting the logo directly onto the housing (MOQ 1000 pieces).
How do you ensure the quality of mass production?
We always provide a pre-production sample before mass production and conduct a final inspection before every shipment.
Do your fixtures pass surge and harmonic tests?
Yes, our fixtures meet surge protection requirements (standard 10KV) and comply with New EPR and Harmonics standards.
